Product Description

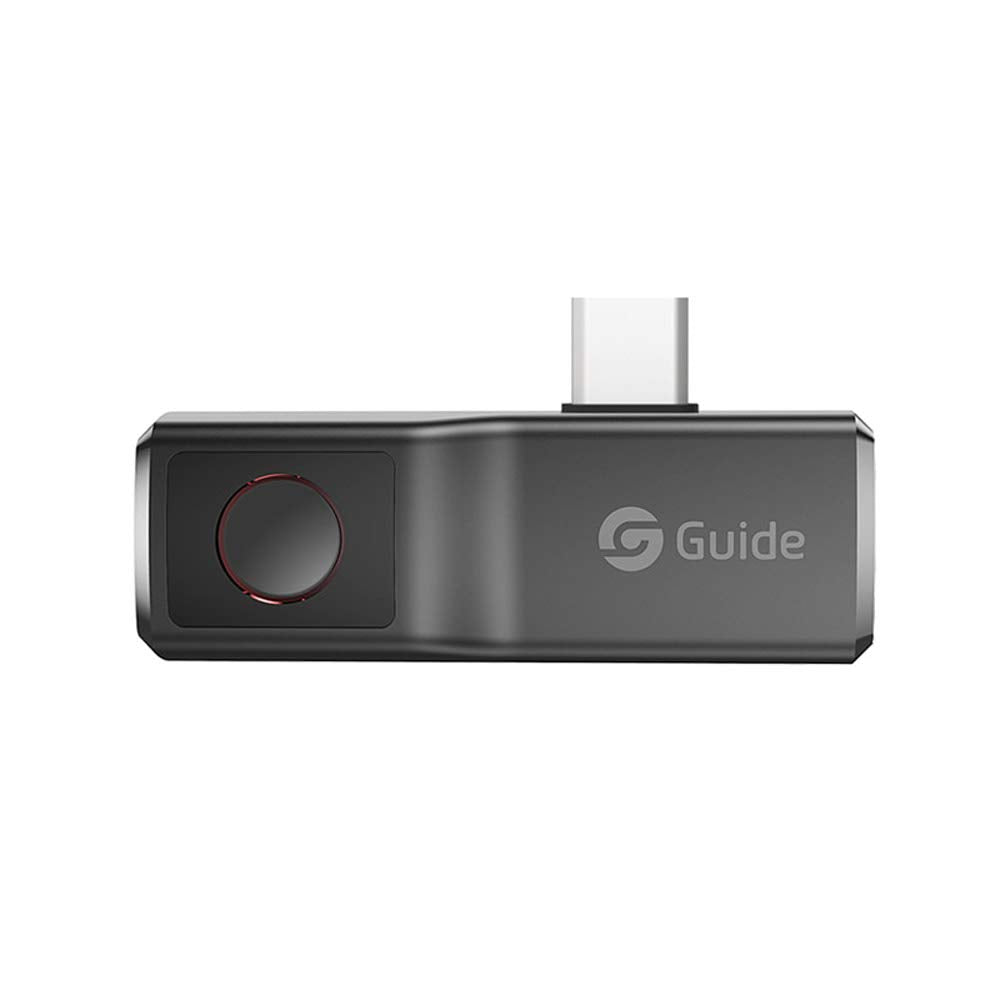

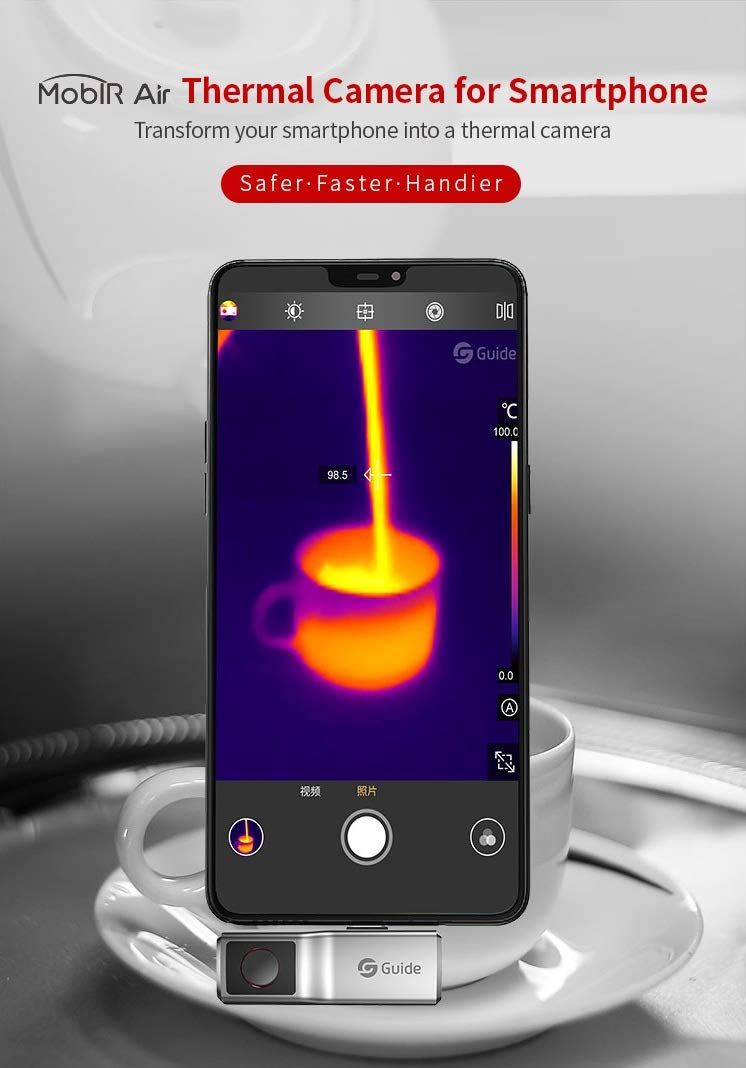

MobIR Air Thermal Imaging Camera for Smartphone Type-C Android/iOS (Type-C for Android)
The Guide MobIR Air turns your smartphone (Android or iOS) into a handheld thermal imaging device perfect for detecting electrical faults, insulation problems, water ingress, etc. Requires a dedicated App to function with smartphones, which offers multiple on-board thermography tools and useful functions.
Features:
- Easy to use
- Fast captured data sharing
- Anodised aluminium body
- Built-In glass lens protector
- Android & iOS options
- Dedicated App
- Multiple colour palettes
- Settings controls
- Plug & Play design

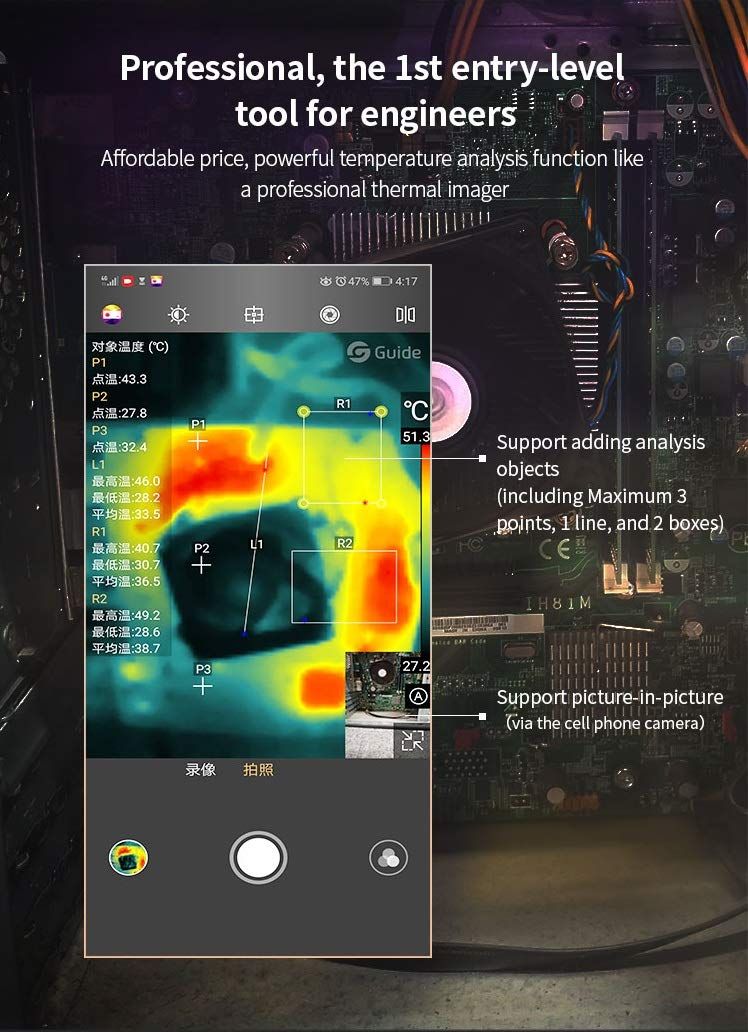

- Thermography tools
- Analysis tools
- Full-colour palette control
- Picture-in-Picture mode
- No battery required (Powered by smartphone)
- Low power consumption
- Smooth frame rate
Specifications

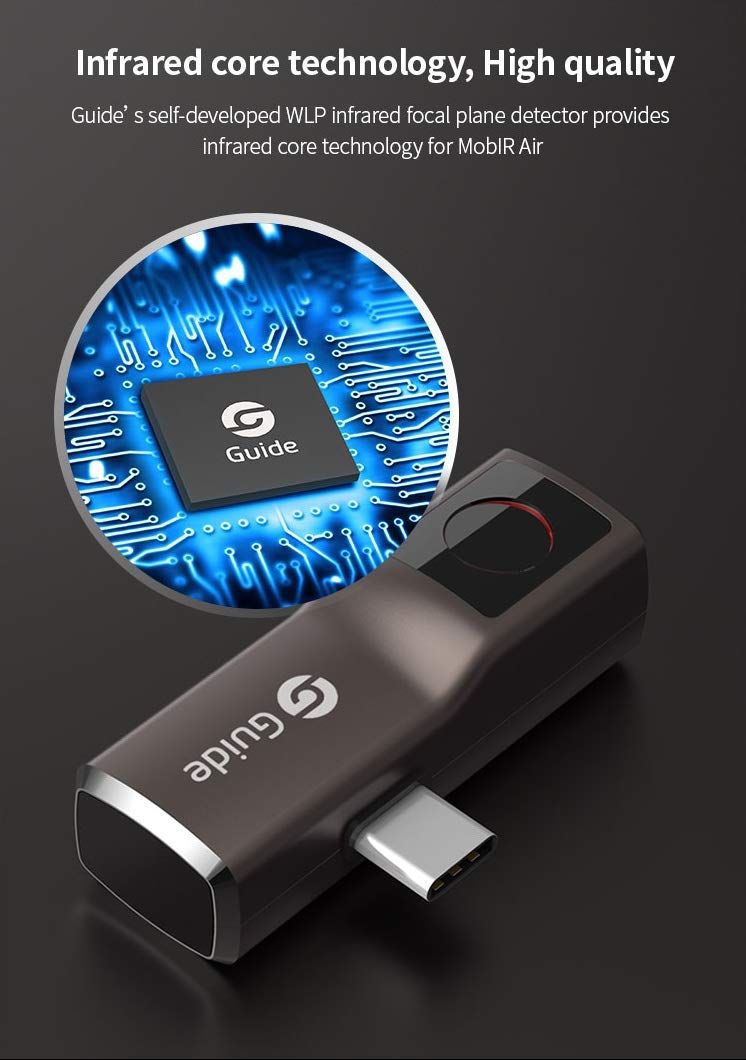

- Thermal Sensor: 120x90 17µm
- Field of View: 50°
- Power Consumption: <150mW
- Interface: iOS: Lightning/ Android: USB Type-C
- Normal Work Temp: 0℃ to 35℃
- Optimum Work Temp: 16℃ to 22℃
- Accuracy: ±3℃ (Ambient temp. is 10℃ to 26℃)
- Storage Temp: -10℃ to 55℃ (relevant humidity is 5%-55% under non-condensing state)
- Working Height: 3000m (10,000ft)
- Weight: 20g
- Dimensions: 50x14x18mm
