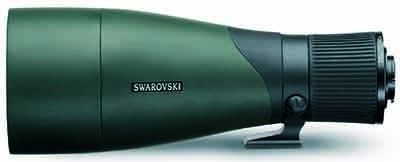

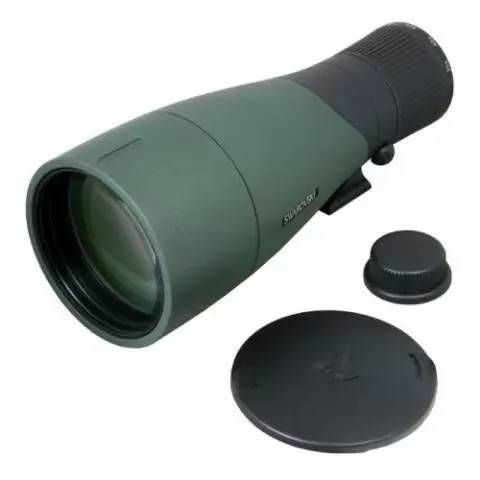

Swarovski 95mm Objective Module Only for the ATX / STX / BTX spotting scope system

Swarovski 95mm Objective Module – For ATX / STX / BTX Spotting Scope System

Ultimate Optical Power with Modular Flexibility

The Swarovski 95mm Objective Module is the most powerful objective in the modular ATX / STX / BTX spotting scope system, delivering breathtaking detail, unparalleled clarity, and exceptional light transmission across a wide zoom range. Designed for professionals and serious wildlife observers, this module pushes the limits of what’s possible in nature observation, offering 30–70x magnification and incredible edge-to-edge sharpness, even in low light.

Paired with a compatible eyepiece module (sold separately), this objective lens becomes a powerhouse for birding, digiscoping, long-range observation, and field research. The combination of fluoride-containing HD lenses, field flattener optics, and ergonomic design ensures you never miss a moment – no matter how distant or fleeting.

Please note: This product includes the objective module only. An eyepiece module is required for use and sold separately.

Key Features of the Swarovski 95mm Objective Module

High-Powered Magnification with Unmatched Clarity

• Offers 30–70x magnification when paired with ATX or STX eyepiece modules.

• 95 mm effective objective lens diameter ensures superb brightness, resolution, and contrast – ideal for twilight and dawn viewing.

• Perfect for long-range viewing of birds, mammals, and distant landscapes with no compromise in detail.

SWAROVISION Technology for Perfect Images

• Field flattener lenses create a flat, distortion-free image from edge to edge, eliminating the need for constant refocusing.

• Fluoride-containing HD lenses reduce chromatic aberration, providing true-to-life colours and razor-sharp detail.

• Enhanced SWARODUR and SWAROTOP coatings deliver outstanding colour fidelity and maximise light transmission (86% total product).

Modular Flexibility for Field and Travel

• Fully compatible with ATX, STX, and BTX eyepiece modules – swap components to suit any viewing scenario.

• Modular build allows for easy packing and transport – ideal for remote fieldwork or international travel.

• Precision engineering and tight tolerances ensure seamless integration across the system.

Built for Professionals and Demanding Conditions

• Rugged and waterproof to 4 metres (13 feet) with nitrogen-filled internal protection.

• Designed for extreme temperatures ranging from -25 °C to +55 °C (-13 °F to +131 °F).

• Non-stick SWAROCLEAN lens coating repels water, dirt, and oils for easier maintenance in the field.

Spectacle Wearer Friendly

• 20 mm of eye relief and adjustable twist-in eyecups make viewing comfortable for all users, including those who wear glasses.

• Delivers a wide field of view without sacrificing comfort or edge sharpness.

Technical Specifications

• Magnification: 30–70x (with ATX/STX eyepiece module)

• Objective Lens Diameter: 95 mm

• Exit Pupil Diameter: 3.2–1.4 mm

• Eye Relief: 20 mm

• Field of View at 1,000 m: 35–19 m (104–57 ft)

• Field of View (degrees): 1.98–1.09°

• Apparent Field of View: 57–71°

• Shortest Focusing Distance: 4.8 m (15.7 ft)

• Diopter Correction: > 5 dpt

• Light Transmission: 86%

• Objective Filter Thread: M 97 x 0.75

• Length: 426 mm (16.8 in)

• Weight: 2,150 g (75.8 oz)

• Focal Length with TLS APO Adapter: 900–2100 mm

• Functional Temperature Range: -25 °C to +55 °C (-13 °F to +131 °F)

• Storage Temperature Range: -30 °C to +70 °C (-22 °F to +158 °F)

• Waterproof Depth: 4 m (13 ft), nitrogen-filled

Why Choose the Swarovski 95mm Objective Module?

For those who refuse to compromise on optical quality or versatility, the Swarovski 95mm Objective Module delivers unmatched performance in the field. Its precision optics, innovative modular design, and robust construction make it a vital tool for serious wildlife observation, digiscoping, and professional nature work. Whether you're scanning distant cliffs or tracking elusive species across vast landscapes, this is the objective that brings the world closer than ever before.
