Product Description

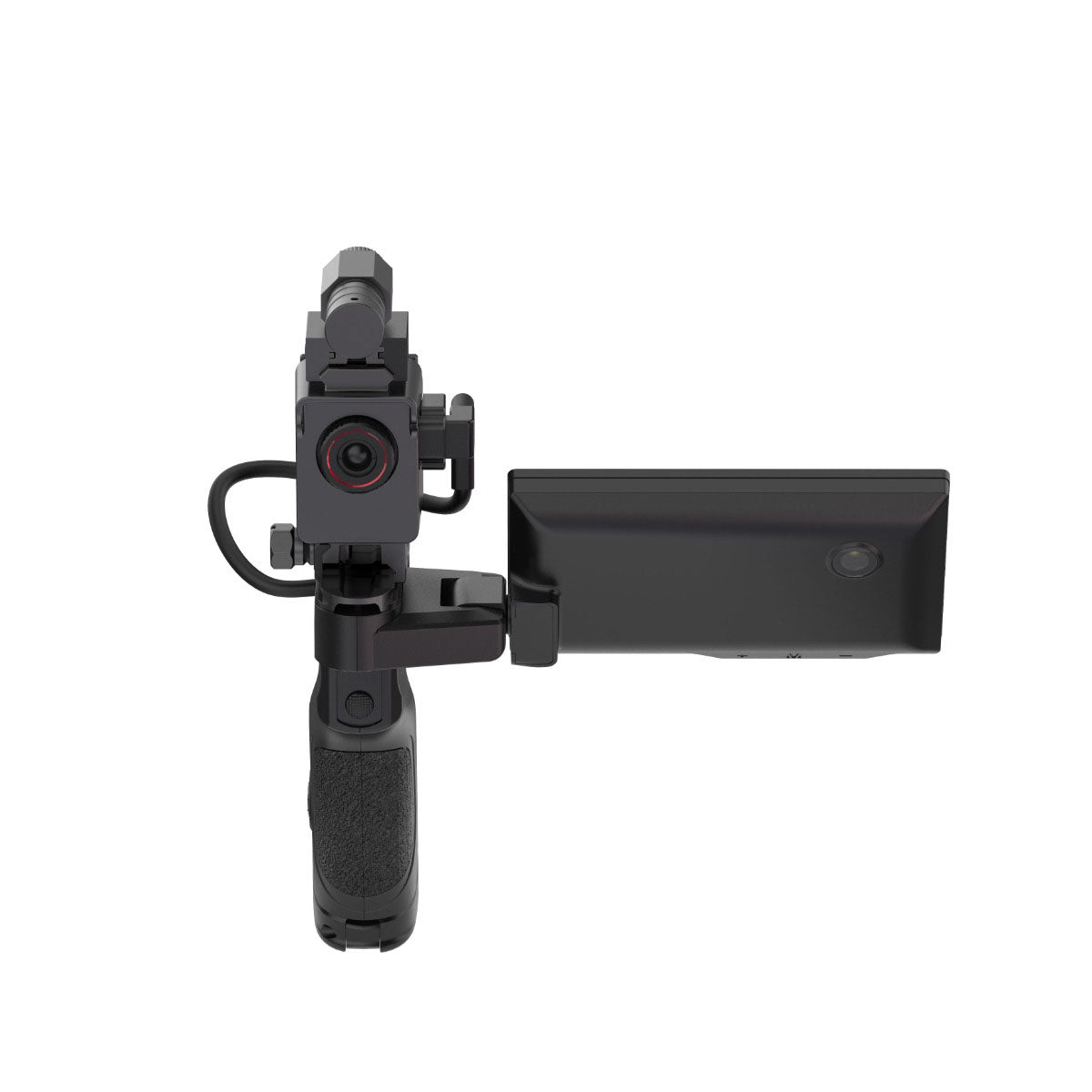

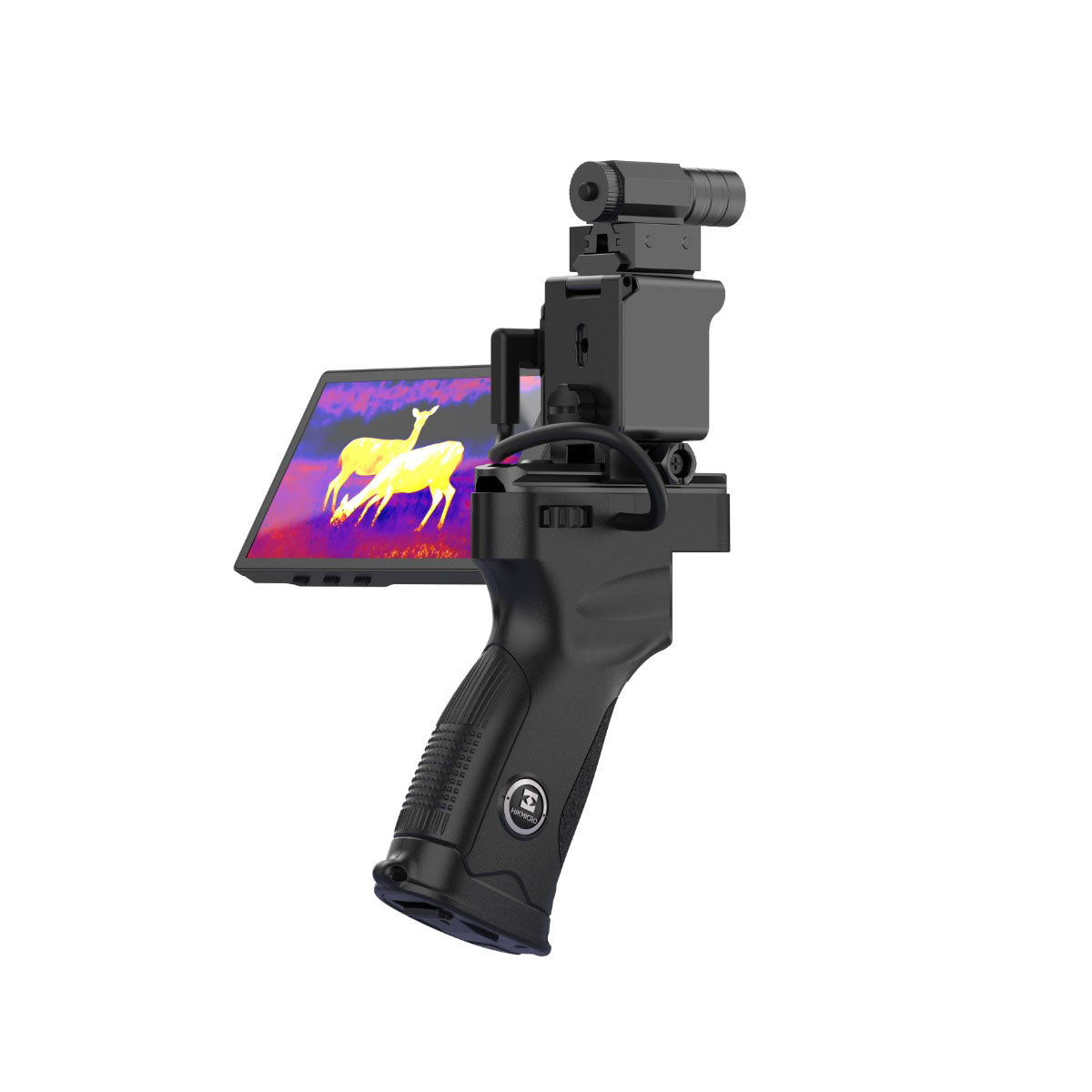

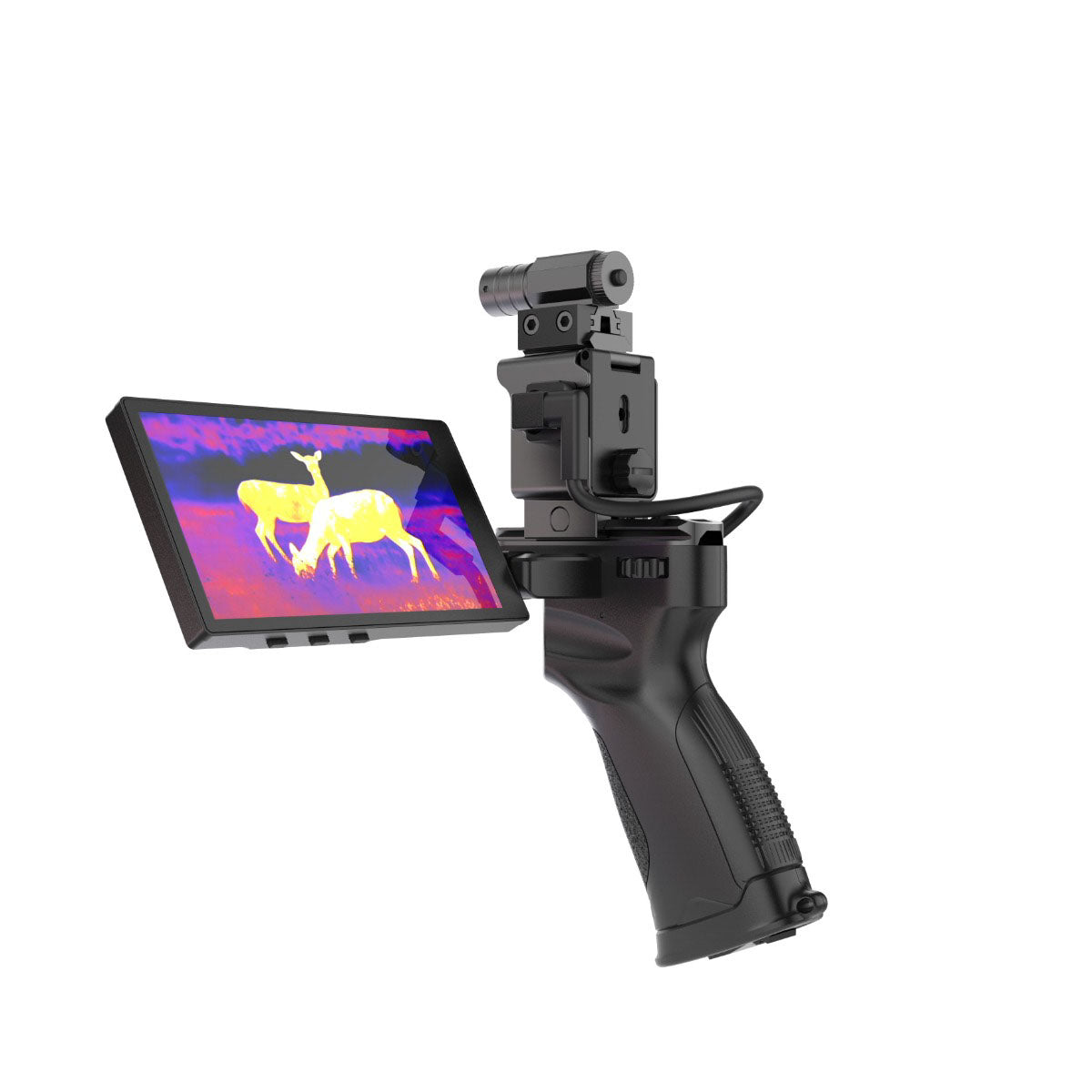

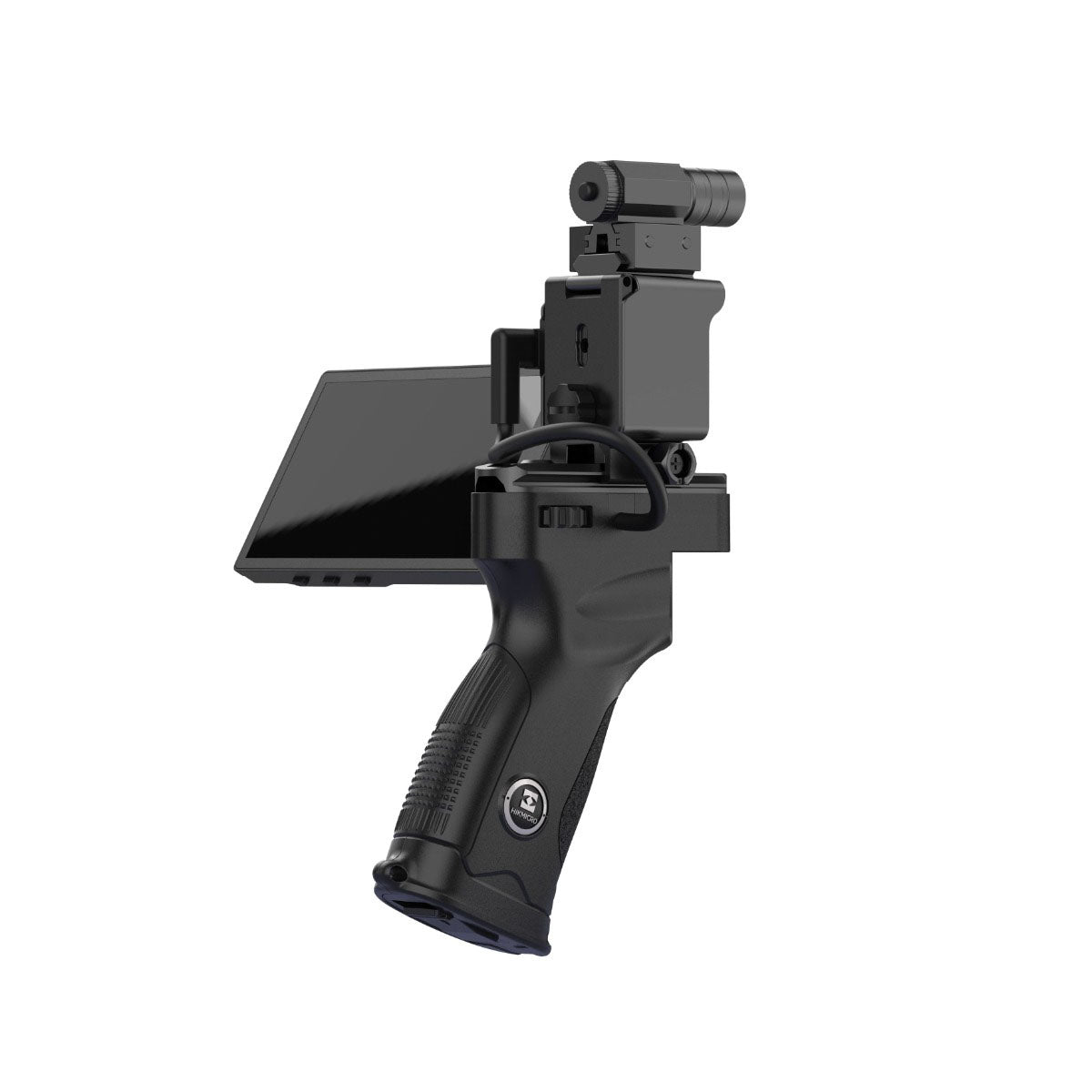

HIKMICRO HS17P Handheld Touchscreen for Thermal Monocular
Expand Your Vision. Control with Ease.
The HIKMICRO HS17P Handheld Touchscreen is a powerful, multifunctional accessory designed to enhance your thermal monocular experience. Combining an extended 5-inch HD touchscreen display, intuitive control interface, and integrated power supply, it transforms the way you observe, record, and manage your field operations.
🖥️ 5-Inch HD Touch Display for Enhanced Viewing
Enjoy a clear, immersive visual experience with the 5-inch 1280×720 HD LCD screen, which extends the eyepiece view of your thermal monocular. The touch-enabled interface provides direct access to image settings, palettes, and brightness controls — making field adjustments fast and effortless.
⚡ Integrated Power and Charging
Powered by two 18650 rechargeable batteries, the HS17P not only keeps your screen running for extended sessions but can also supply reverse power to your connected monocular. With low power consumption (less than 2.5W standalone, <10W with monocular), it ensures long-lasting, efficient operation in the field.
🔧 Smart, Practical Functionality
Designed for convenience, the HS17P allows real-time parameter configuration, palette switching, and on-screen optimisation without interrupting your observation workflow. This intuitive system enhances productivity, precision, and user comfort during outdoor exploration and professional applications.
🧭 Built Tough for Outdoor Use
With a durable build and a -30°C to +55°C operating range, the HS17P performs reliably in all weather conditions. Lightweight at 324g (without battery), it’s compact and portable — ready for any field mission or observation task.
Key Features
-
5-inch 1280×720 HD LCD touchscreen for extended viewing
-
Touch control interface for intuitive operation
-
Dual 18650 battery power with reverse charging function
-
Adjustable brightness and colour palettes
-
Type-C 720p HD display port for quick connection
-
Low power consumption – <2.5W (standalone)
-
Rugged design for reliable outdoor performance
-
Lightweight (324g) and compact form factor
-
Operating temperature: -30°C to +55°C
Specifications
| Specification | Details |
|---|---|
| Display | 5-inch 1280×720 HD LCD |
| Power Source | 2 × 18650 batteries |
| Power Consumption | <2.5W (screen only), <10W (with monocular) |
| Dimensions | 185.1 × 147.9 × 162.2 mm |
| Weight | 324g (without battery) |
| Port | Type-C 720p HD display |
| Operating Temperature | -30°C to +55°C |
Peace of Mind Support
Enjoy 3 years of HIKMICRO warranty coverage and UK-based service and technical support, ensuring fast, professional assistance whenever you need it.
The HIKMICRO HS17P Handheld Touchscreen — precision viewing, smart control, and power management in one advanced companion for your thermal monocular.
