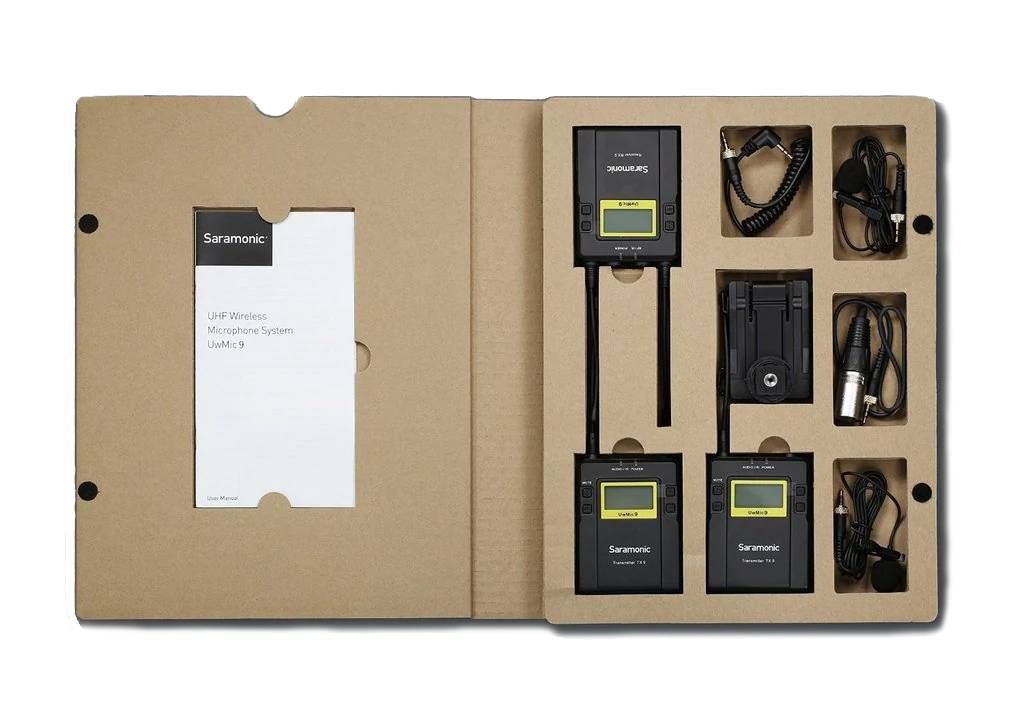

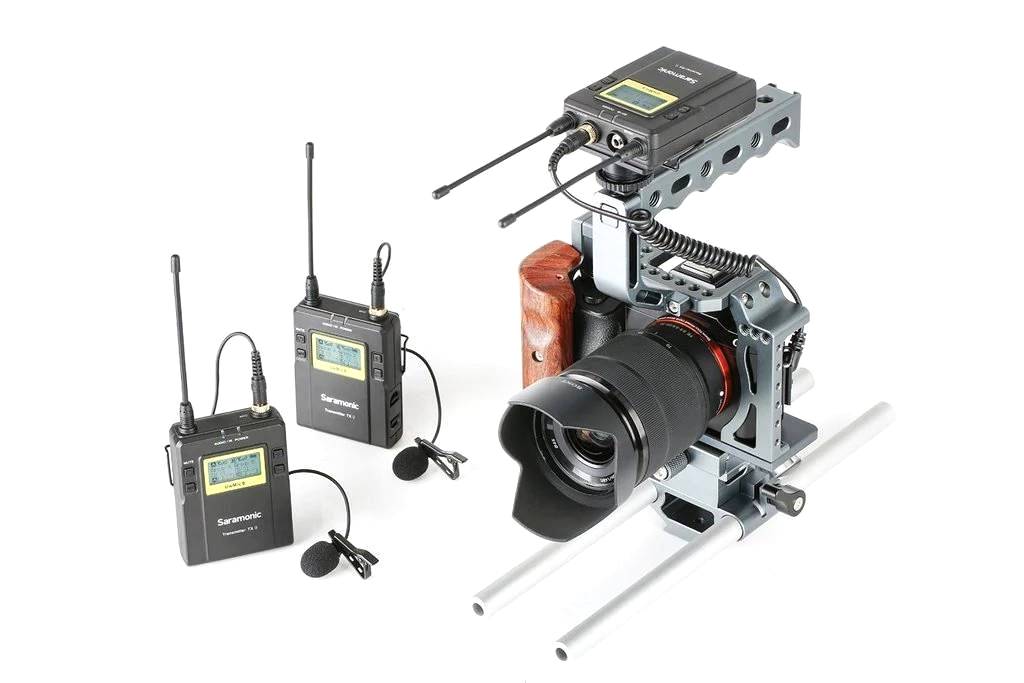

UHF Wireless Lavalier Microphone System
The system includes a camera-mountable, wireless receiver, 2 wireless body-pack transmitters and 2 clip-on lavalier mics. This system provides stable, interference free audio in portable, compact and low cost package. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
Key Features:
Reliable, broadcast-quality audio
2X Wireless transmitters with lavalier microphone
UHF Frequency Range: 514 MHz - 596 MHz; 96 selectable channels in 2 groups
Operating Range: Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
Easy-to-read LCD displays
Receiver
The Saramonic UwMic9-RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
Transmitter (x2)
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
UwMic9 UHF Wireless System
The key unique feature of the Saramonic UwMic9 UHF Wireless System lineup is that the RX9 receiver can receive two (2) simultaneous channels of wireless transmission and then can output them either as single discrete L&R channels or mix them both to a single channel output.
This means that depending on the UwMic9 system chosen, you can have either two (2) transmitters at the outset creating a two channel system or just a single (1) transmitter for single channel system. You can then add a second transmitter at a later time, if you so wish.
UwMic 9 UHF Series
Professional UHF Wireless Mic systems
Unique Dual Channel Transmitter Operation – supports up to 2 transmitters simultaneously = Host & Guest
Get a dual kit, or start out with the single kit and add a second transmitter later when required.
Receiver is ready to accept signals from two transmitters simultaneously
Broad 96 channel selection
High transmission signal power
Ideal for multichannel & longer distance setups
Options for Hand held Mic, Plug on mic transmitter, or plug in camera receiver
Operates with AA type batteries
Perfect for:
Presentations & training
Live events
Staging and Theatre
Professional and Broadcast video/cinema production
Product Specifications
UWMIC9
Channels 96
Groups A and B
Oscillator type PLL synthesizer
Output 3.5mm mini jack
Antenna 1/4 wire antenna
Audio output level -60 dBV
Headphone output level 30mW (16 ohm)
Frequency Range 514 MHz - 596 MHz
Sensitivity -95 dBm
Signal to noise ratio 70 dB or more
Voice delay 12 ms
Reference deviation +/- 5 kHz
Frequency response 40 Hz to 18 kHz (+/- 3dB)
Distortion 0.5% or less
Spur suppression -60 dB
Battery 2 AA size batteries
