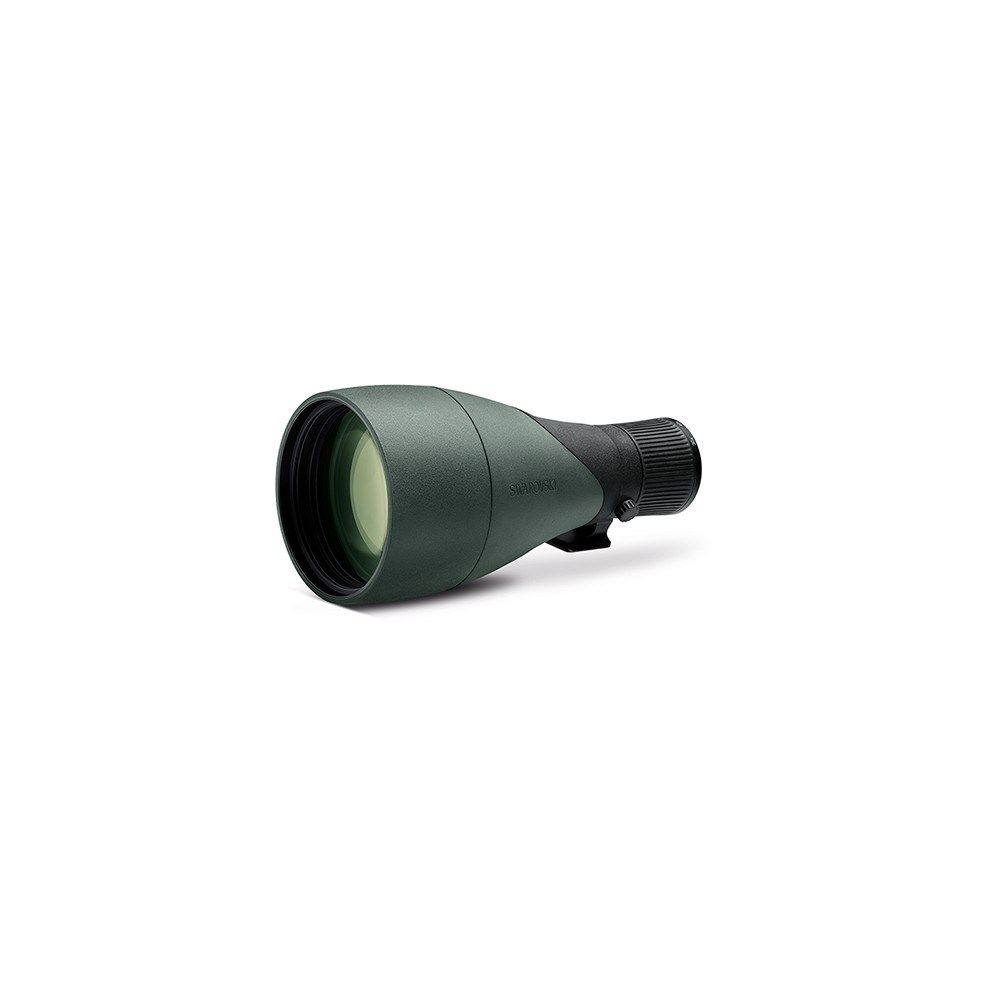

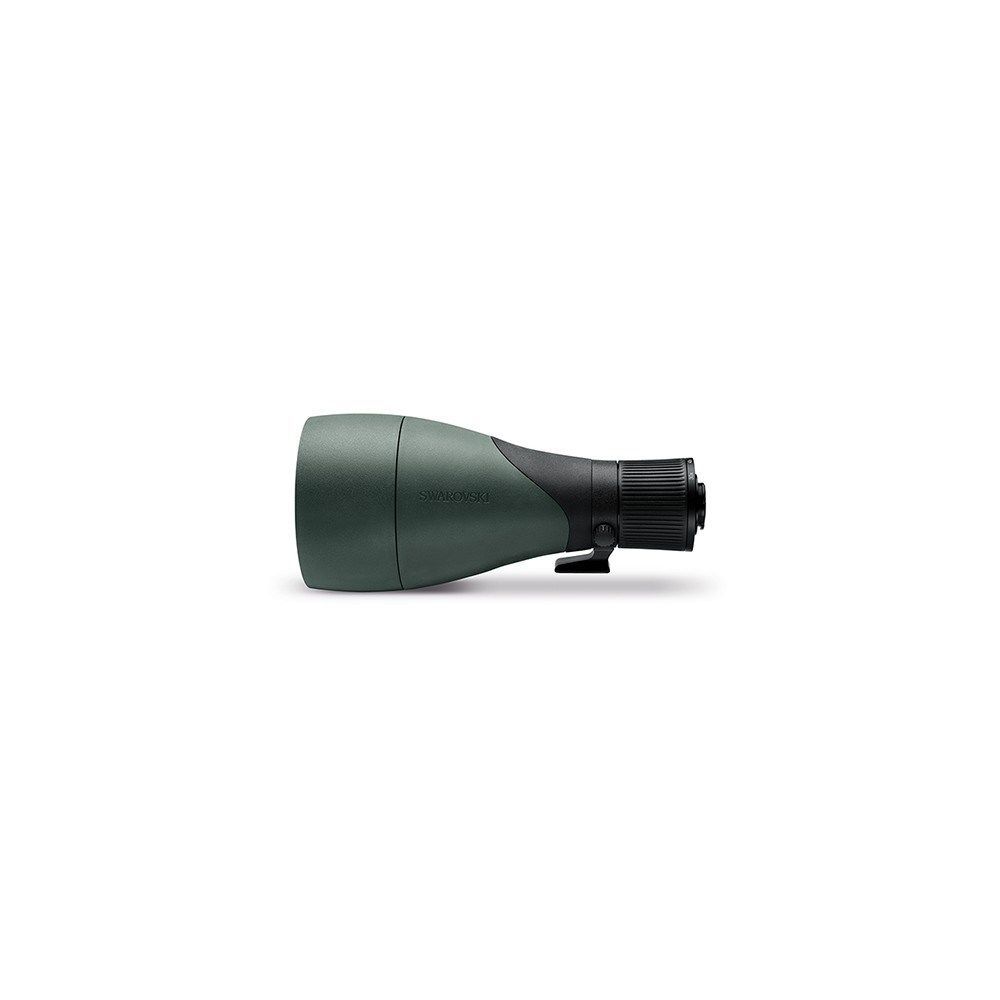

Swarovski 115mm Objective Module 30-70X For Spotting Scope

Swarovski ATX 115mm Objective Module – 30–70x

The New Standard for Extreme Detail and Optical Excellence

The Swarovski ATX 115mm Objective Module redefines what is possible in the world of spotting scopes. As part of the renowned ATX / STX / BTX modular system, this objective module offers the largest lens size available on the market—delivering breathtaking clarity, brightness, and detail, even in the most challenging light conditions. Designed for professional naturalists, birders, and digiscopers, it ensures that nothing escapes your view, from the softest feather to the faintest movement at the horizon.

Built with SWAROVISION technology, this lens module combines ultimate optical performance with supreme flexibility and ergonomic ease, creating the most versatile and powerful observation system Swarovski has ever produced.

Key Features of the Swarovski ATX 115mm Objective Module

Record-Breaking 115mm Objective Lens

• Largest lens diameter available, offering unprecedented light-gathering ability.

• Ideal for low-light observation at dawn, dusk, or under dense canopy.

SWAROVISION Technology for Exceptional Detail

• Field flattener lenses produce a virtually flat, distortion-free image across the entire field of view.

• Fluoride-containing HD lenses eliminate chromatic aberration, ensuring stunning contrast and natural colour fidelity.

Optimised for Spectacle Wearers

• Eye Relief Plus with individually adjustable, twist-in eyecups ensures full field of view and edge-to-edge clarity, even for glasses wearers.

Enhanced Lens Coatings

• Swarodur and Swarotop coatings maximise light transmission for vibrant, true-to-life images.

• Swaroclean external coatings repel dirt, water, and oils, making maintenance easy even in harsh environments.

Wide Field of View and Seamless Tracking

• Despite its high zoom capabilities (30–70x with appropriate eyepiece module), the ATX 115 maintains a wide, immersive field of view.

• Perfect for tracking moving subjects or scanning vast landscapes without losing focus.

Technical Specifications

• Effective Objective Lens Diameter: 115 mm

• Magnification (with appropriate eyepiece): 30–70x

• Diopter Correction at Infinity: >5 dpt

• Objective Filter Thread: M118 x 0.75

• Length: 307 mm

• Weight: 2,100 g

• Submersion Tightness: Up to 4 metres (13 ft) depth, nitrogen-filled

• Functional Temperature Range: -25 °C to +55 °C (-13 °F to +131 °F)

• Storage Temperature Range: -30 °C to +70 °C (-22 °F to +158 °F)

Designed for Total Flexibility

Modular System Innovation

• Easily compatible with ATX, STX, and BTX eyepiece modules.

• Modular design allows for safe transport, quick set-up, and customisation based on field needs.

One-Handed Operation

• Intuitive placement of the zoom and focus rings side-by-side allows precise, rapid adjustments with a single hand—essential for tracking fast-moving wildlife or capturing fleeting moments through digiscoping.

Ready for Digiscoping

• Works seamlessly with Swarovski’s range of digiscoping adapters, enabling stunning telephoto-quality photography and videography directly through your spotting scope.

Why Choose the Swarovski ATX 115mm Objective Module?

For those who demand the very best in clarity, brightness, and field flexibility, the Swarovski ATX 115mm Objective Module is the definitive choice. Whether you're observing at first light, documenting elusive species, or capturing professional-grade images, this objective module opens new horizons in natural observation and optical performance.

See further, see clearer, and experience every detail with the Swarovski ATX 115mm.
