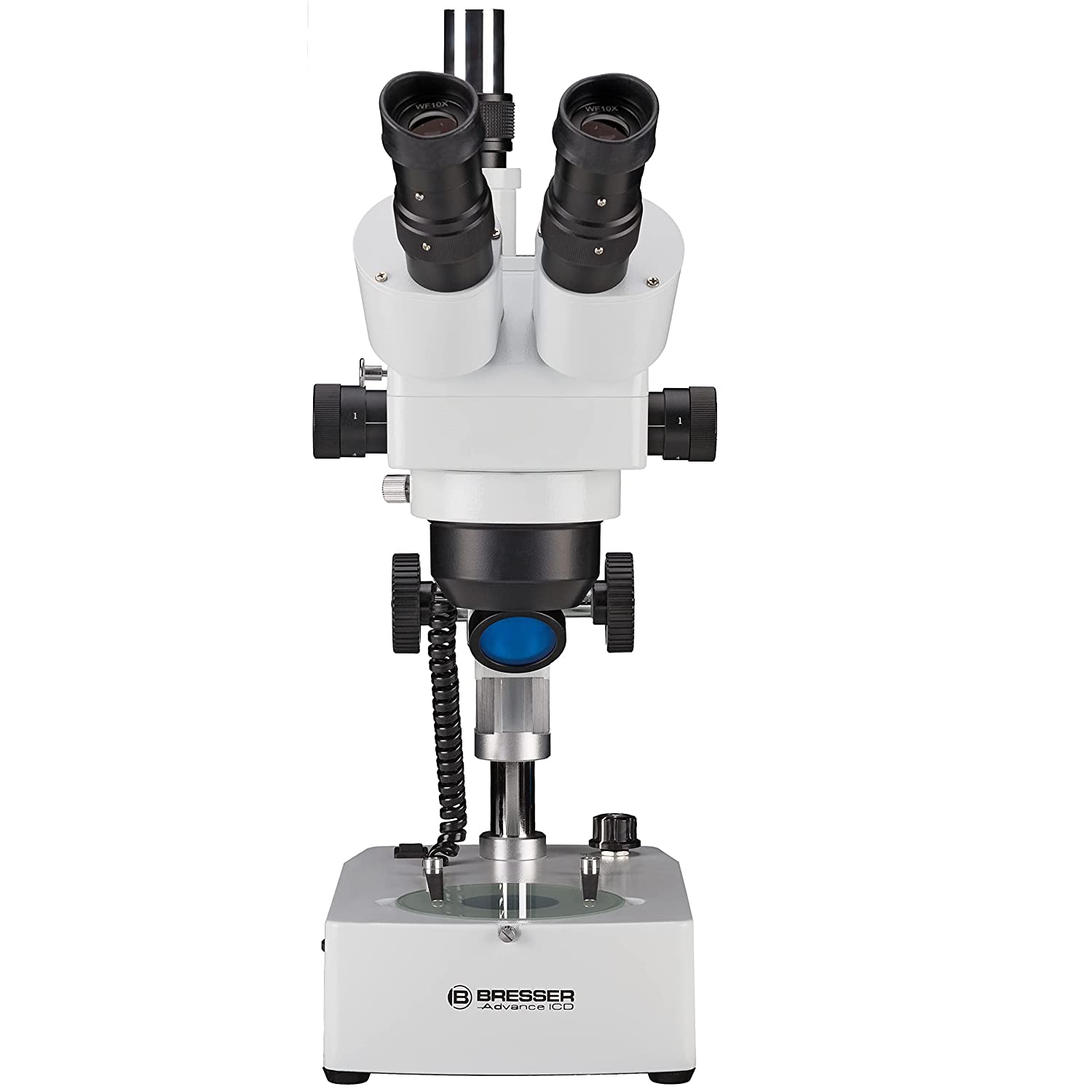

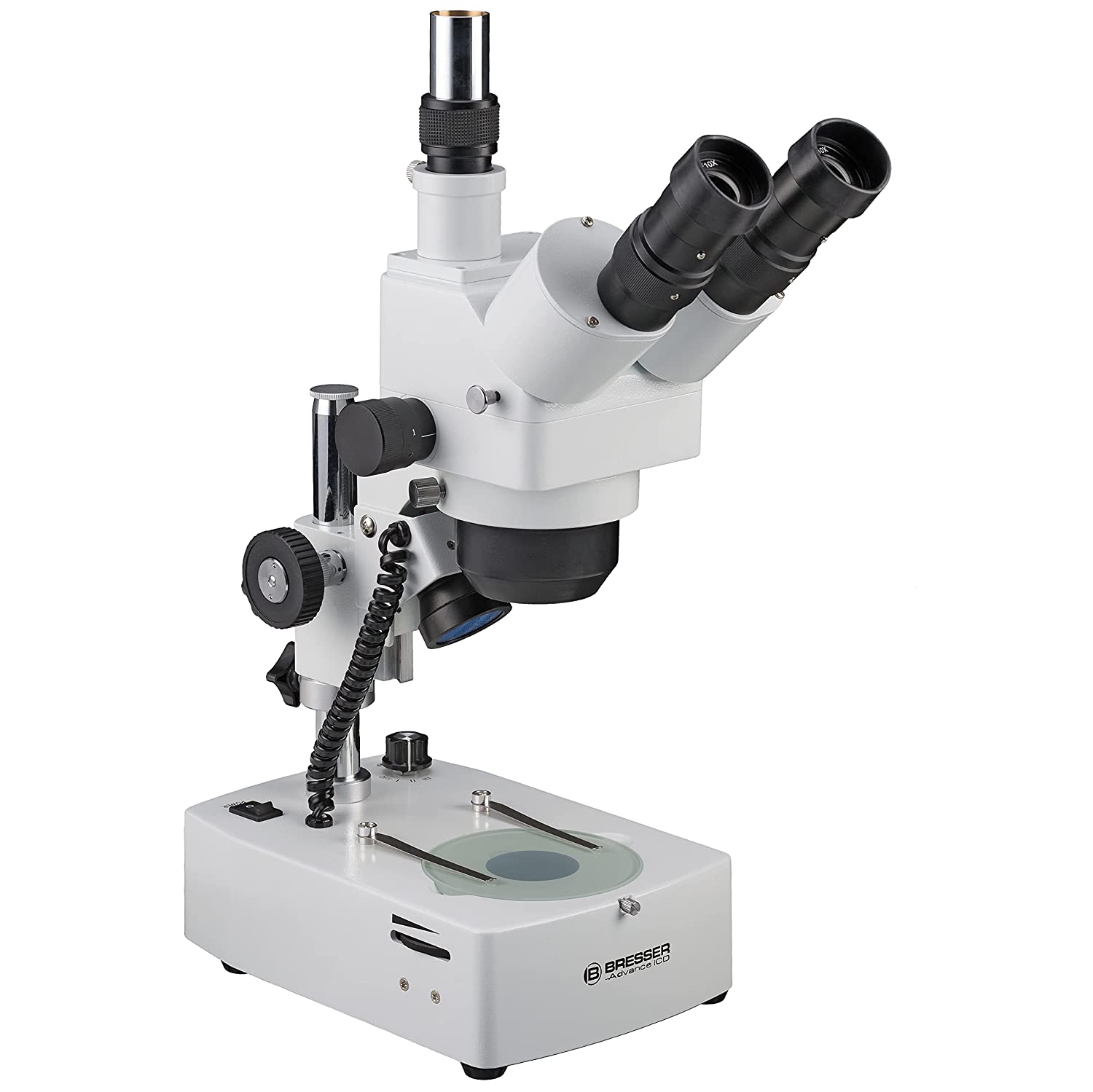

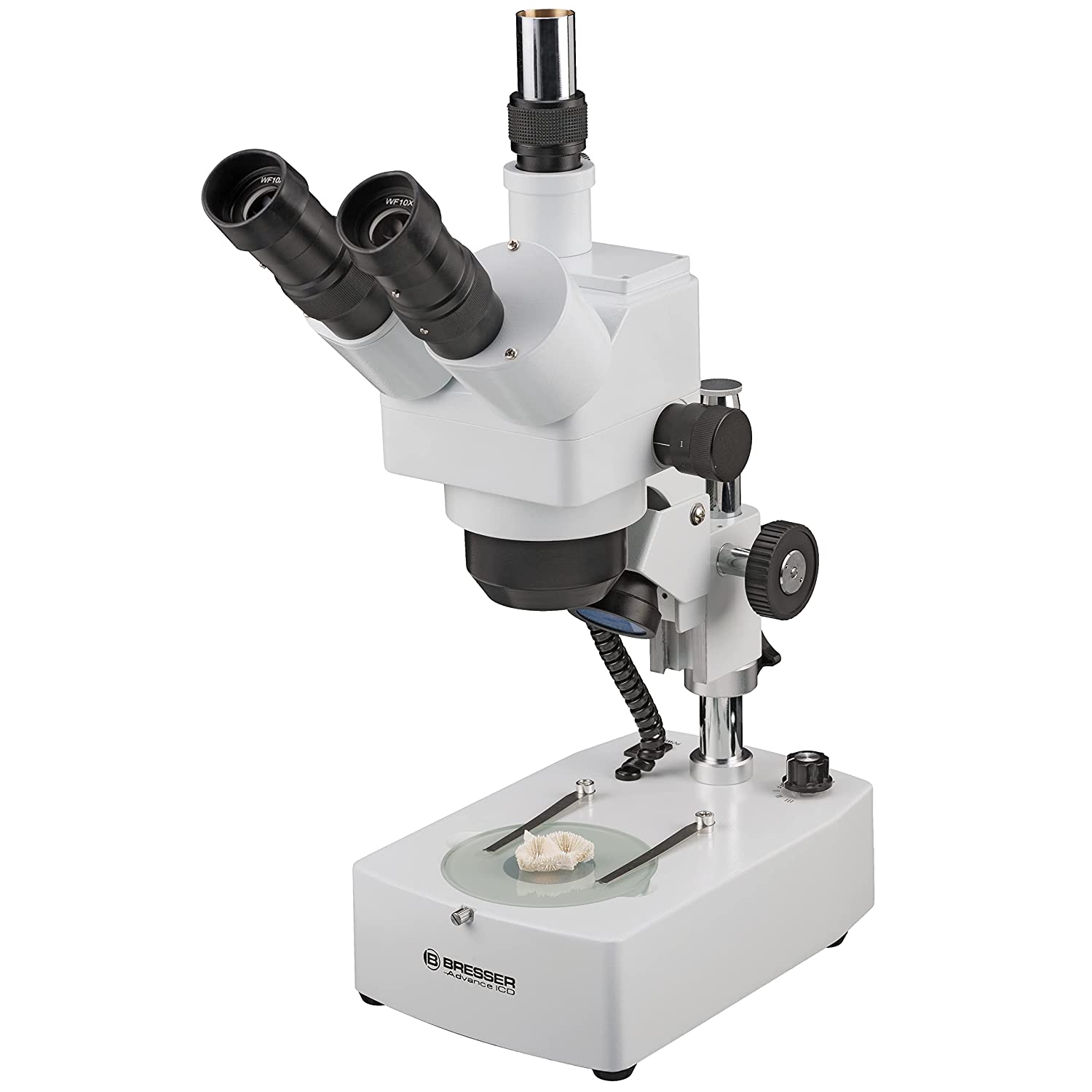

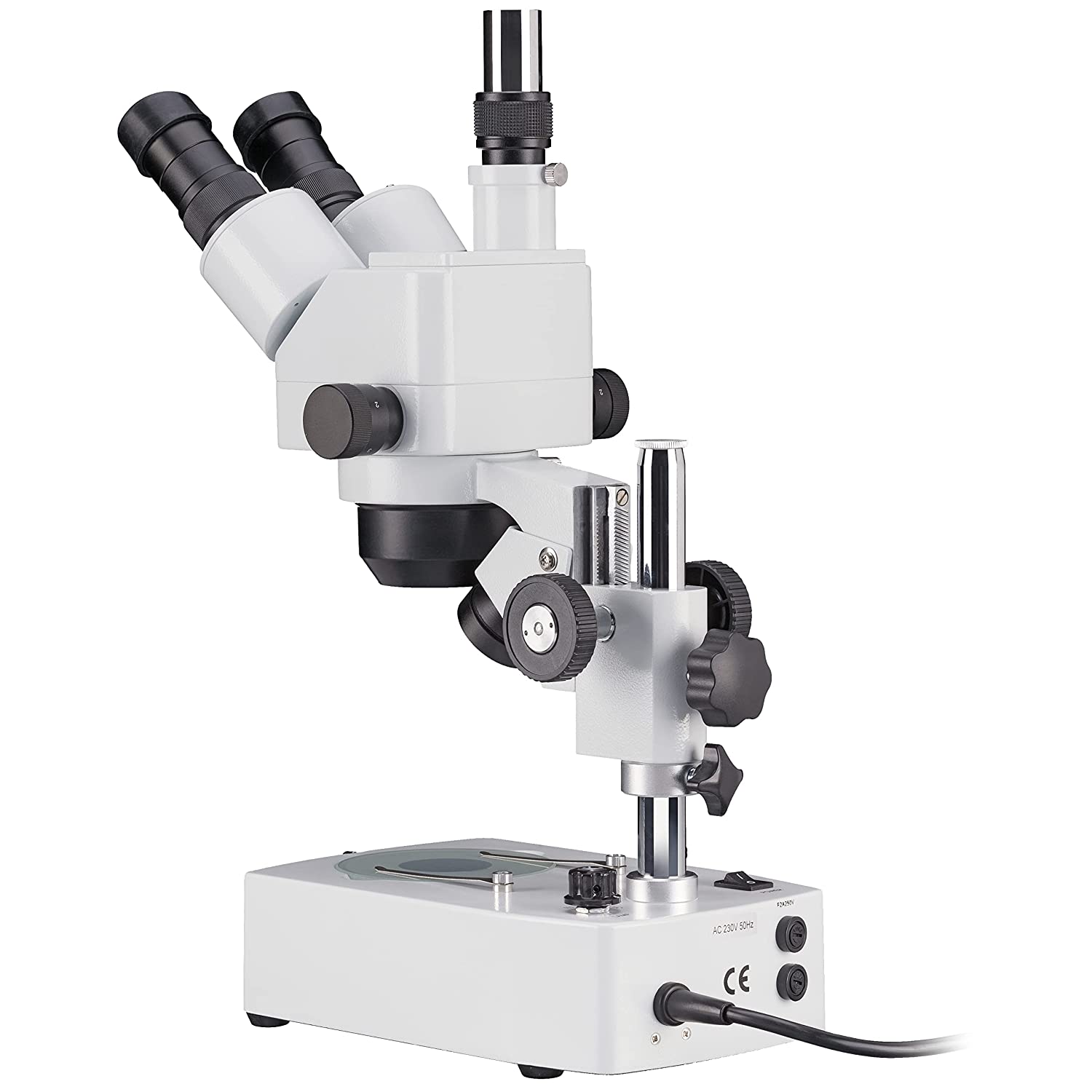

Bresser Advance ICD 10x-160x Zoom Stereo-Microscope

Introducing the BRESSER Advance ICD 10x-160x Zoom Stereo-Microscope

The BRESSER Advance ICD is the premier trinocular stereo and biological microscope in the BRESSER range, offering magnification of up to 160x at an unbeatable price. It features a Stereo Zoom Objective (1x-4x), two pairs of high-grade wide-field eyepieces (10x and 20x), and a 2x Auxiliary Lens, delivering a remarkable magnification range from 10x to 160x with superior optical quality.

Designed for versatility, the height-adjustable trinocular head accommodates larger items such as rocks or circuit boards. Additionally, users can connect a camera or PC Eyepiece to the trinocular head for simultaneous viewing and recording. The bright halogen illumination, adjustable for both stereo and transmission observation, enhances the viewing experience. Its robust base and comprehensive accessories make the BRESSER Advance ICD a professional-grade stereo microscope, offering realistic image replication.

Application Range

• Archaeology
• Geology
• Gemmology
• Petrology
• Mineralogy
• Semiconductor Production
• Entomology
• Material Research
• Botany
• Plant Physiology
• Coins and Stamps
• Quality Inspection
• Education and Teaching

Features

• Trinocular Head: Enables visual observation and simultaneous camera use.
• Compatibility: Works with BRESSER MikroCams (optional).
• Zoom Objective: 1x-4x stereo zoom.
• Auxiliary Lens: 2x lens doubles the magnification of eyepieces and zoom objective.
• Lighting: Powerful, individually controlled halogen lighting for both stereo and transmitted light.
• Object Plates: Two different plates for optimal contrast.
• Height Accommodation: Observe objects up to 12 cm high.
• Power Supply: Integrated 220/240V power supply with cable.
• Construction: Solid build with a heavy base.
• Eyepieces: Includes two pairs of wide-field eyepieces (WF 10x and WF 20x).

Scope of Delivery

• Microscope
• Two pairs of wide-field eyepieces (WF 10x / WF 20x)
• 2x Auxiliary Lens (1 piece)
• Pair of rubber eyecups
• Black/white plastic object plate
• 94mm matte glass object plate
• Two halogen lamps
• Dust cover
• Instruction manual

Technical Data

Field of Application

• Education
• Coins
• Nondestructive testing
• Botany
• Semiconductor wafer control
• Entomology
• Biology
• Mineralogy
• Gemology
• Research

Focus Group

• Beginners
• Advanced Amateurs

Product Family

• Incident and transmitted light microscope

Optical Specifications

• Optical design: Stereo
• Magnification: 10x to 160x
• Diopter setting: Yes

Electronics, Hardware & Software

• Power supply: 220/240V integrated AC power supply
• Lighting: Incident and transmitted light
• Dimmer: Dimmable lighting
• Electronic eyepiece: Optional, available as accessory

General Technical Data

• Transportability: Limited
• Focusing system: Simple focusing
• Eyecups: Rubber eyecups, fixed
• Viewing: Trinocular
• Maximum object height: 120 mm
• Working distance: Approximately 28-80 mm
• Object stage features: Two exchangeable object plates
• Colour: White
• Body material: Plastic and metal

Product Series

• Advance

Warranty

• Extended warranty of 10 years after online registration

Dimensions & Weights

• Total length: 330 mm
• Total width: 148 mm
• Total height: 502 mm
• Net weight (including accessories): 4.7 kg
• Eyepiece barrel diameter: 30.5 mm

The BRESSER Advance ICD 10x-160x Zoom Stereo-Microscope is a robust, versatile, and high-quality instrument ideal for a wide range of scientific and educational applications. With its powerful magnification capabilities, durable construction, and advanced features, it provides an excellent tool for both beginners and advanced users.
