Atomos Ninja 5.2" 4K HDMI Recording Monitor

Atomos Ninja 5.2" 4K HDMI Recording Monitor

The Atomos Ninja 5.2" 4K HDMI Recording Monitor delivers professional-grade monitoring and recording in a compact, lightweight design. Built for filmmakers, videographers, and content creators, it combines accurate on-camera monitoring with powerful ProRes and ProRes RAW recording to dramatically enhance image quality and workflow efficiency.

Developed by Atomos, the Ninja is trusted worldwide as a reliable external monitor-recorder for modern mirrorless and cinema cameras.

Professional Monitoring in a Compact Form

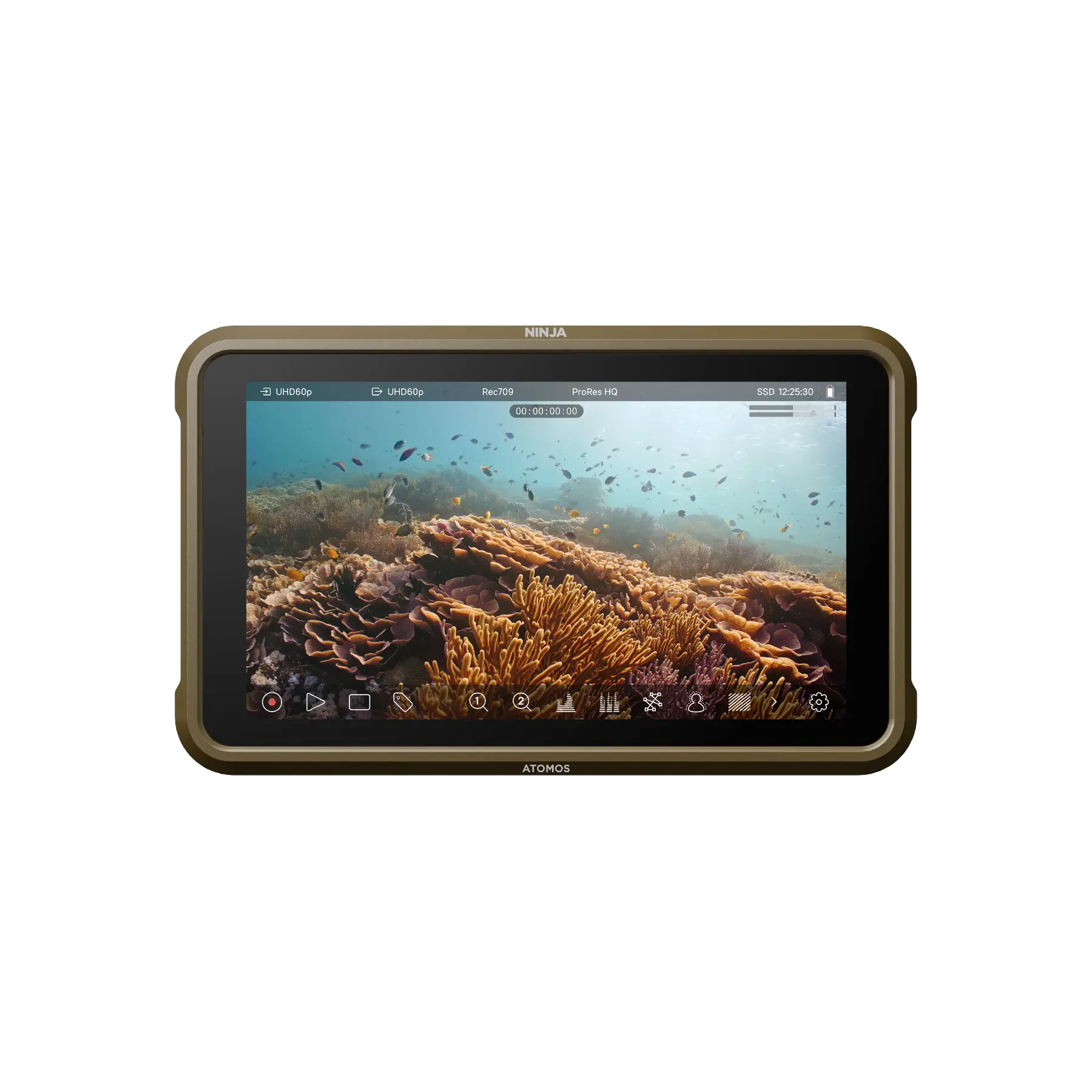

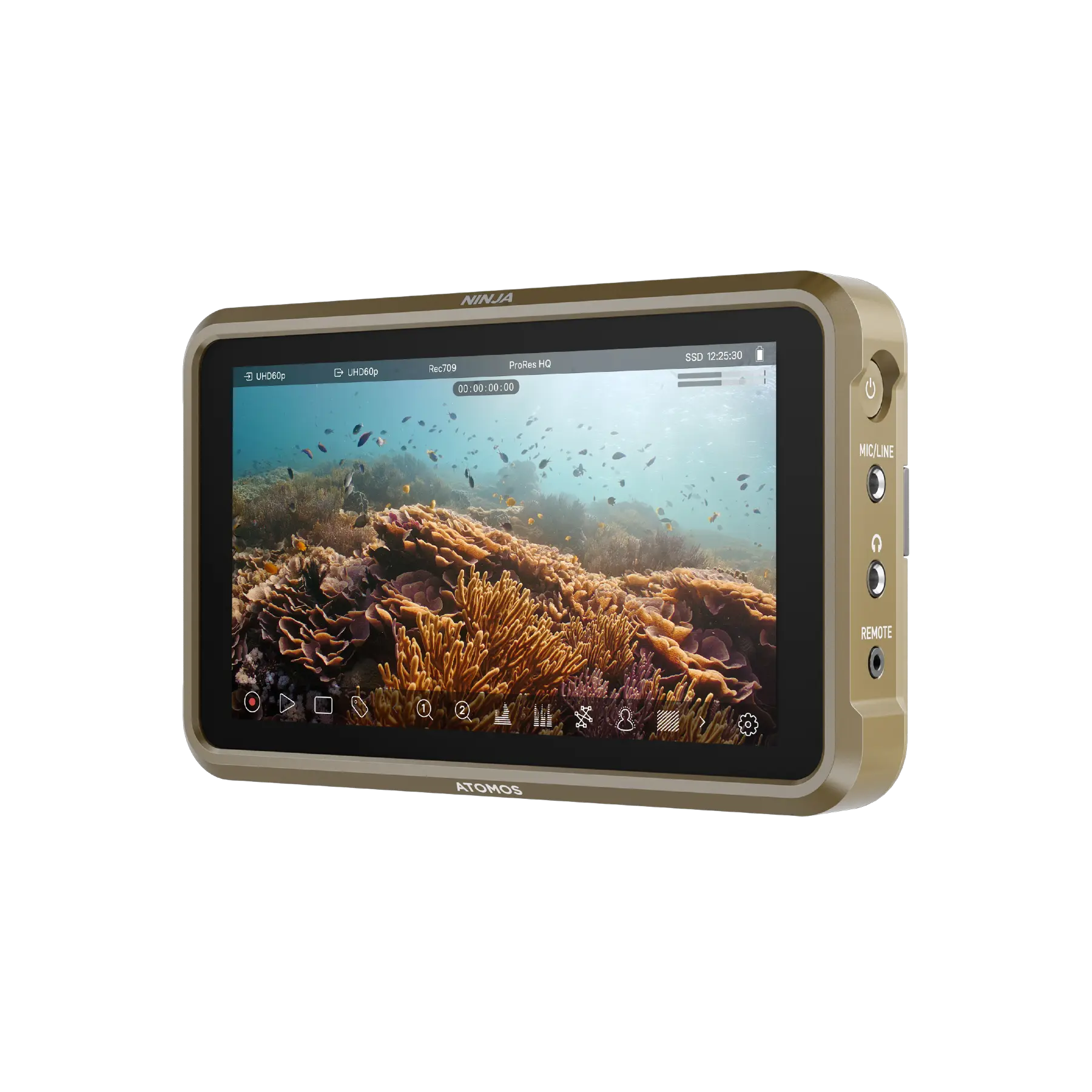

The Ninja features a high-quality 5.2" IPS touchscreen with a 1920 × 1080 resolution and 1000 cd/m² brightness, making it easily viewable in bright outdoor environments. With 10-bit colour processing and Rec.709 colour support, it delivers accurate colour reproduction for critical focus, framing, and exposure decisions.

Monitoring tools include:

• Focus peaking and zoom

• Zebra and waveform monitoring

• Atomos and ARRI False Colour

• AtomHDR with real-time Log to PQ / HLG preview

These tools allow precise control over exposure and colour while shooting.

AtomOS 11 – Faster, Smarter Workflow

Powered by AtomOS 11, the Ninja offers a refined, intuitive interface and enhanced monitoring performance. The operating system is designed to minimise setup time and maximise on-set efficiency, helping you focus on capturing the shot rather than navigating menus.

AtomHDR processing enables accurate previewing of Log footage without baking in the look, ensuring confidence when shooting high dynamic range scenes.

Advanced Recording Capabilities

Unlock the full potential of your camera with professional external recording:

• DCI 4K HDMI recording

• ProRes RAW recording up to 6K30 with select compatible cameras

• Apple ProRes and Avid DNxHR / DNxHD recording formats

Recording externally bypasses many internal camera limitations, delivering higher bitrates, improved colour depth, and greater post-production flexibility.

Footage is recorded directly to Atomos Master Caddy II or III SSDs, ensuring fast, reliable media handling.

HDMI Connectivity & Camera Compatibility

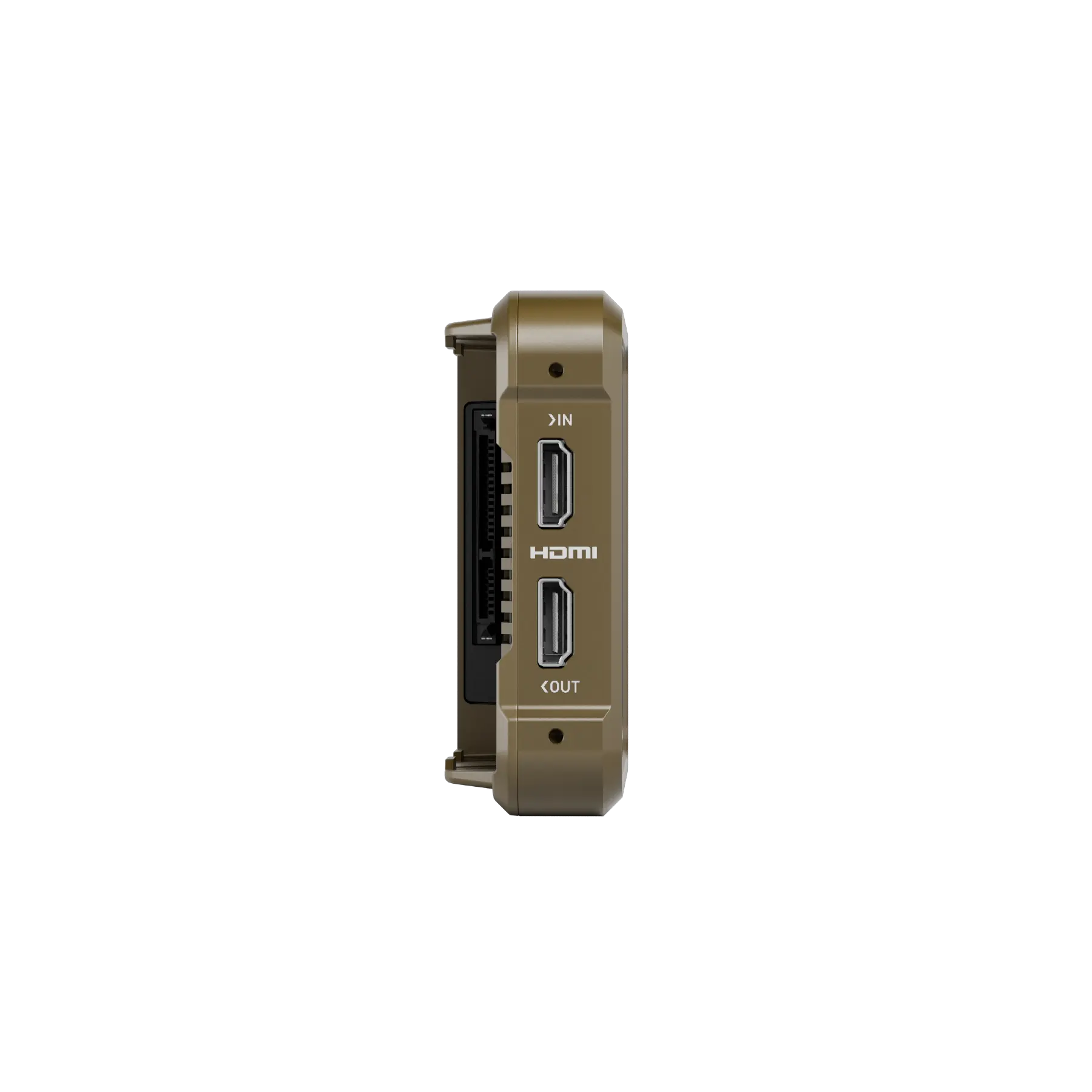

The Ninja features HDMI 2.0 input and output, supporting video up to DCI 4K at 60 fps. It is compatible with over 55 cameras for RAW recording (camera-dependent), making it a versatile upgrade across multiple camera systems.

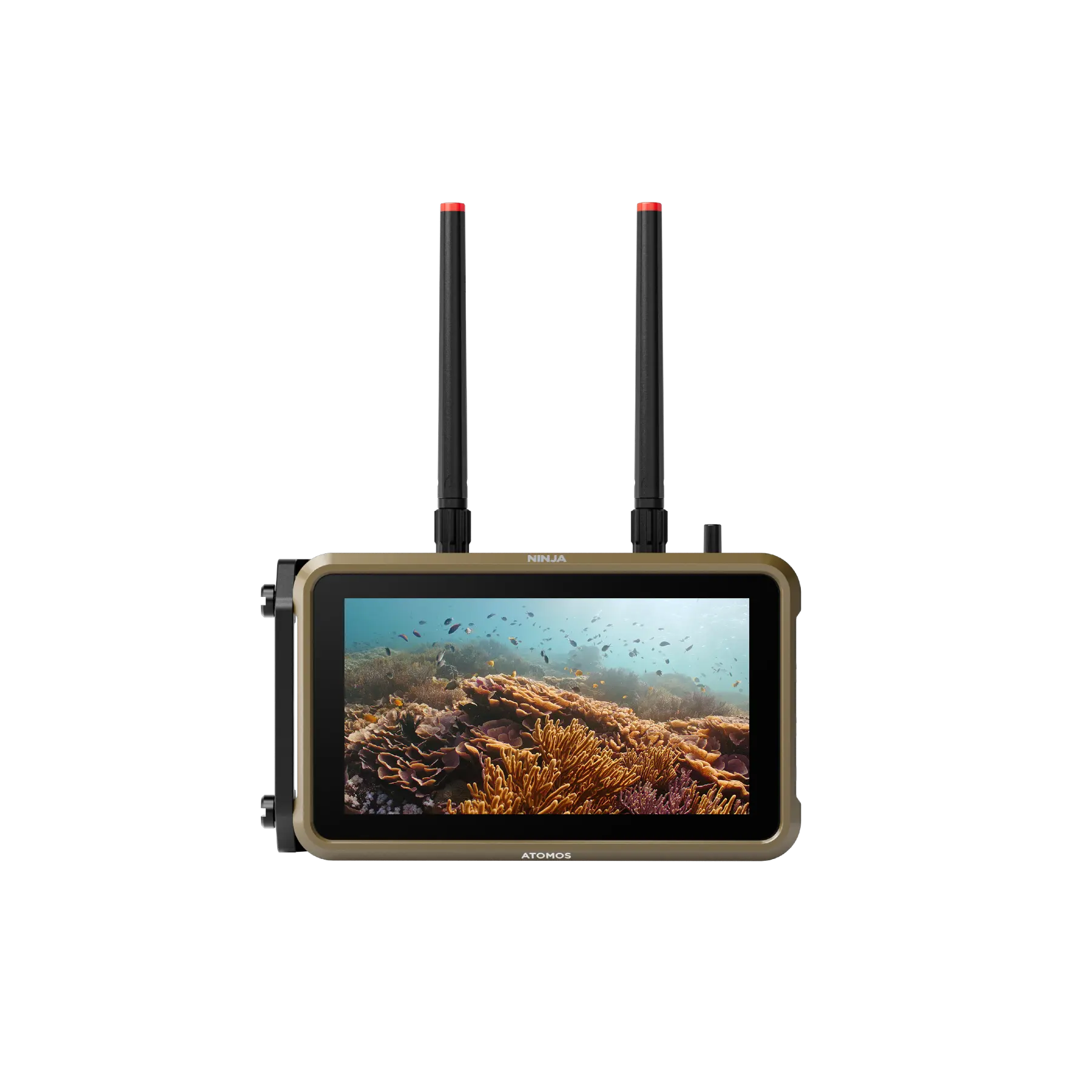

For expanded functionality, the optional Atomos CONNECT module adds:

• 12G-SDI connectivity

• Wi-Fi 6 and GigE Ethernet

• AirGlu wireless timecode and control

• Cloud-based workflows

Flexible Power & Control Options

Designed for long shooting days, the Ninja supports multiple power and control methods:

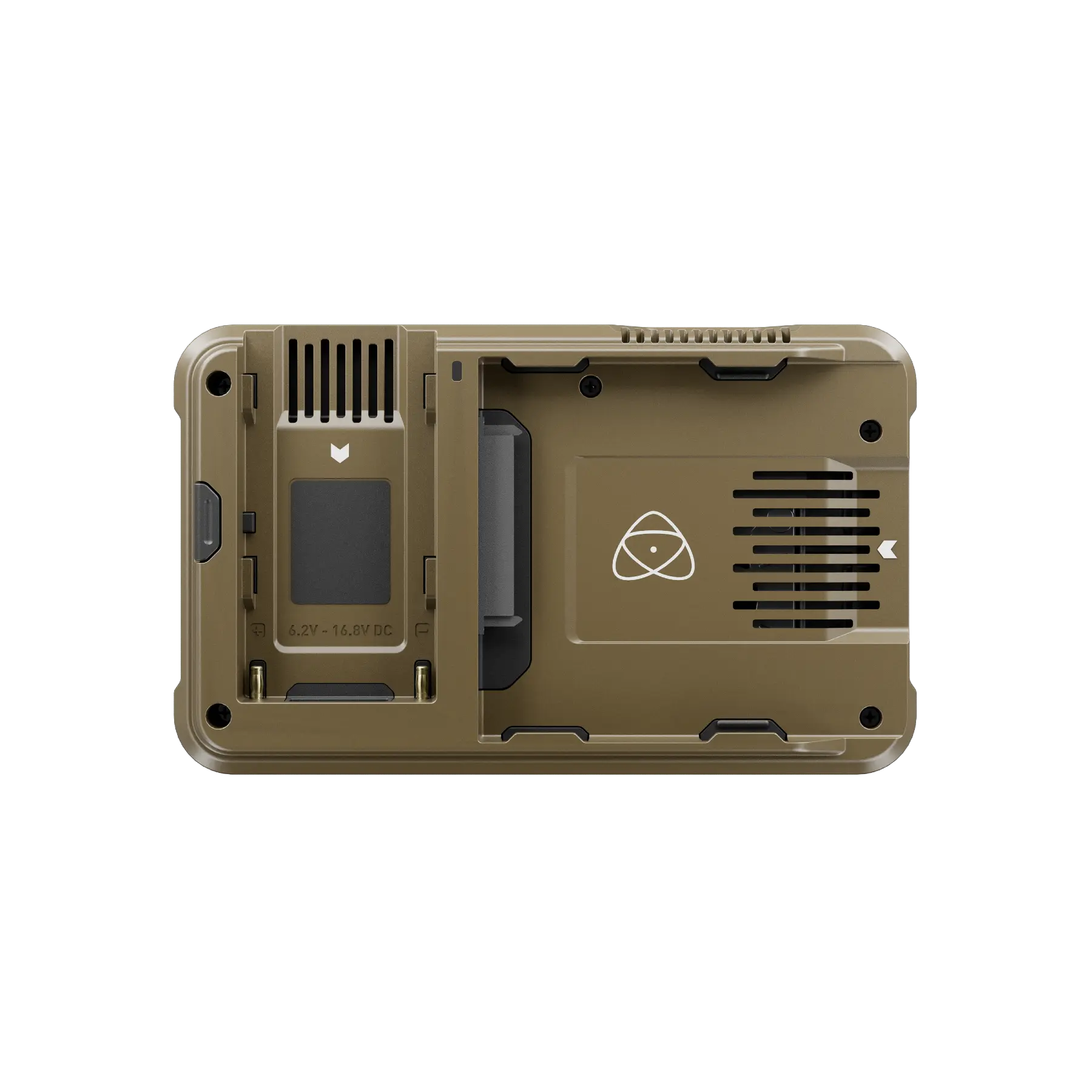

• Sony L-Series battery slot

• USB-C power delivery

• Auto HDMI camera trigger

• Touchscreen and physical controls

• Bluetooth and RF remote control (with CONNECT module)

LAN control and calibration are also supported using an optional USB-C to serial connection cable.

Expandable with Optional Accessories

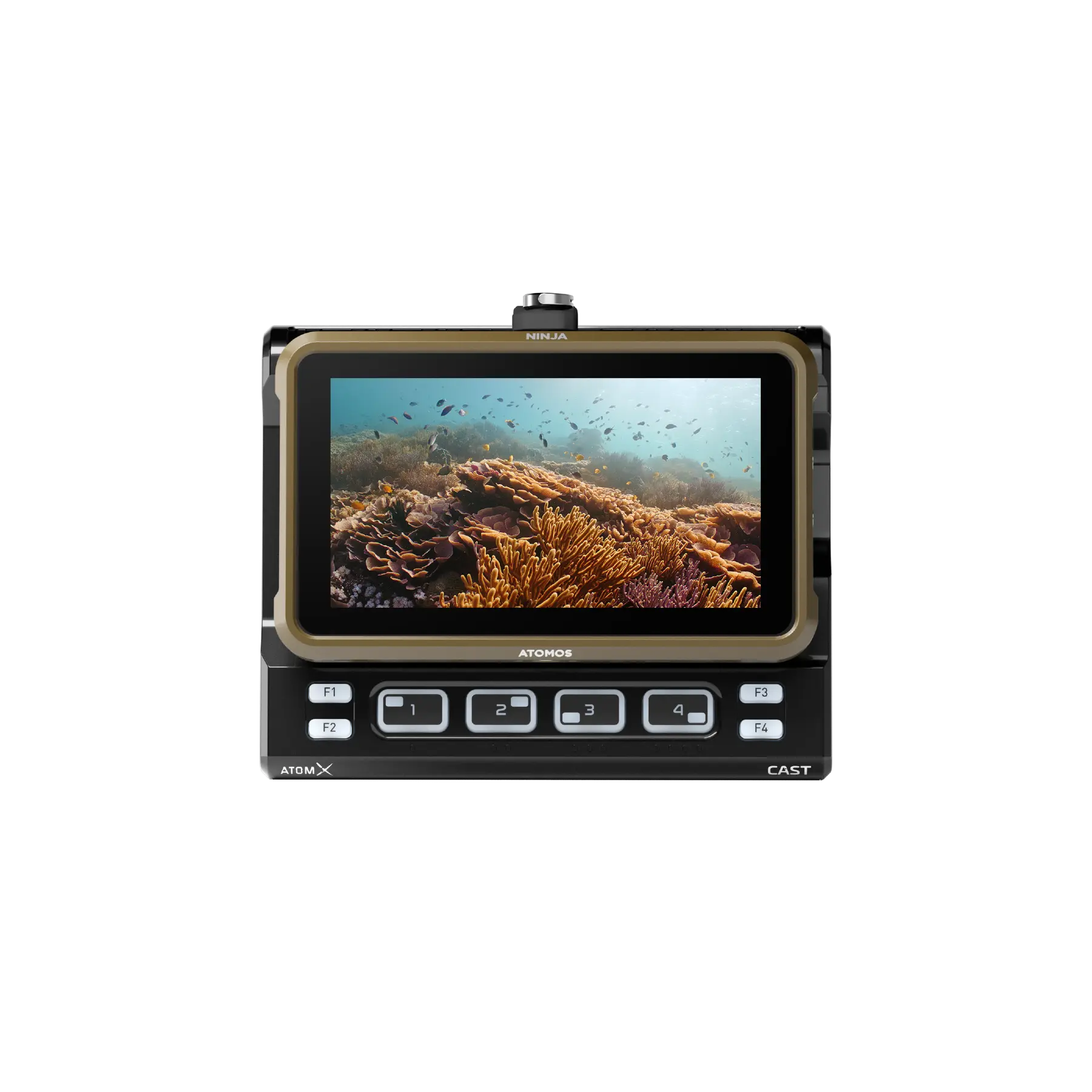

The Ninja ecosystem allows you to adapt the device to different production needs. Optional accessories include AtomX CAST, transforming the Ninja into a compact live production switcher with multi-input switching, graphic overlays, and USB UVC webcam output for streaming and conferencing.

Key Specifications

• Display: 5.2" IPS touchscreen

• Resolution: 1920 × 1080

• Brightness: 1000 cd/m²

• Colour Processing: 10-bit, Rec.709

• Video Input / Output: HDMI 2.0

• Recording Formats: ProRes RAW, ProRes, DNxHR / DNxHD

• Media: Master Caddy II / III SSD

• Power: L-Series battery or USB-C

Why Choose the Atomos Ninja?

The Atomos Ninja is a powerful upgrade for creators who want better monitoring accuracy, higher-quality recording, and a more efficient workflow. Compact enough for handheld rigs yet powerful enough for professional productions, it’s an essential tool for anyone serious about video quality.
