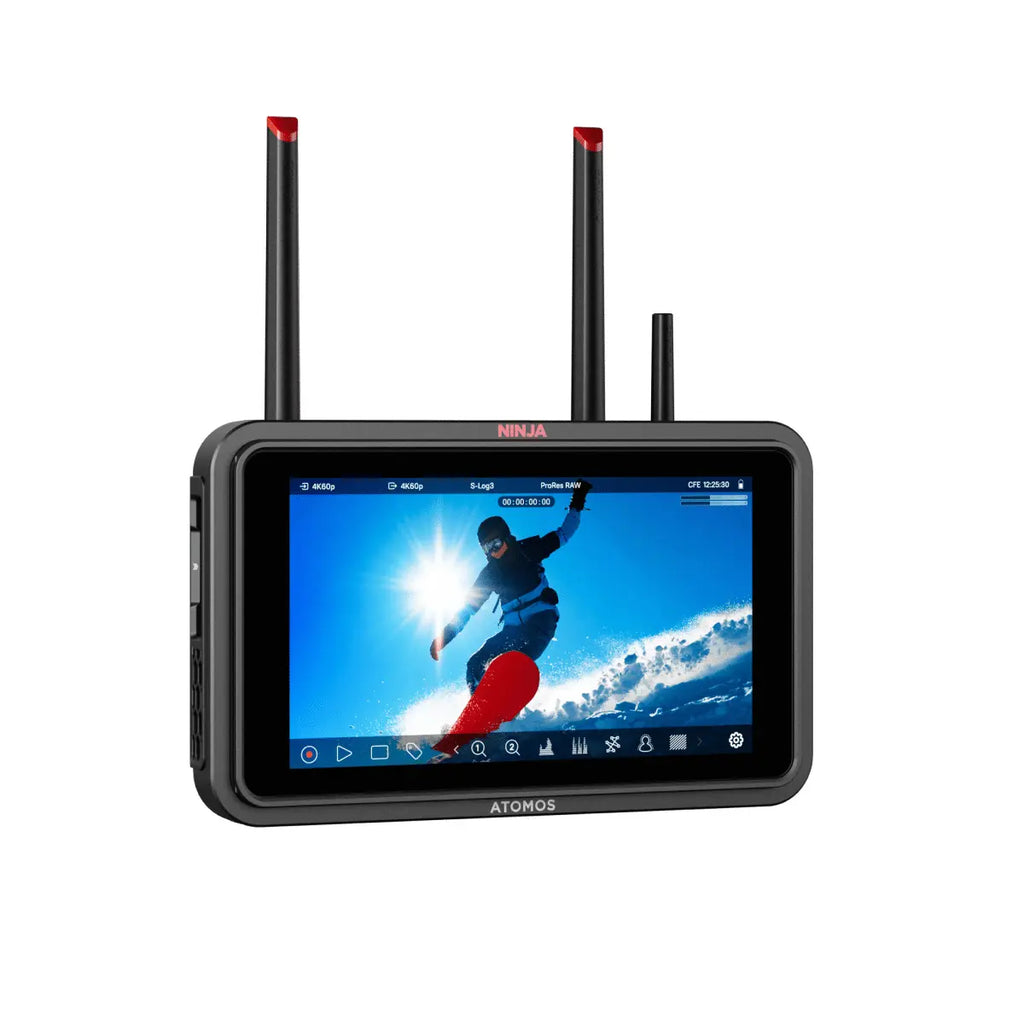

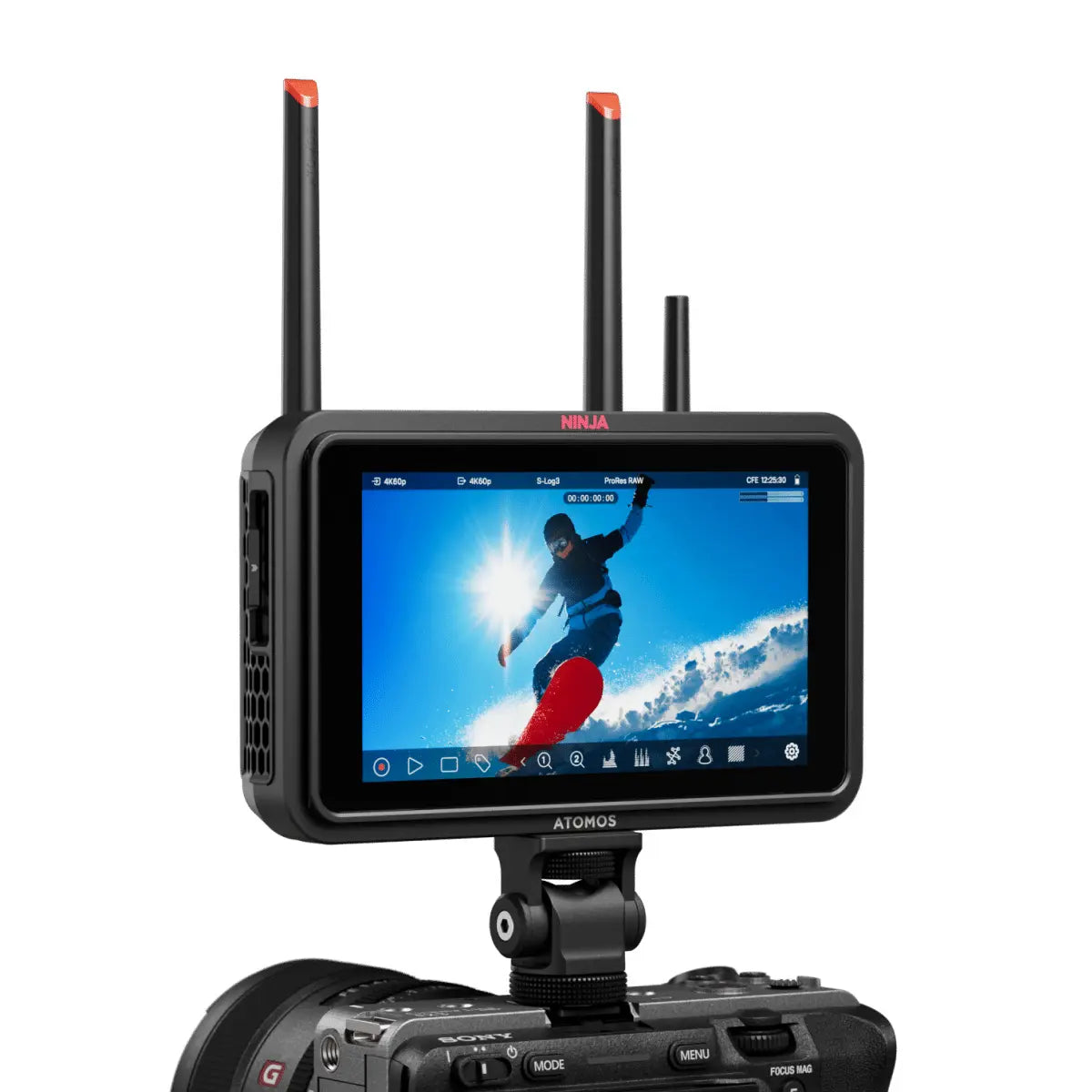

Atomos Ninja TX - 5-inch HDR Monitor-Recorder

Atomos Ninja TX — Compact Monitor-Recorder with Pro-Level Power

SDI. HDMI. ProRes RAW. NDI. Cloud. All in one device.
The Atomos Ninja TX is a compact yet powerful monitor-recorder that delivers unmatched connectivity, professional recording formats, and advanced monitoring tools in a single portable unit. Designed for filmmakers, broadcasters, and content creators, it seamlessly bridges camera, post-production, and cloud workflows — all while fitting in the palm of your hand.

All-in-One Connectivity and Recording

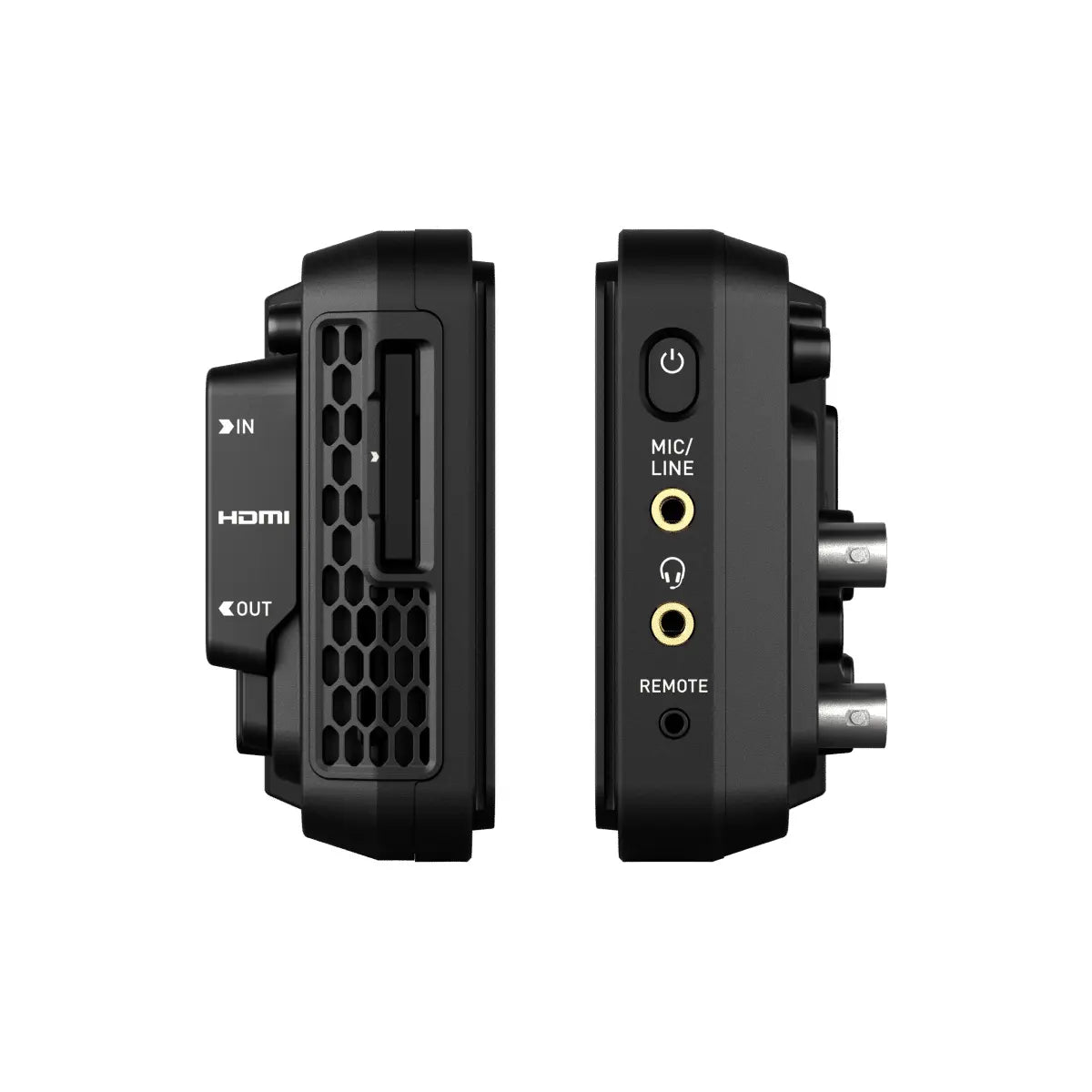

• Dual SDI & HDMI I/O – Compatible with virtually any camera system.

• Apple ProRes / ProRes RAW recording – Up to 6Kp60 RAW / 8Kp30 RAW directly to certified CFexpress Type B or external USB media.

• Multiple codec support – Including ProRes, DNxHD, DNxHR, and H.265 (8/10-bit, 4:2:2 / 4:2:0).

• Camera-to-cloud ready – Built-in ATOMOSphere membership with 20GB free storage, plus direct integration with Adobe Frame.io and Dropbox.

No other monitor-recorder packs so much performance, compatibility, and workflow flexibility into such a compact device.

Pro Monitoring on a 1500-Nit Display

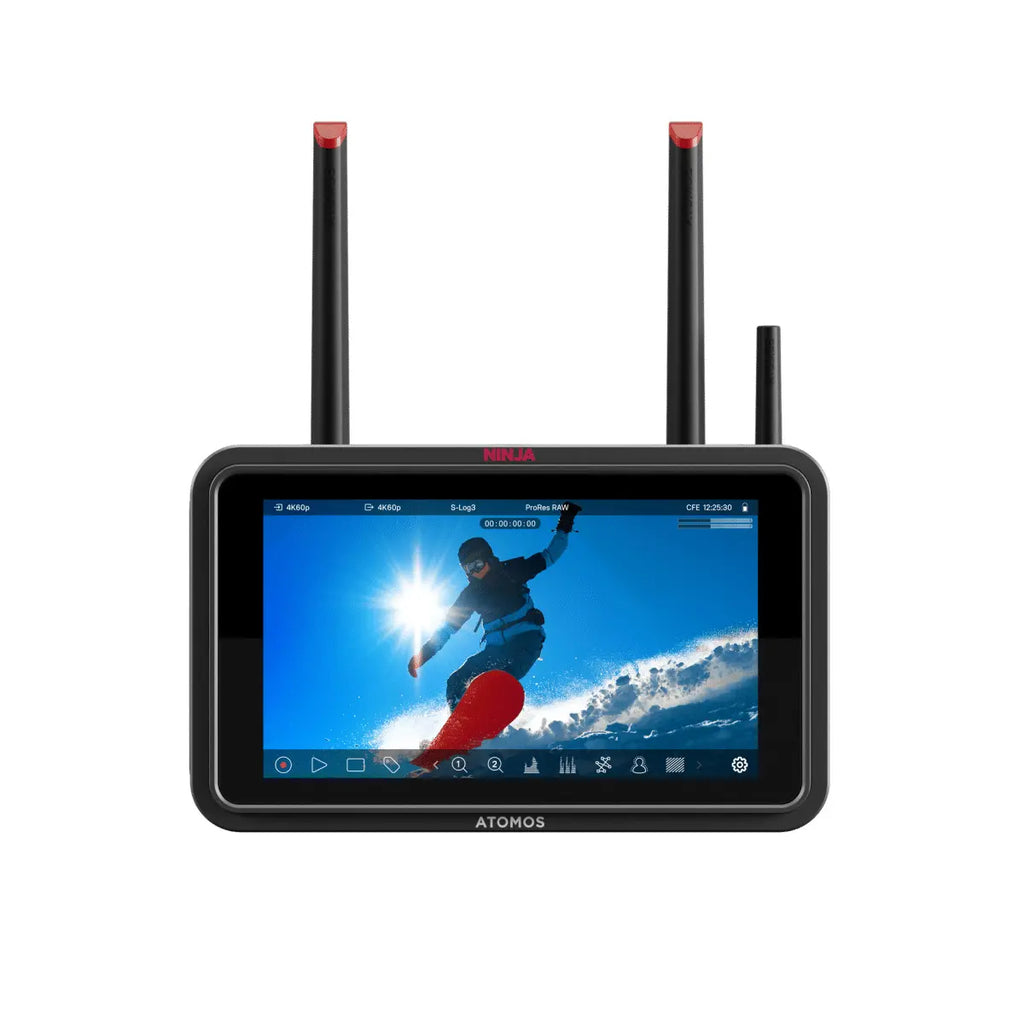

The Ninja TX features a 5.2-inch 1920 x 1080 HDR display with 1500 nits of brightness, making it perfect for indoor and outdoor shoots.

• Wide colour support – Rec.709, DCI-P3, BT.2020, plus manufacturer-specific gamuts (Sony S-Gamut, Canon Cinema, Panasonic V-Gamut, ARRI Alexa Wide Gamut, RED DragonColor, and more).

• HDR monitoring – Native, HLG, PQ, or 3D LUTs (.cube format) with downstream loop-out.

• Professional monitoring tools – Waveform, RGB Parade, Vectorscope, Focus Peaking, False Color (Atomos + ARRI), EL ZONE, Zebra, Safe Areas, Frame Guides (cinema & social), Onion Skin overlays, and anamorphic de-squeeze options.

Built for Hybrid Workflows

Whether on location, in the studio, or streaming live, Ninja TX adapts seamlessly:

• NDI 6 streaming support – Connect directly to IP broadcast workflows.

• Wi-Fi 6E, Bluetooth & AirGlu – Fast wireless control, syncing, and connectivity.

• HDMI ↔ SDI cross conversion – Flexible signal routing for any setup.

• Simultaneous proxy recording – High-quality and lightweight files at the same time.

• Pre-roll, timelapse & playlist tools – Creative flexibility built in.

Professional Build, Portable Form

• Compact & lightweight: 151mm x 92mm x 36mm, 400g.

• Rugged construction: Aluminium chassis with ABS plastic for durability.

• Efficient cooling: Actively controlled fan with heat sink.

• Power options: NP-F battery, USB-C PD (45W), DC input, or D-Tap.

• Continuous power workflow: Hot-swap for uninterrupted shoots.

Built to handle demanding fieldwork, with reliability that matches broadcast and cinema production standards.

What’s in the Box

• Ninja TX unit

• USB-C locking cable adaptor

• USB-C locking cable (45 cm)

• HDMI locking cable adaptor

• Wi-Fi antenna + antenna caps

• AirGlu antenna + antenna caps

• Quick Start Guide

Box dimensions: 190 x 130 x 75 mm
Box weight: 665 g
Warranty: 1 year (extendable to 2 years with product registration)

Key Specifications

• Display: 5.2" 1920 x 1080, 1500 nits brightness

• Recording: Up to 8Kp30 / 6Kp60 ProRes RAW

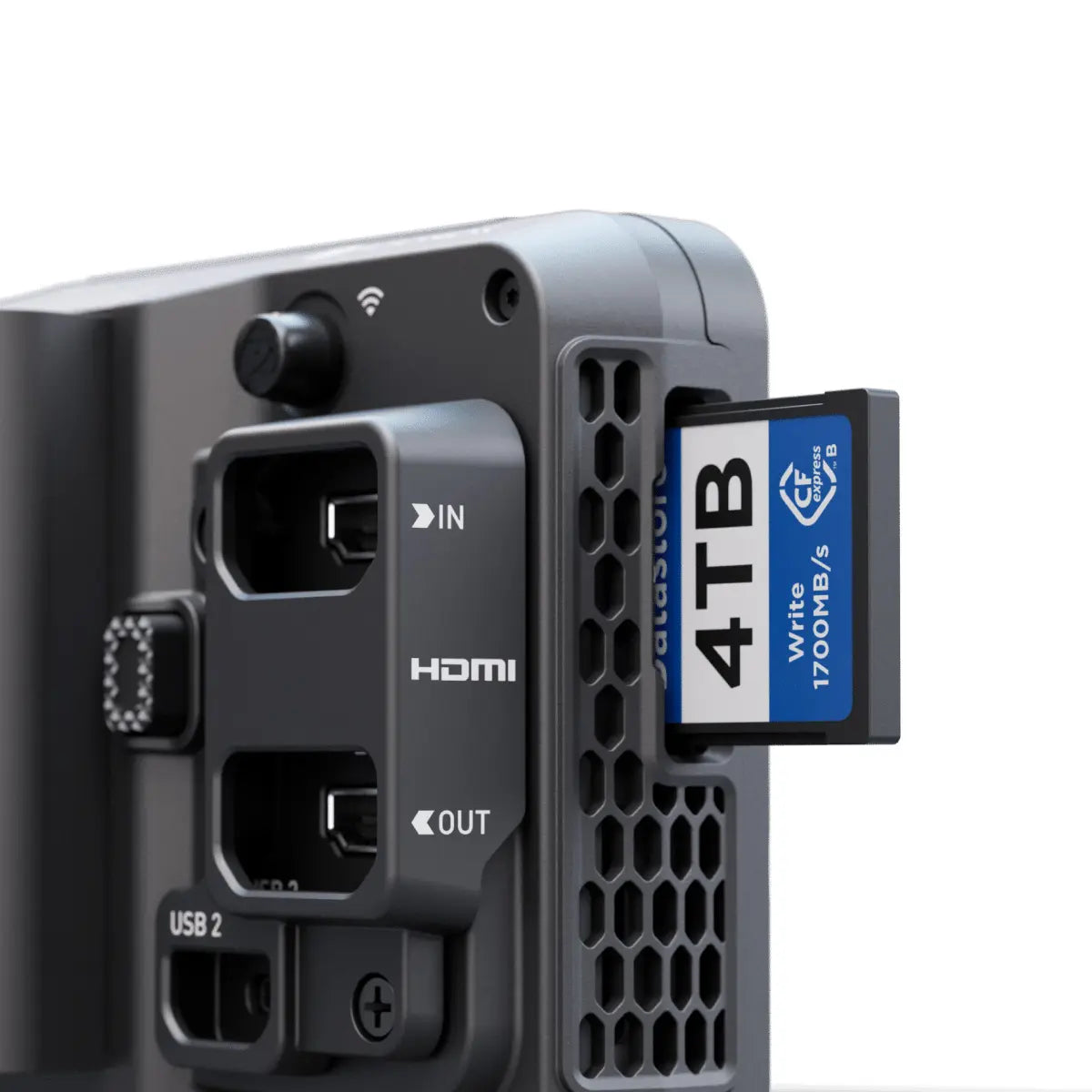

• Media: CFexpress Type B / USB 3.0 certified drives

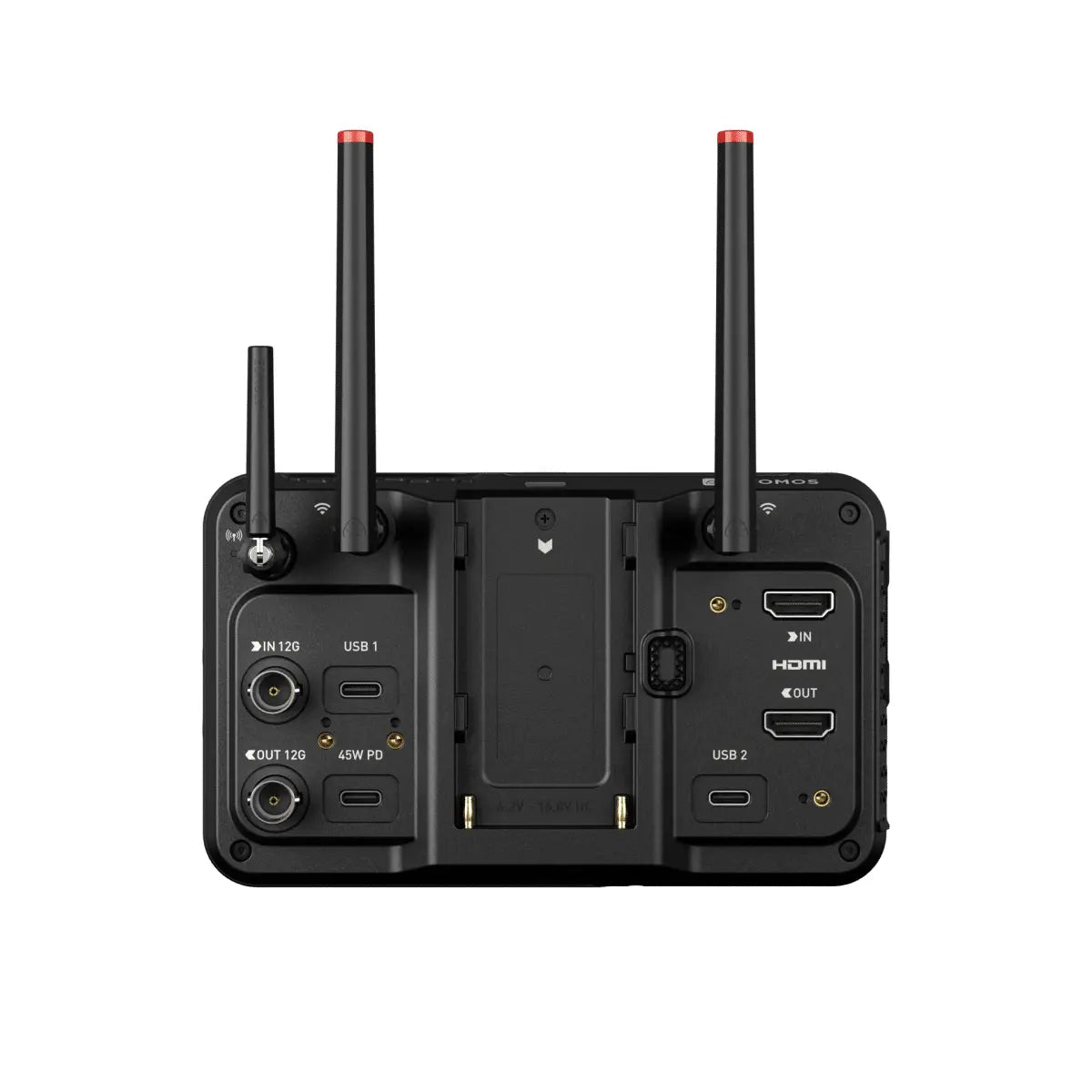

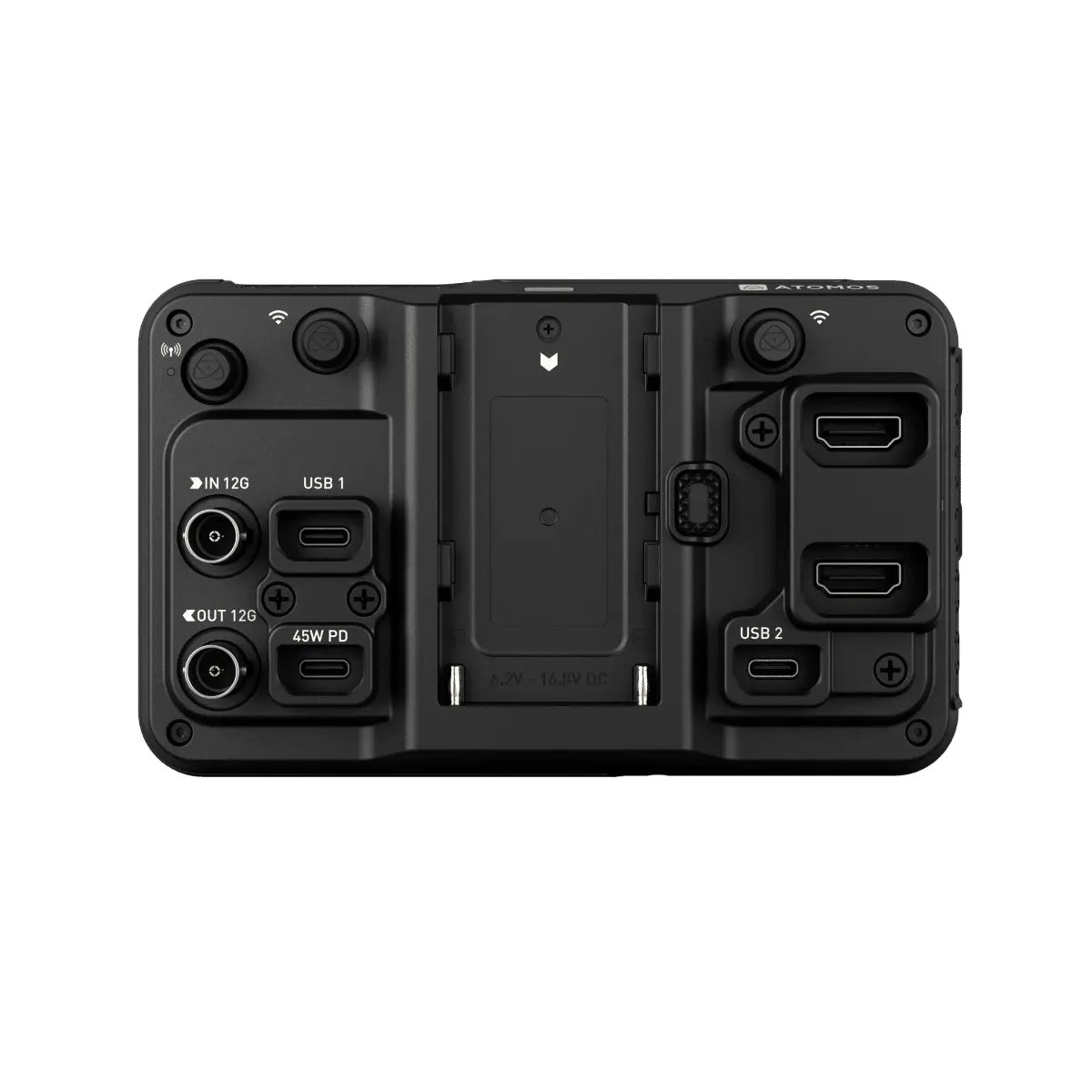

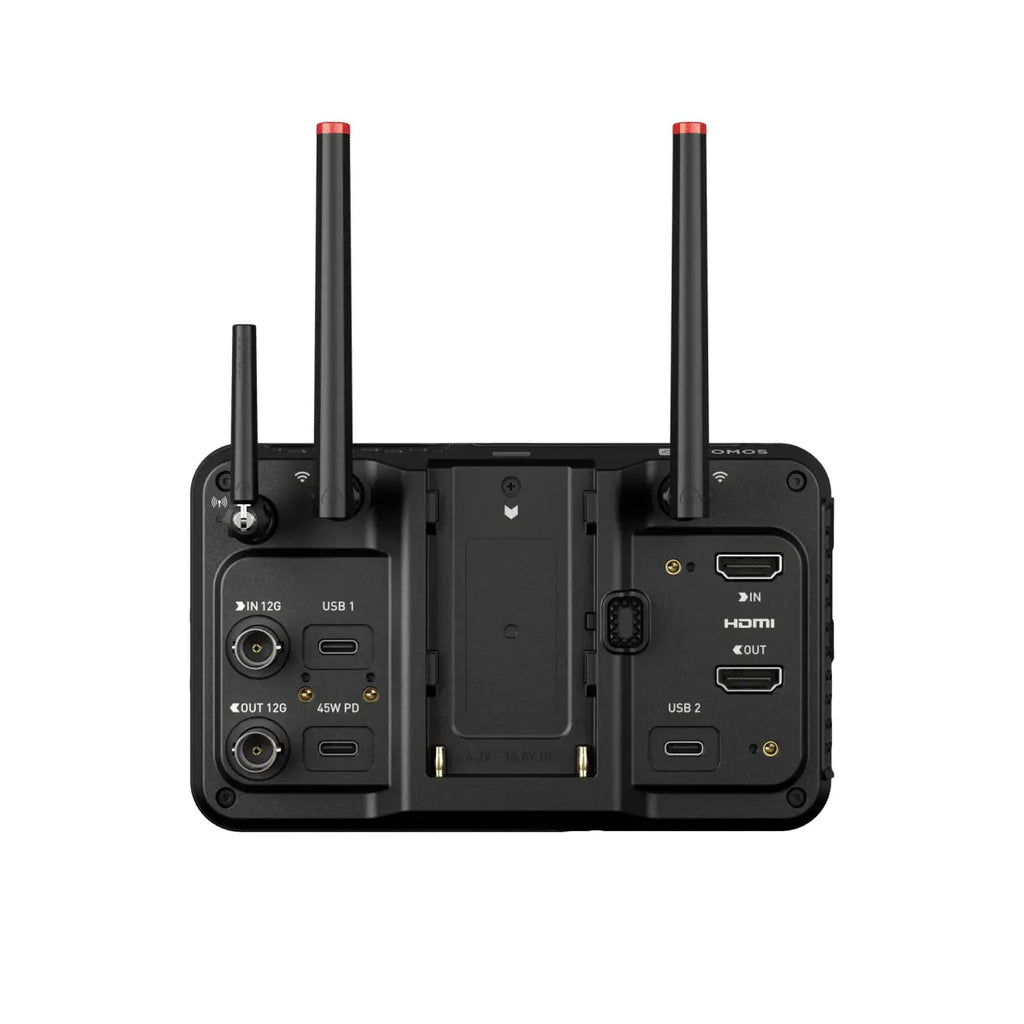

• Inputs/Outputs: HDMI 2.0, 12G-SDI, USB-C 3.0, Wi-Fi 6E, Bluetooth

• Audio: 8-channel HDMI, 12-channel SDI, 3.5mm line in & headphone out

• Monitoring Tools: Waveform, False Color, Focus Peaking, 3D LUTs & more

• Power: NP-F, USB-C PD, DC-in, D-Tap support

Atomos Ninja TX — the most compact, connected, and versatile monitor-recorder ever made.
From high-end cinema production to live streaming and cloud collaboration, Ninja TX ensures your workflow is faster, smarter, and more reliable.
