Blackmagic ATEM Mini Extreme

Blackmagic ATEM Mini Extreme: The Ultimate Professional Switcher for Advanced Live Productions

The ATEM Mini Extreme is the pinnacle of professional video switchers, designed for those who demand superior performance and versatility. Packed with an array of advanced features, this switcher offers everything the ATEM Mini Pro does and more, including 8 HDMI inputs, dual HDMI outputs, 2 USB ports, and a headphone connection. Whether you're broadcasting live events, creating high-quality video content, or streaming, the ATEM Mini Extreme provides unparalleled control and flexibility.

Comprehensive Connectivity for Seamless Integration

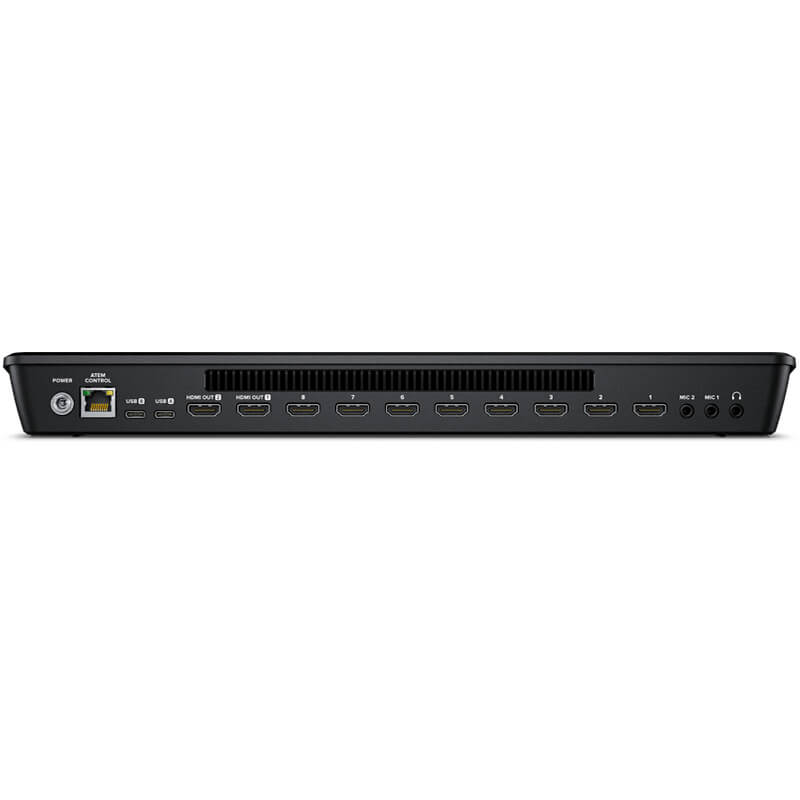

Video and Audio Inputs and Outputs

• Total Video Inputs: 8
• Total Outputs: 4
• Total Aux Outputs: 2
• Total Audio Inputs: 2 x 3.5mm stereo mini jack
• Total Audio Outputs: 1 x 3.5mm stereo mini jack
• Timecode Connection: None
• HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable with 2-channel embedded audio
• HDMI Program Outputs: 2

Advanced Input Features

• Video Input Re-Sync: On all 8 HDMI inputs
• Frame Rate and Format Converters: On all 8 HDMI inputs

Network and Computer Interface

• Ethernet: Supports 10/100/1000 BaseT for live streaming, software control, updates, and direct or network panel connection
• Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, updates, and panel connection

Unmatched Video Standards and Quality

• HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: None
• Video Sampling: 4:2:2 YUV
• Colour Precision: 10-bit
• Colour Space: Rec 709

Versatile Resolutions and Colourspace Conversion

• HDMI Input Resolutions from Computers:
  • 1280 x 720p at 50Hz, 59.94Hz, and 60Hz
  • 1920 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60Hz
  • 1920 x 1080i at 50, 59.94, and 60Hz
• Colourspace Conversion: Hardware-based real-time

Powerful Keyers and Layers

• Upstream Keyers: 4
• Downstream Keyers: 2
• Advanced Chroma Keyers: Up to 4
• Linear/Luma Keyers: Up to 4
• Transition Keyer: DVE only
• Total Number of Layers: 9
• Pattern Generators: 5
• Colour Generators: 2
• DVE With Borders and Drop Shadow: 2

Audio Excellence with Fairlight Technology

• Audio Mixer: 11 input x 2 channel mixer with selectable On/Off/Audio-Follow-Video per channel, separate gain control per channel, level and peak metering, and Fairlight audio enhancements including compressor, gate, limiter, 6 bands of parametric EQ, and master gain control.
• Analog Input: Unbalanced stereo
• Analog Input Delay: Up to 8 frames
• Input Impedance: 1.8k
• Max Input Level: +6dBV
• Mic Plug-In Power: Available on both 3.5mm mini jack connections

Seamless Streaming and Recording

• Direct Streaming: Supports live streaming using RTMP over Ethernet or shared mobile internet connection over USB-C
• Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
• Video Recording: 1 x Program out as H.264 .mp4 file at the streaming quality setting and ATEM video standard with AAC audio
• Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

Advanced Multi-View Monitoring

• Multi View Monitoring: Configurable to 16, 13, 10, 7, or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status, and Audio Meters
• Multi View Video Standard: HD

Robust Media Player

• Media Players: 2
• Channels: Fill and key for each media player
• Media Pool Still Image Capacity: 20 with fill and key
• Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, and TIFF

Comprehensive Control and Software Compatibility

• Control Panel: Built-in control panel with software control panel and camera control included, supporting optional hardware panel
• Control Panel Connection: Ethernet supports 10/100/1000 BaseT for direct or network connection; USB-C for direct connection. Ethernet or USB-C also used for software updates.
• Control Panel Compatibility: Includes ATEM Software Control Panel; compatible with ATEM 1 M/E, 2 M/E, and 4 M/E Advanced Panels, and can be configured using Blackmagic Videohub Hardware Panel Setup Utility
• Control Panel Included: ATEM Software Control Panel included free for Mac OS 10.14 Mojave, 10.15 Catalina, 11 Big Sur or later, and Windows 10 64-bit only

Reliable Power and Environmental Specifications

• Power Supply: 1 x External 12V power supply
• Power Usage: 36W
• Operating Temperature: 5° C to 40° C (41° - 104° F)
• Storage Temperature: -10° to 60° C (14° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What’s Included

• ATEM Mini Extreme
• External 12V DC power supply with international socket adapters
• Warranty: 12 Months Limited Manufacturer's Warranty

Elevate Your Live Production with the ATEM Mini Extreme

With its powerful features and comprehensive connectivity, the ATEM Mini Extreme is the ideal choice for professional live production. Whether you're streaming, recording, or producing complex multi-camera events, this advanced switcher provides the tools you need to create high-quality, engaging content with ease. Experience the ultimate in professional video production with the ATEM Mini Extreme.
