Product Description

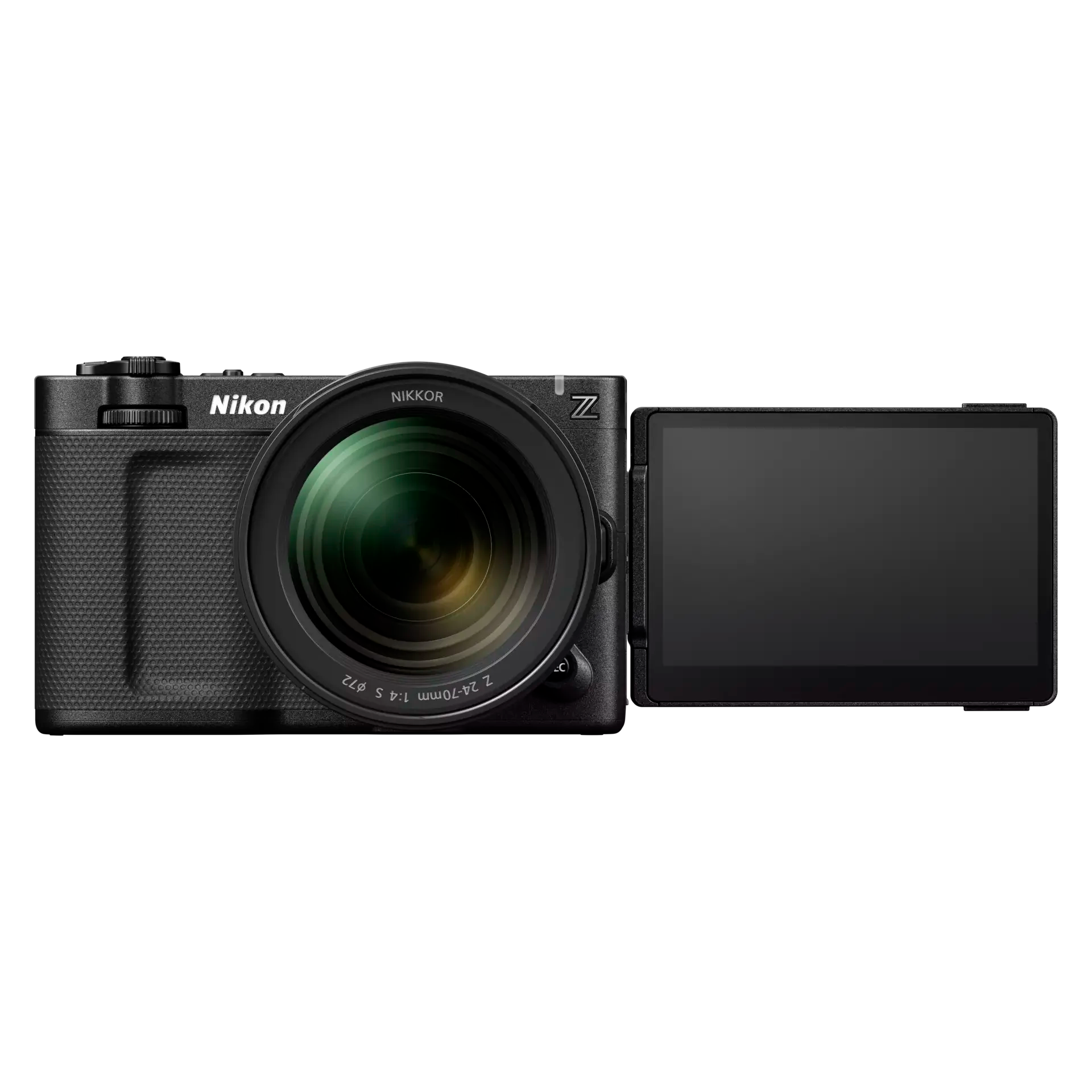

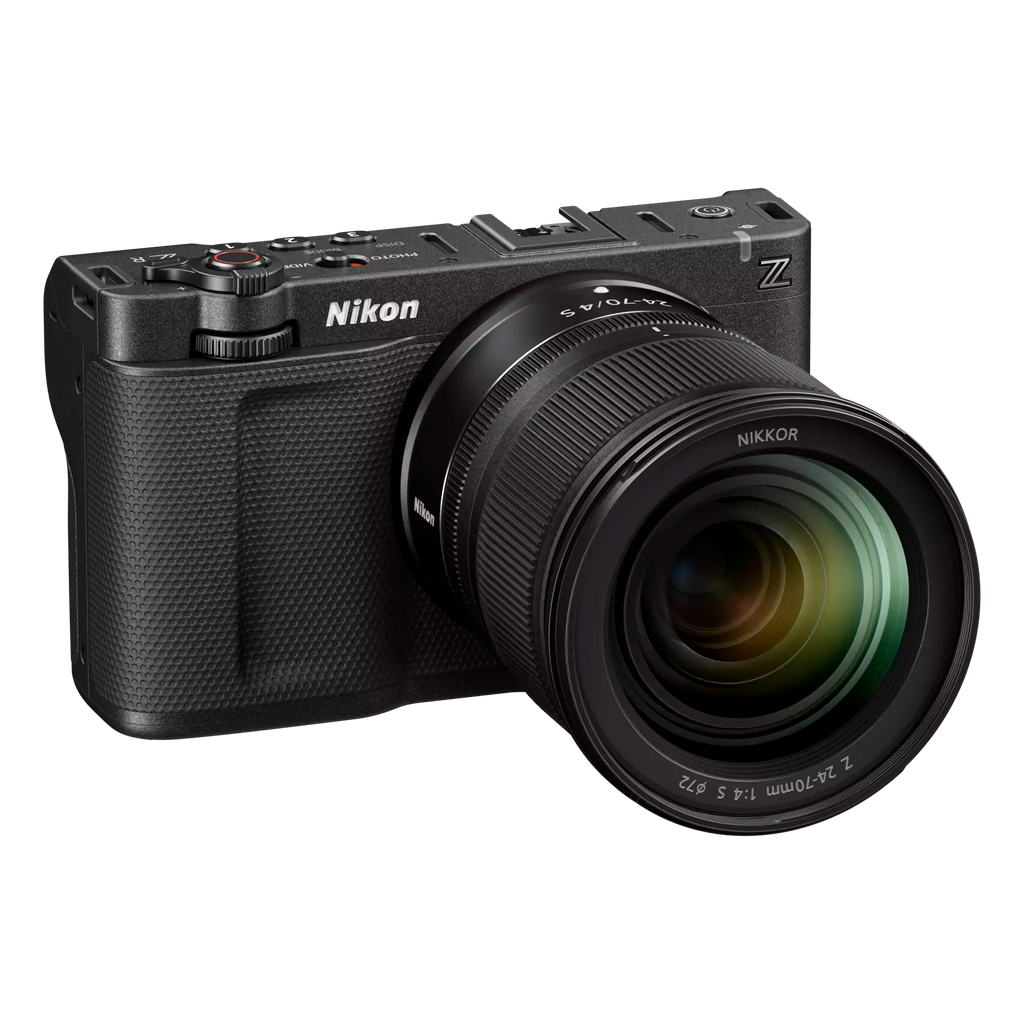

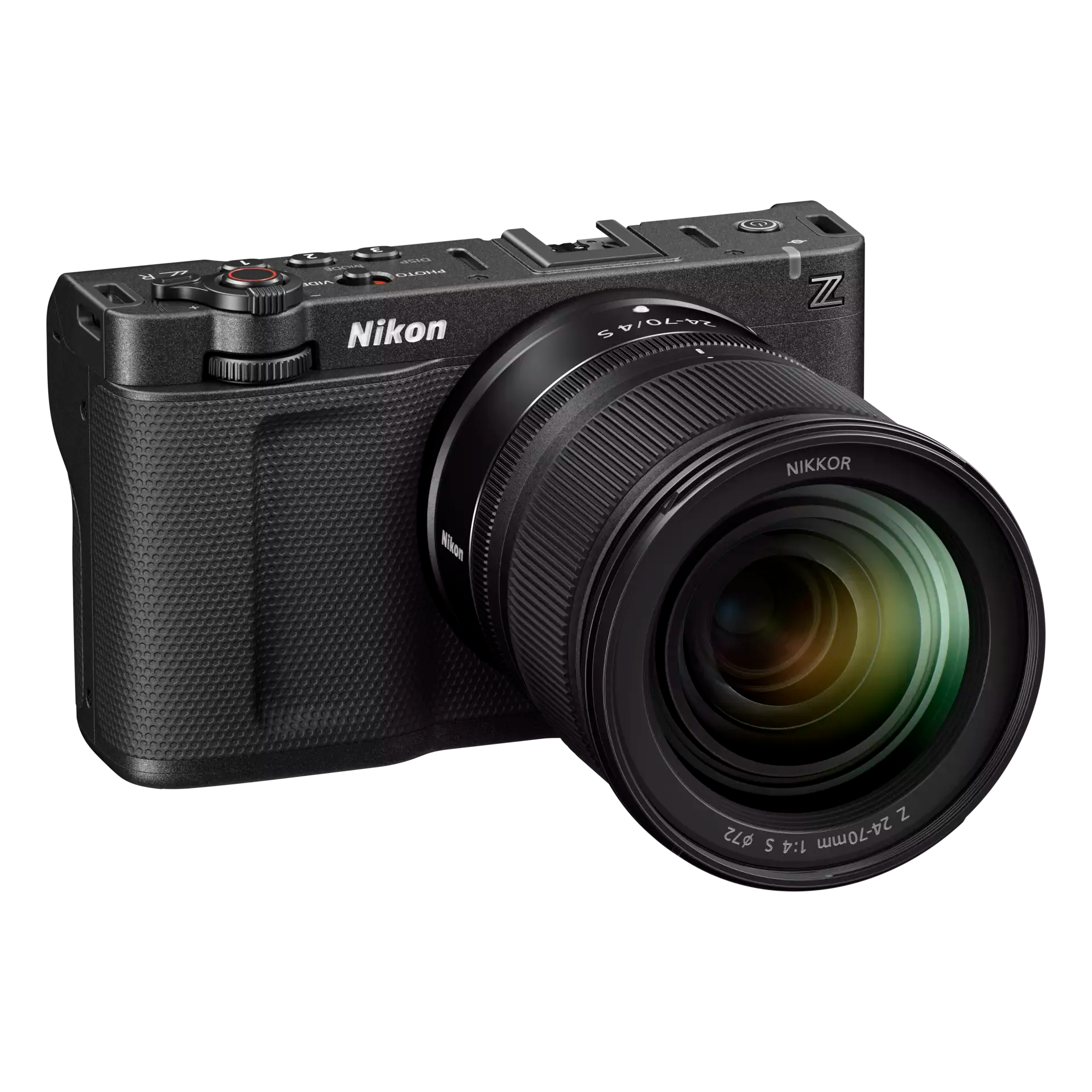

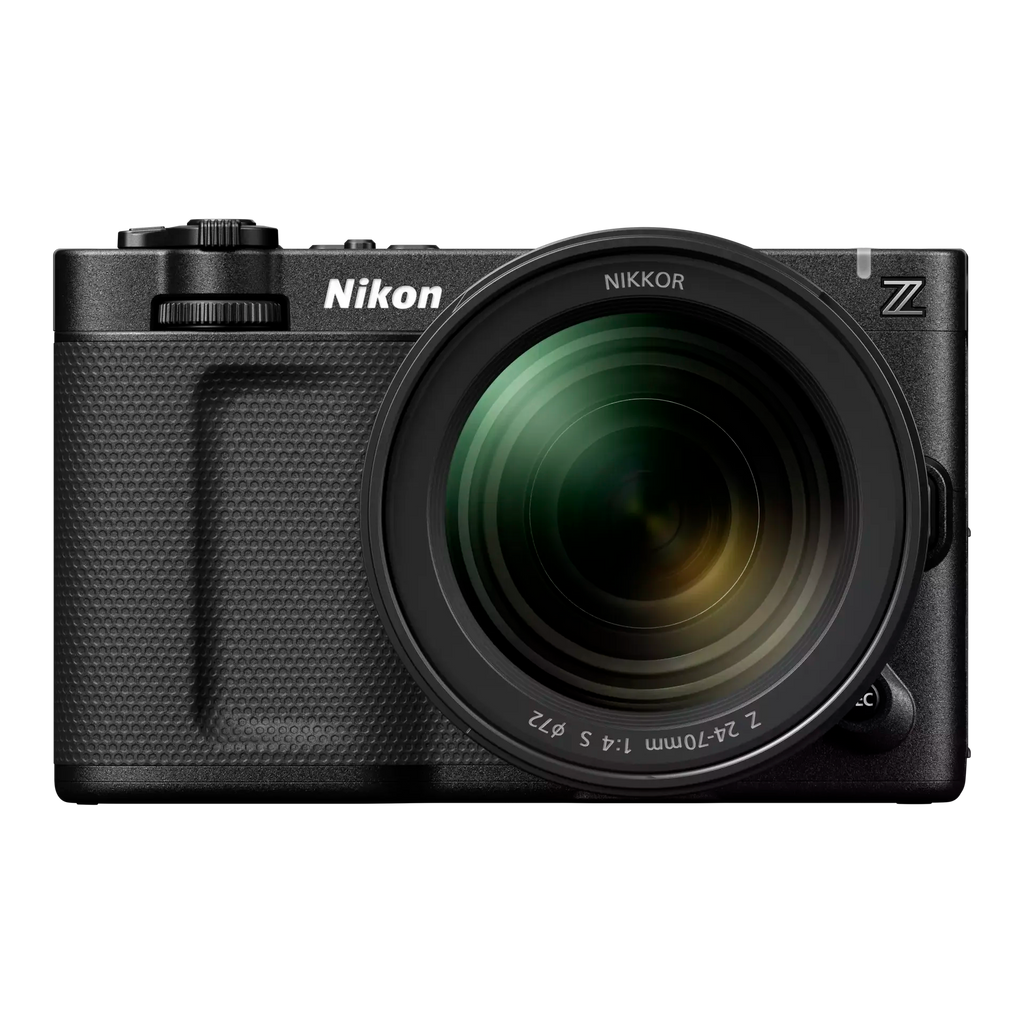

Nikon ZR Cinema Camera with 24-70mm f4 Lens Kit
Built for filmmakers and creators on the move, the Nikon ZR is a compact, cinema-first system that fuses Nikon engineering with RED colour science. A 24.5MP partially stacked full-frame sensor delivers 6K/60p RAW and 4K/120p, while in-camera 12-bit RAW (R3D NE / N-RAW / ProRes RAW), 32-bit float audio, and a 4" DCI-P3 vari-angle monitor streamline professional workflows. Dual card slots (CFexpress Type B + microSD), advanced AF, and robust stabilisation complete a lightweight rig. This kit includes the NIKKOR Z 24–70mm f/4 S—a versatile, travel-friendly zoom.
ZR Camera — Key Features
-
Full-frame cinema camera combining RED & Nikon technologies
-
24.5MP partially stacked sensor with 6K/60p and 4K/120p recording
-
EXPEED 7 processor for faster readout, reduced rolling shutter, and low noise
-
12-bit RAW in-camera: R3D NE, N-RAW, ProRes RAW
-
Delivery codecs: ProRes 422 HQ, H.265, H.264
-
Dual Base ISO 800/6400, 14+ stops dynamic range
-
World’s first in-camera 32-bit float audio + digital shoe mic support
-
4" DCI-P3 monitor, 3070k-dot, 1000 cd/m², 16:10, up to 10 monitor LUTs
-
9 AF recognition modes with subject tracking & breathing compensation
-
Shutter-angle control 5.6°–360° for cinematic motion blur
-
5-axis IBIS up to 7.5 stops
-
Preloaded RED LUTs, 4 cinematic presets, 9 downloadable colour profiles
-
Frame.io camera-to-cloud for remote collaboration
-
Silent fanless design: ~95 min battery / 125 min via USB-C recording
-
Dual slots: CFexpress Type B (RAW) + microSD (proxy/backup)
-
Z mount with wide compatibility + full rig expansion (cages, XLR, monitors)
RED Colour Science & In-Camera RAW
Integrate the ZR into RED pipelines with RED Log3G10 and RedWideGamutRGB for consistent tone and colour. Record 12-bit RAW internally (R3D NE / N-RAW / ProRes RAW) for maximum latitude, or switch to ProRes/H.265/H.264 for speed. Load up to 10 LUTs for monitoring without baking the look.
Sensor, Processor & Dynamic Range
The 24.5MP full-frame, partially stacked sensor plus EXPEED 7 enables high-frame-rate RAW (6K/60p, 4K/120p), faster readout, and cleaner motion. Dual Base ISO 800 & 6400 maintains 14+ stops of usable latitude for bright highlights and clean shadows.
32-bit Float Audio
Capture dialogue, music, and ambience with 32-bit float headroom—recover levels in post without clipping. The digital shoe mic adds three pickup patterns with PURE and FOCUS modes, cable-free.
Monitoring & On-Camera Control

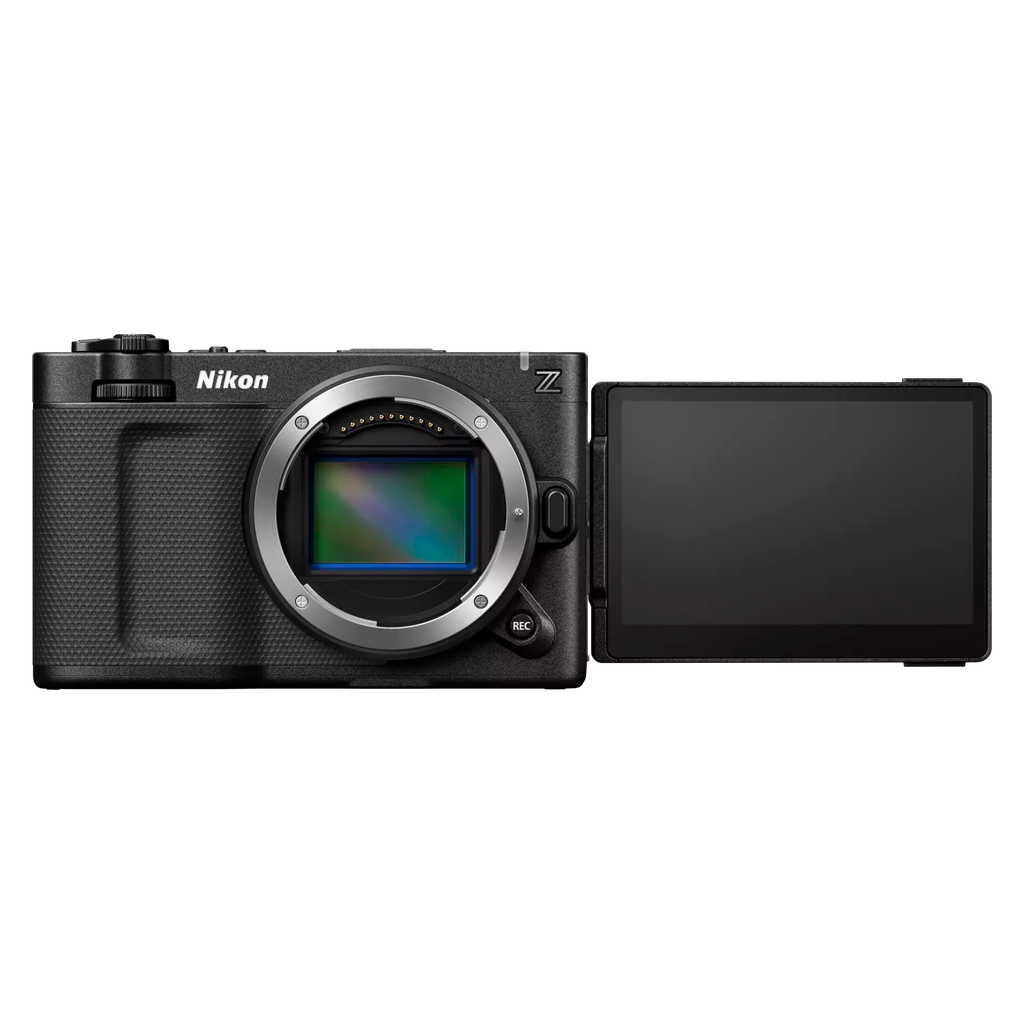

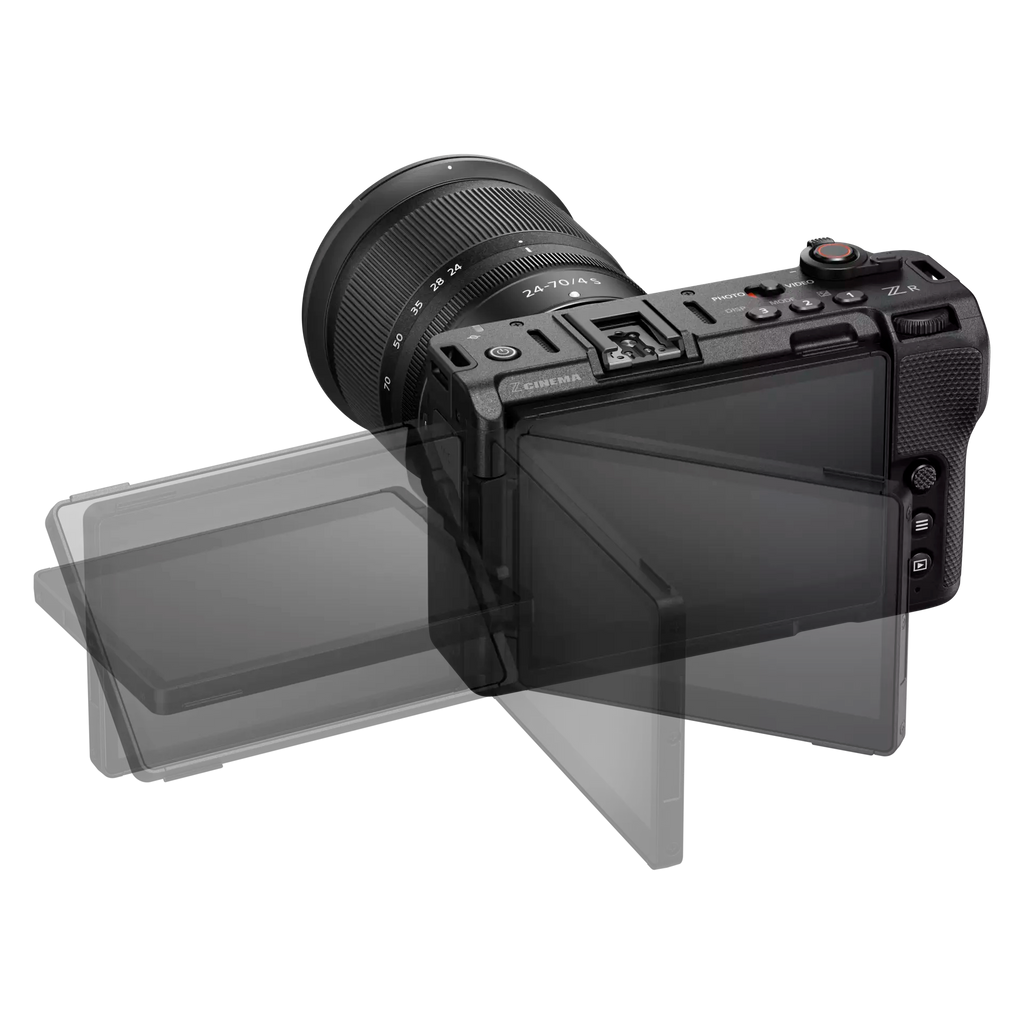

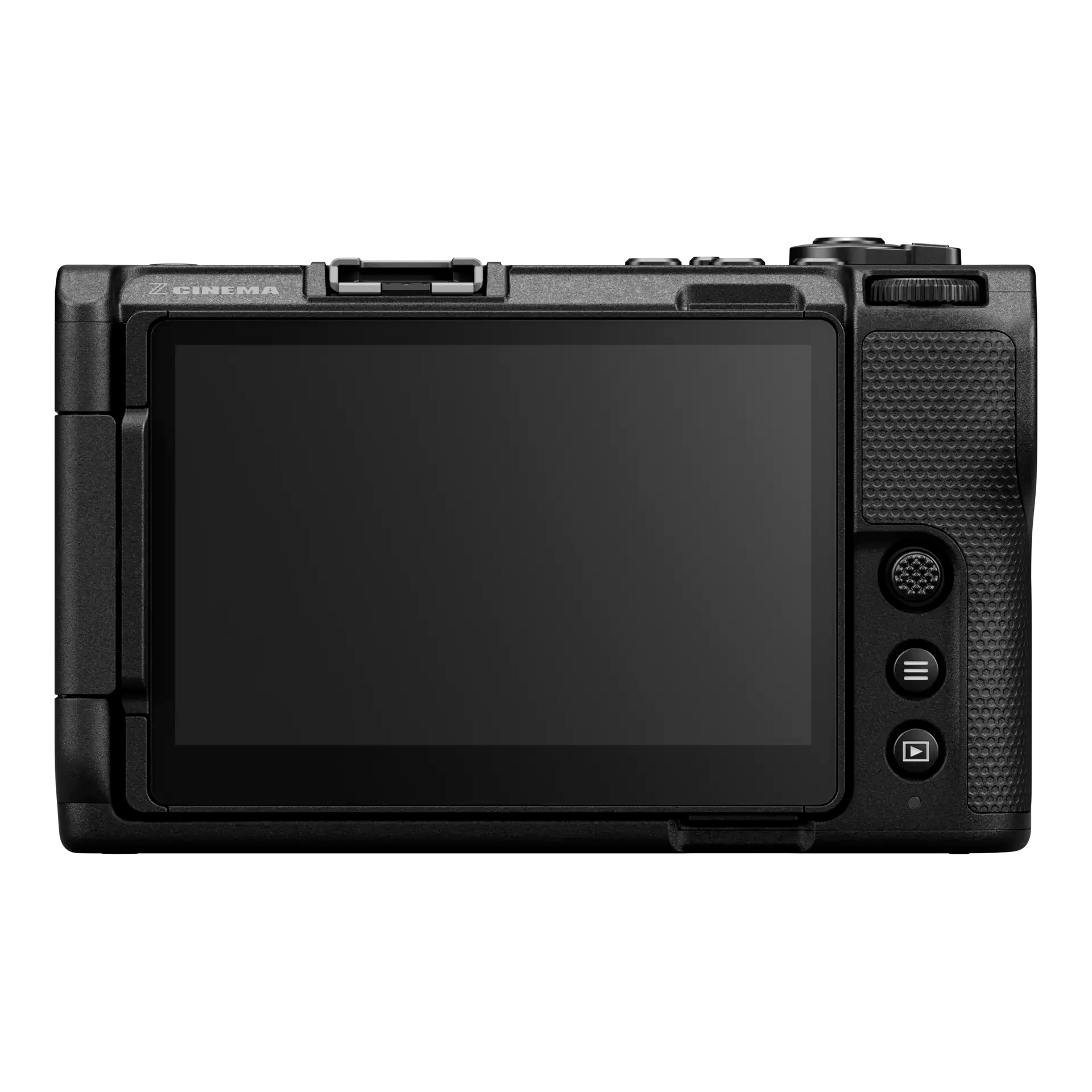

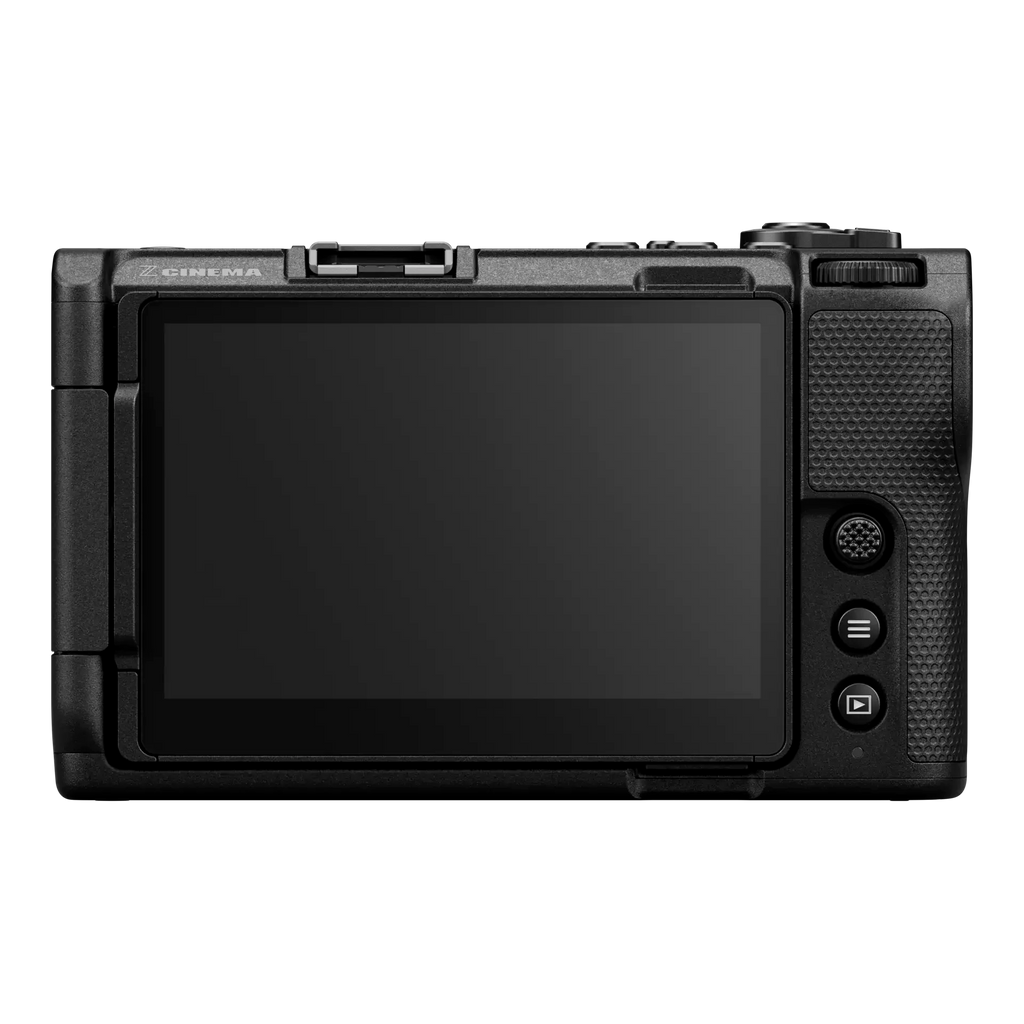

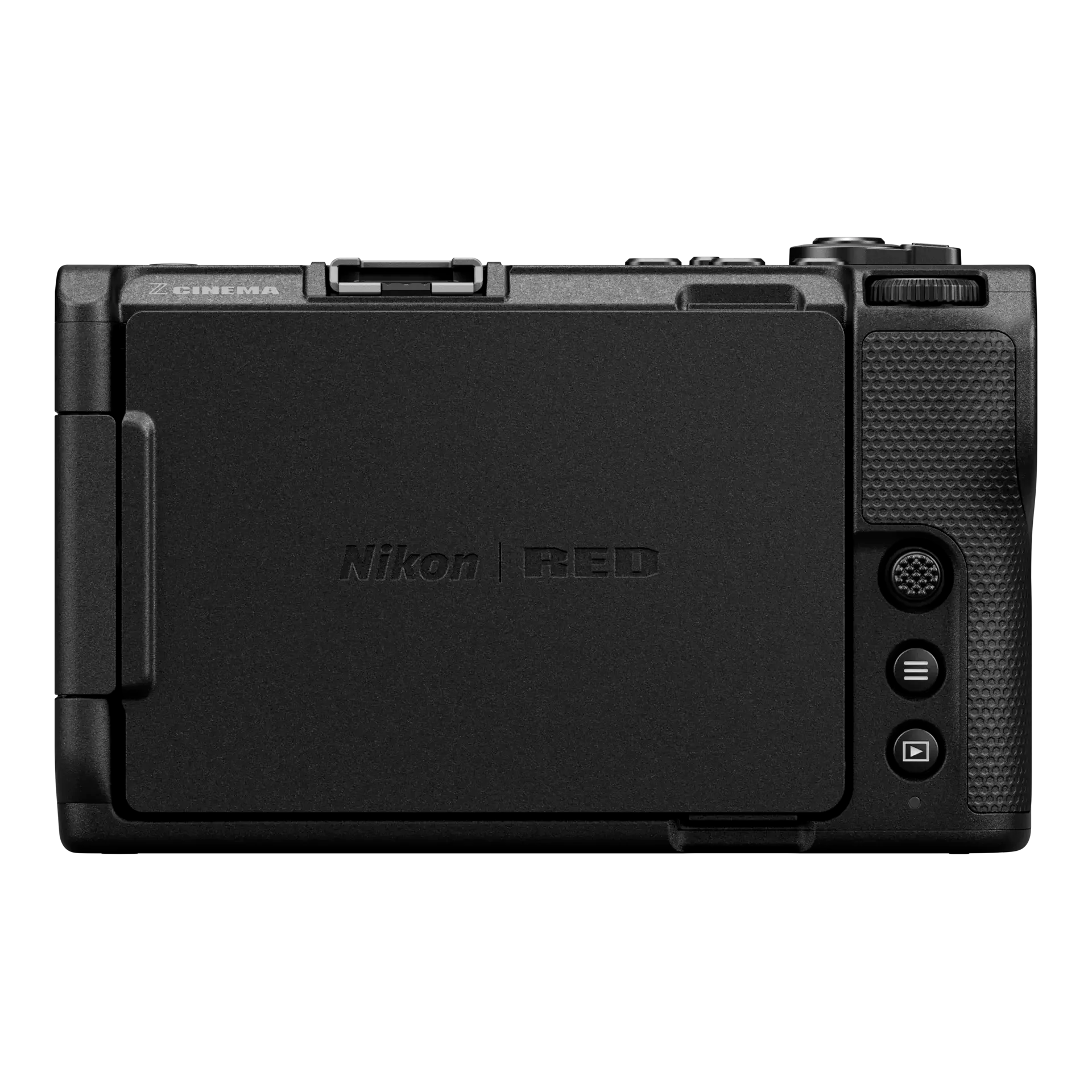

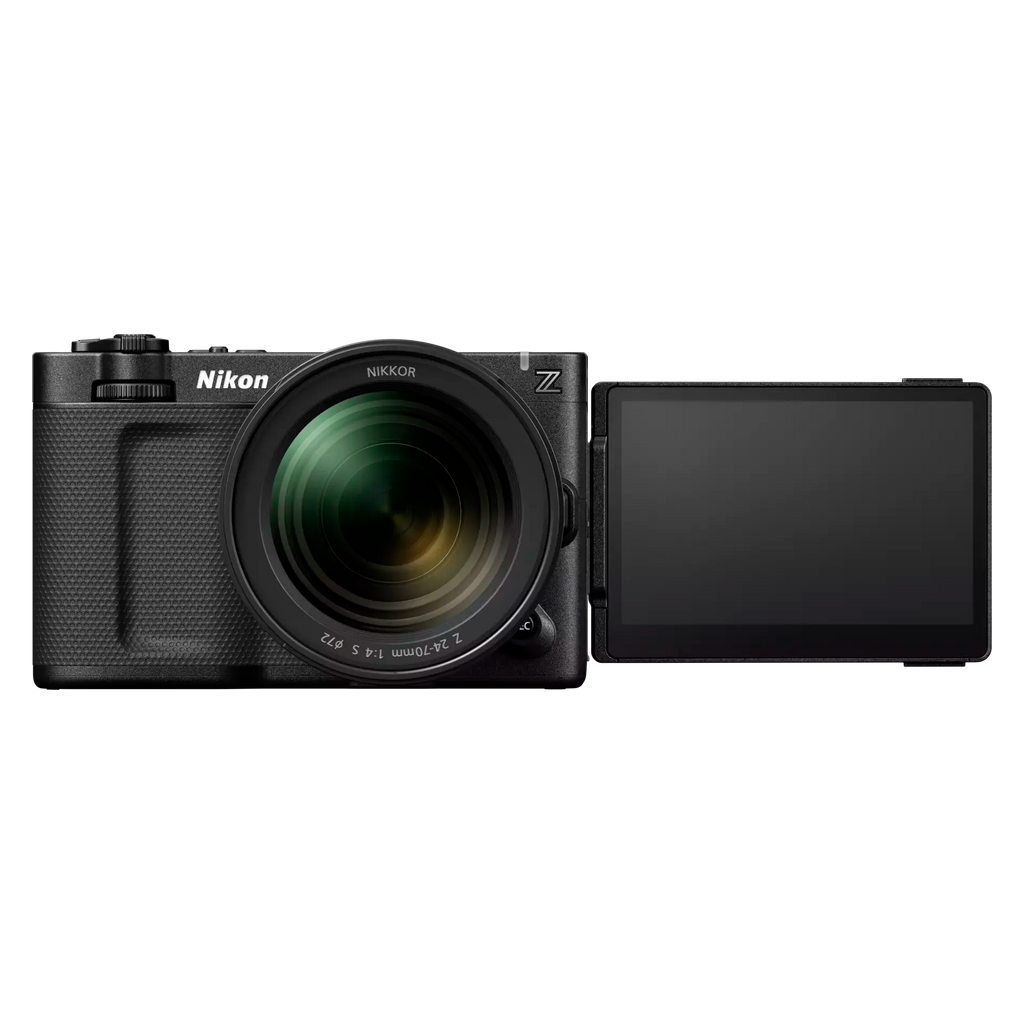

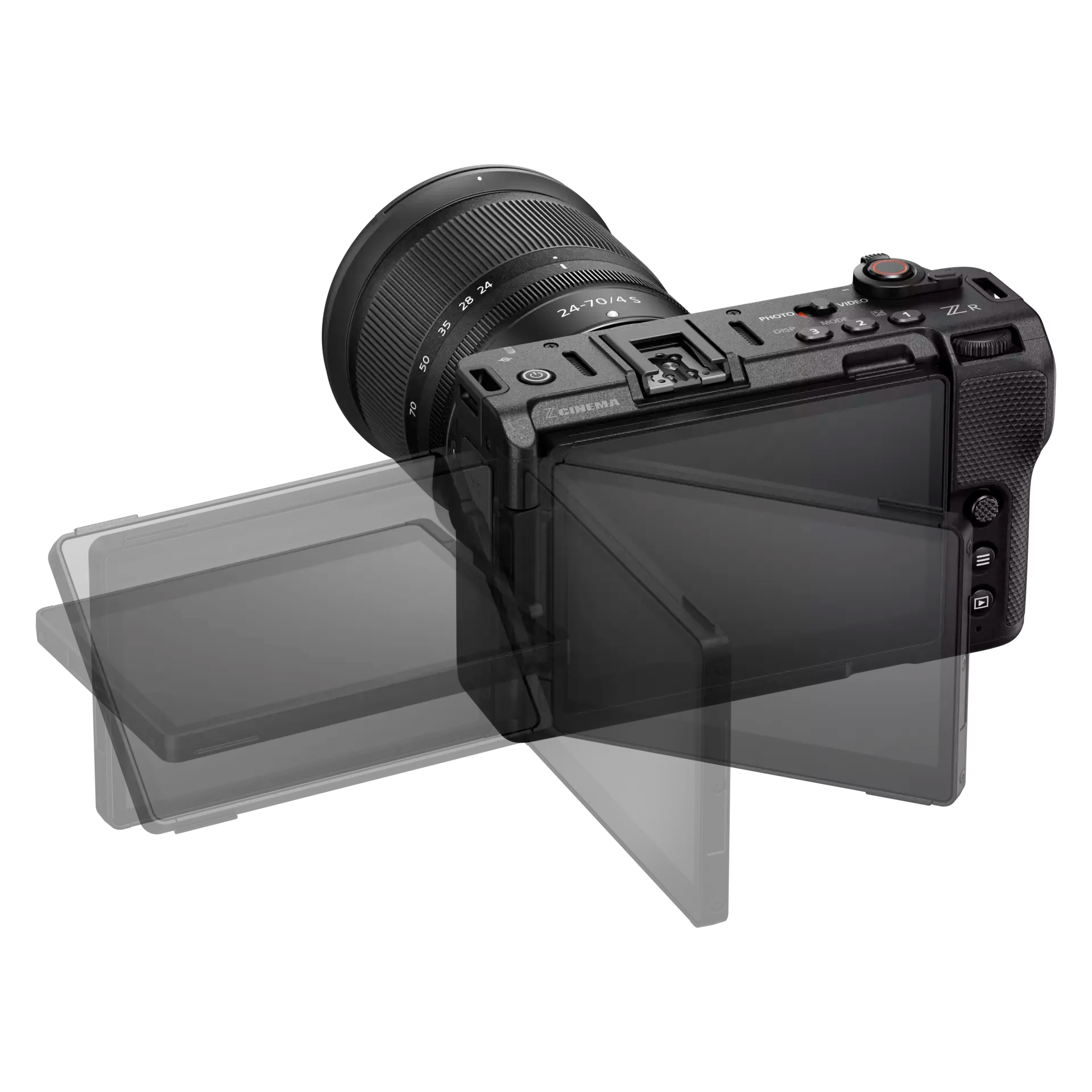

Operate confidently via the 4" vari-angle DCI-P3 touchscreen (3070k dots, 1000 nits). Quick menus keep core video controls close; vertical recording support and shutter-angle adjustments align the ZR with cinema standards.
Autofocus & Stabilisation
Nine subject-recognition modes track people, animals, and vehicles. Focus-breathing compensation keeps framing steady during racks. 5-axis IBIS (up to 7.5 stops) stabilises handheld and complements gimbal work.
Production Integration & Media
Frame.io C2C accelerates review and edit. USB-C handles power and data. Dual media lets you record RAW to CFexpress Type B while saving proxies/backups to microSD. The Z mount welcomes native and adapted cine glass.

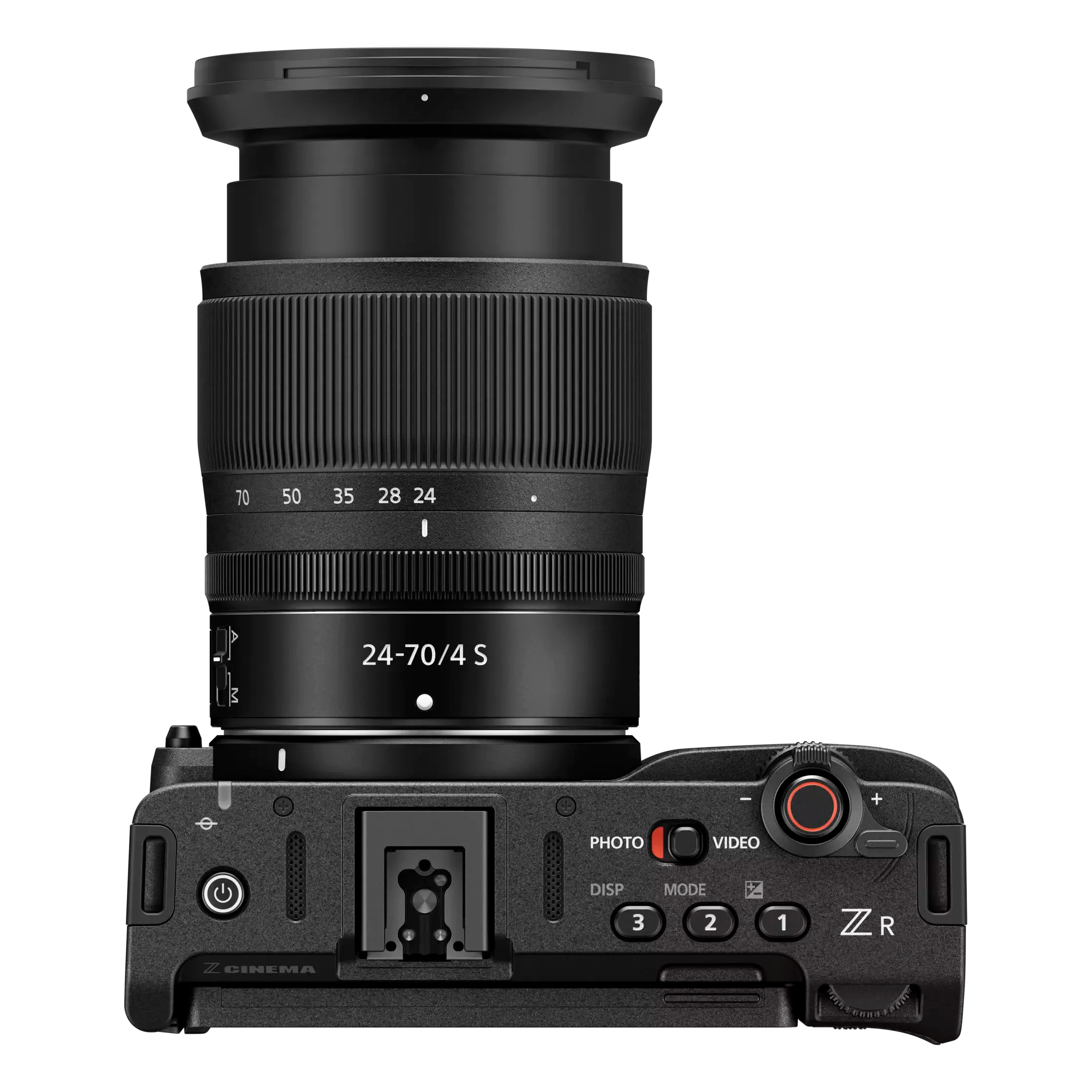

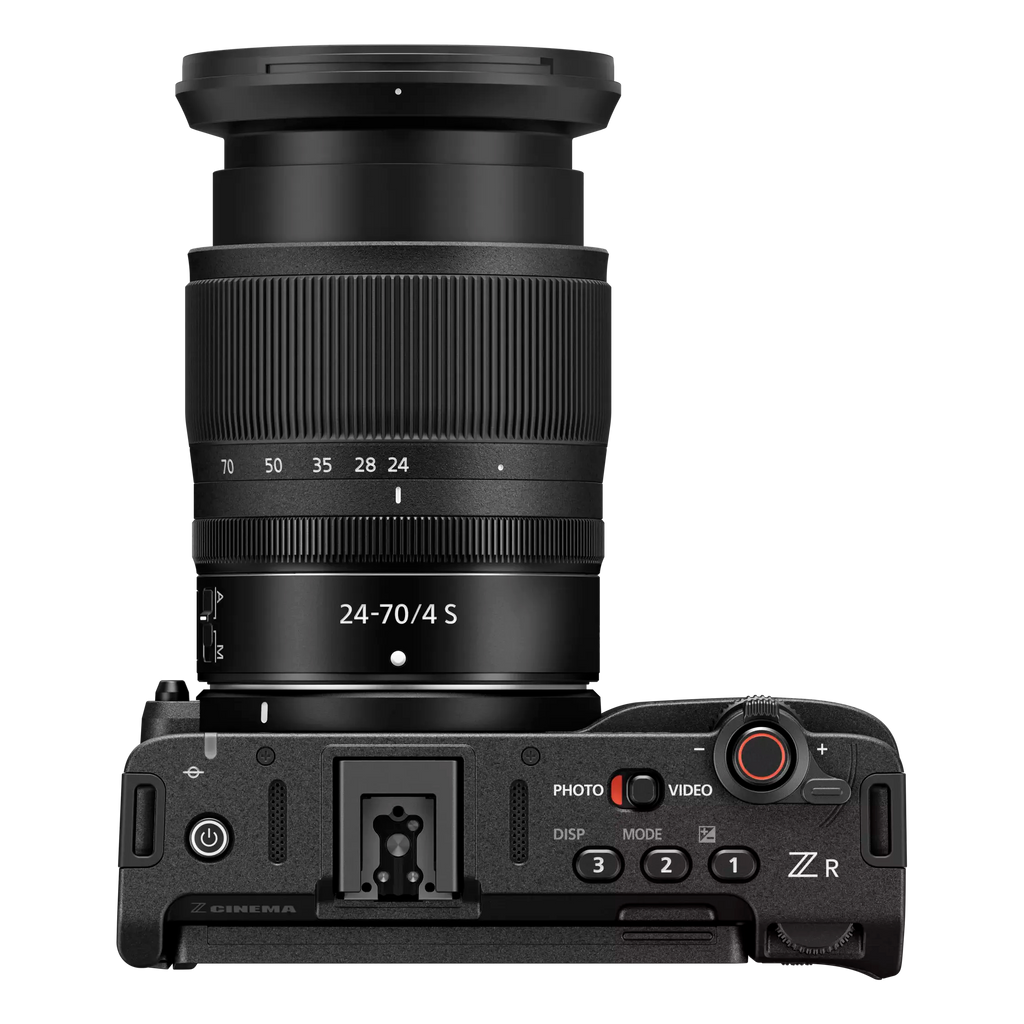

NIKKOR Z 24–70mm f/4 S — Key Features
-
Versatile 24–70mm range: wide to short-tele for everyday shooting
-
Edge-to-edge clarity: advanced optics suppress aberrations across the zoom
-
0.3 m minimum focus maintained throughout the focal range
-
Retracting mechanism for compact carry without image-quality compromise
-
Weather-sealed: dust- and drip-resistant, built for real-world use
Lens specs: 14 elements in 11 groups • 7-blade rounded aperture • 72 mm filter thread • 0.3 m min focus • 0.3× max reproduction • 77.5 × 88.5 mm (retracted) • 500 g
What’s in the Box
-
Nikon ZR Cinema Camera
-
NIKKOR Z 24–70mm f/4 S Lens
-
EN-EL15c Li-ion Battery (2280 mAh)
-
UC-E25 USB-C Cable
-
BS-D1 Digital Accessory Shoe Cover
-
BF-N1 Body Cap
-
AN-DC26 Camera Strap
Product Specifications
-
Sensor Size: Full Frame • Effective Resolution: 24.5MP
-
Dynamic Range: 14+ stops • S/N Ratio: 77 dB
-
Frame Rates: 6K up to 60p (RAW) • 4K up to 120p (RAW, 1.5× crop at 120p) • FHD up to 240p (non-RAW)
-
Recording Formats: 12-bit RAW (R3D NE, N-RAW, ProRes RAW) • 10-bit (ProRes 422 HQ, H.265) • 8-bit (H.264)
-
Recording Media: CFexpress Type B, microSD (dual slots)
-
Monitor: 4" / 3070k-dot / 1000 cd/m² / DCI-P3 coverage
-
Audio: In-camera 32-bit float, digital shoe mic (3 patterns, PURE/FOCUS)
-
Outputs/Workflow: USB-C power & data • Frame.io C2C integration
-
ISO (Dual Base): 800 & 6400
-
Stabilisation: 5-axis IBIS up to 7.5 stops
-
Dimensions: 133 × 80.5 × 48.7 mm • Weight: 540 g
-
Power: Rechargeable battery or USB-C continuous power
FAQs
Is the Nikon ZR comparable to other Nikon models?
It shares sensor lineage with Z6 III, but ZR is cinema-first: in-camera R3D NE, 32-bit float audio, 4" DCI-P3 monitor, and shutter-angle controls optimise it for production.
Do I need an external monitor?
Usually not. The built-in 4" / 1000-nit / DCI-P3 screen is bright, colour-accurate, and large. It remains compatible with field monitors if your rig requires.
What audio options are supported?
In-body 32-bit float captures unclipped sound with recoverable headroom. Add the digital shoe mic or XLR adapters via accessories as needed.
How long can it record continuously?
Up to ~95 minutes on battery, ~125 minutes via USB-C power, with efficient thermal design for long takes.
Lens compatibility?
Yes—Z mount supports Nikon Z lenses and adapted third-party cine lenses for maximum creative flexibility.
