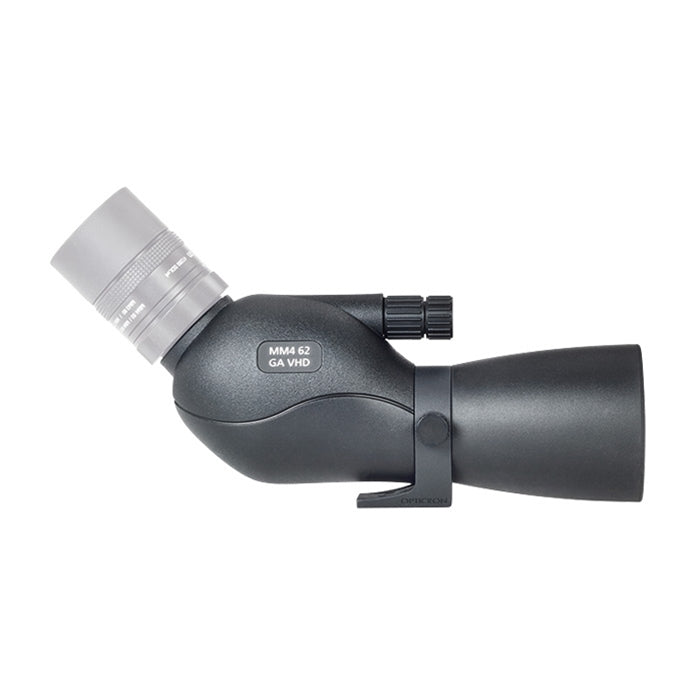

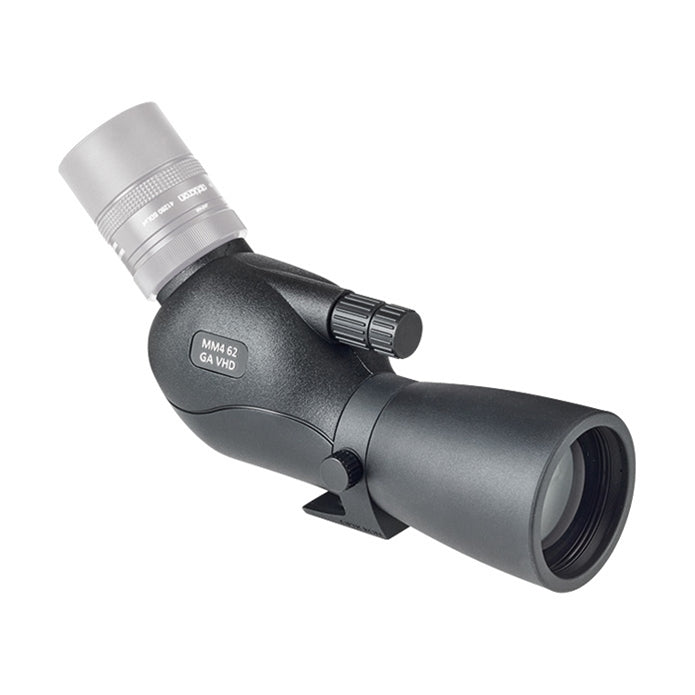

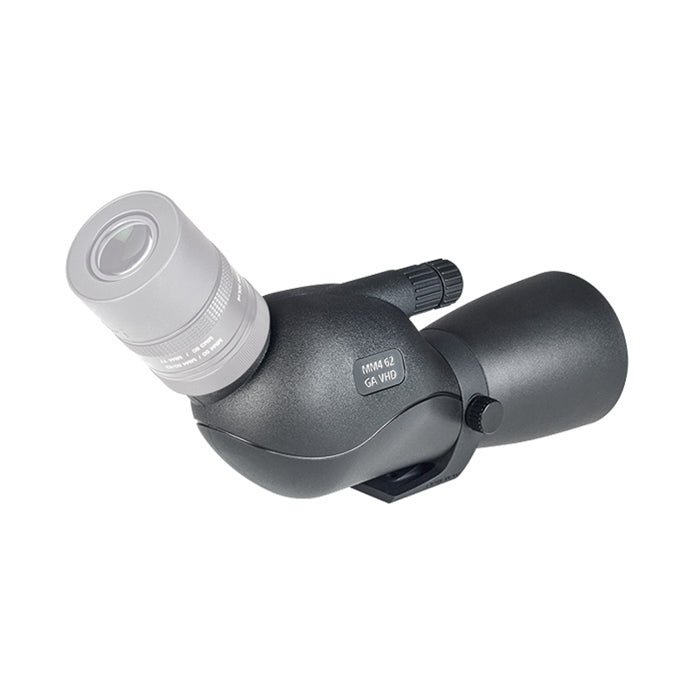

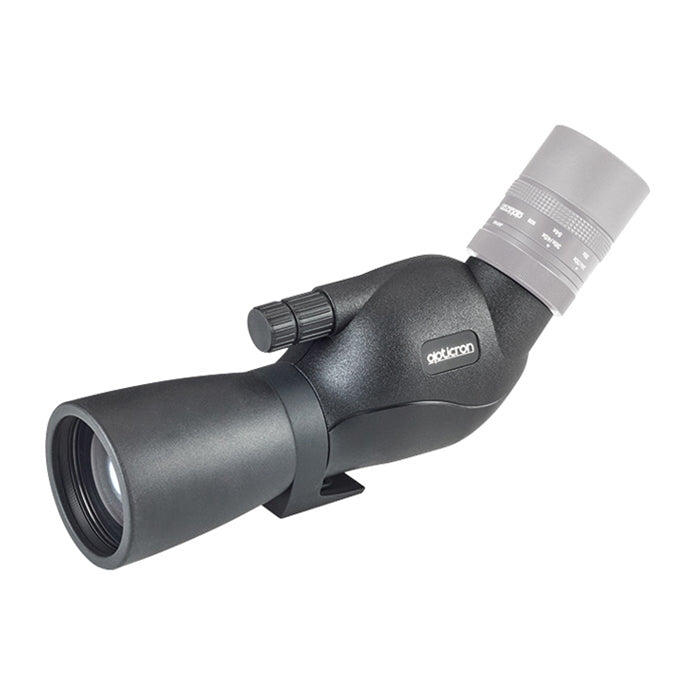

Opticron MM4 62 GA ED VHD/45 Travelscope body

Opticron MM4 62 GA VHD/45 Travelscope

The Opticron MM4 62 GA VHD/45 Travelscope combines high-quality Japanese optics with an exceptionally compact and lightweight design, making it an excellent choice for birdwatching, wildlife observation and long-range viewing while travelling.

Built around Opticron's philosophy of "smaller, lighter, brighter, sharper", the MM4 62 GA VHD/45 features a 62mm ED triplet objective lens, fully multi-coated VHD optical system and precise dual-speed focusing. Despite its impressive optical performance, the body measures just 235mm long and weighs only 788g, making it remarkably portable for a 62mm spotting scope.

The 45-degree angled body is compatible with a range of Opticron eyepieces, allowing users to configure the scope to suit their preferred style of observation and magnification requirements.

Key Features

• 62mm ED triplet objective lens – Designed to deliver excellent resolution, colour accuracy and contrast.

• VHD optical system – High-quality optics provide bright, sharp and detailed long-range views.

• Made in Japan – Designed and manufactured in Japan to Opticron's high optical standards.

• Exceptionally compact – Measures just 235mm in length for easy transportation.

• Lightweight 788g body – Comparable in weight to many full-size binoculars.

• 45° angled viewing – Comfortable for prolonged observation and particularly useful when sharing a scope between users.

• Fully multi-coated optics – Maximises light transmission for bright, high-contrast viewing.

• 9:1 dual-speed focusing – Wide focus wheel provides both rapid adjustment and precise fine focusing.

• Nitrogen-filled & waterproof – Designed for dependable outdoor performance in changing weather conditions.

• Rotating tripod sleeve – Large-footprint sleeve rotates through ±90° for flexible viewing positions.

• Durable rubber armour – Soft-touch textured protection improves grip and helps protect the scope in the field.

• Interchangeable eyepieces – Compatible with selected Opticron HR2/3, HDF and SDL eyepieces.

• Premier+ Guarantee – Covered by Opticron's Premier+ guarantee.

Smaller, Lighter, Brighter, Sharper

The MM4 series is designed for observers who want serious spotting-scope performance without carrying a large and cumbersome instrument.

At only 235mm long and 788g, the MM4 62 GA VHD/45 is remarkably compact for a 62mm scope. Its lightweight construction makes it ideal for birdwatchers, wildlife enthusiasts and travellers who regularly cover significant distances on foot.

At lower magnifications, its compact size and low weight can even make short periods of unsupported observation practical, while mounting the scope on a suitable tripod unlocks its full potential at higher magnifications.

62mm ED Triplet Objective

At the heart of the MM4 is a 62mm ED triplet objective lens, designed to deliver excellent image quality while maintaining the scope's compact dimensions.

The high-quality optical system helps control chromatic aberration and provides impressive resolution, contrast and colour fidelity. This makes fine plumage, markings and distant details easier to distinguish, particularly when observing demanding subjects at longer distances.

Fully Multi-Coated VHD Optics

Opticron's VHD optical system combines the ED triplet objective with fully multi-coated lenses and prisms to maximise light transmission and image quality.

The result is a bright, sharp and flat-field view with the clarity required for detailed wildlife and bird observation.

Precise 9:1 Dual Focus

The MM4 62 GA VHD/45 features a wide focus wheel with an accurate 9:1 ratio dual-focus system.

The main focusing action allows rapid adjustment when moving between subjects at different distances, while the fine-focus control enables precise adjustment when examining small details or working at higher magnifications.

Built for the Outdoors

A spotting scope designed for travel needs to cope with unpredictable conditions. The MM4 combines an aluminium alloy and polycarbonate body with full soft-touch NBR rubber armour for a balance of low weight, durability and secure handling.

The body is waterproof and nitrogen gas filled, helping protect the internal optical system when the scope is used outdoors in changing weather.

An integrated rubber objective cover provides additional protection for the front lens during transportation and field use.

Rotating Tripod Mount

The integrated tripod sleeve features a large footprint for stability and can rotate through ±90 degrees.

This allows the eyepiece position to be adjusted to suit different viewing situations and makes the scope easier to use when sharing between observers. A standard 1/4-inch connection provides compatibility with suitable photographic and spotting-scope tripod heads.

Interchangeable Opticron Eyepieces

The MM4 62 GA VHD/45 is supplied as a body-only spotting scope, allowing you to select the Opticron eyepiece best suited to your requirements.

Recommended options for general observation include:

• Opticron SDLv4 15-45x – Product code 41280

• Opticron HR3 16-48x – Product code 41145

The MM4 is also compatible with selected Opticron HR2/3, HDF and SDL eyepieces, making it particularly attractive to existing Opticron fieldscope owners who may already have a compatible eyepiece.

Ideal for Birdwatching & Wildlife

The combination of a relatively large 62mm objective with a lightweight travel-friendly body makes the MM4 particularly versatile.

It's an excellent choice for:

• Birdwatching

• Wildlife observation

• Nature reserves and wetlands

• Coastal and estuary observation

• Long-distance viewing

• Hiking and travelling

• Digiscoping with suitable accessories

Specifications

What's in the Box?

• 1 x Opticron MM4 62 GA VHD/45 Travelscope Body

• 1 x Integrated Rubber Objective Lens Cover

Please note: This product is supplied in body-only format. An eyepiece is not included and must be purchased separately unless you already own a compatible Opticron HR2/3, HDF or SDL eyepiece.
