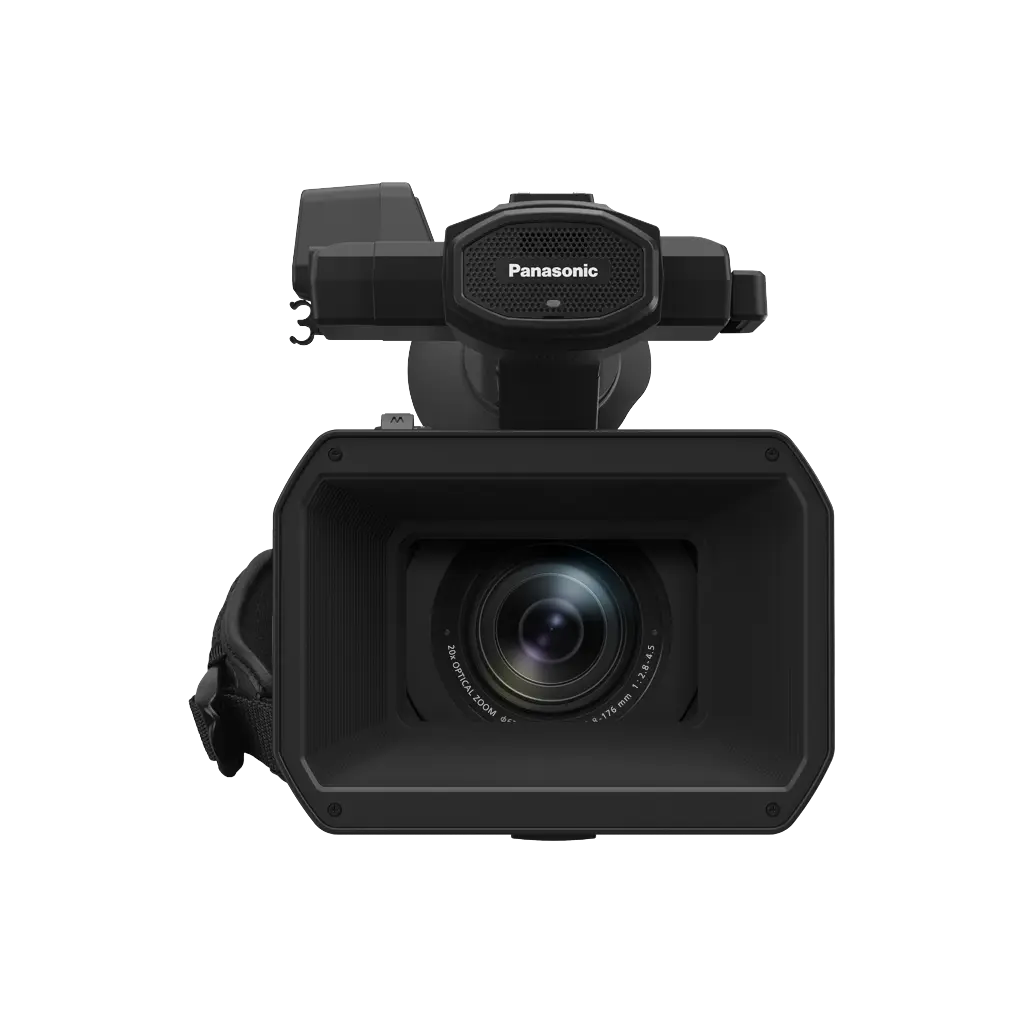

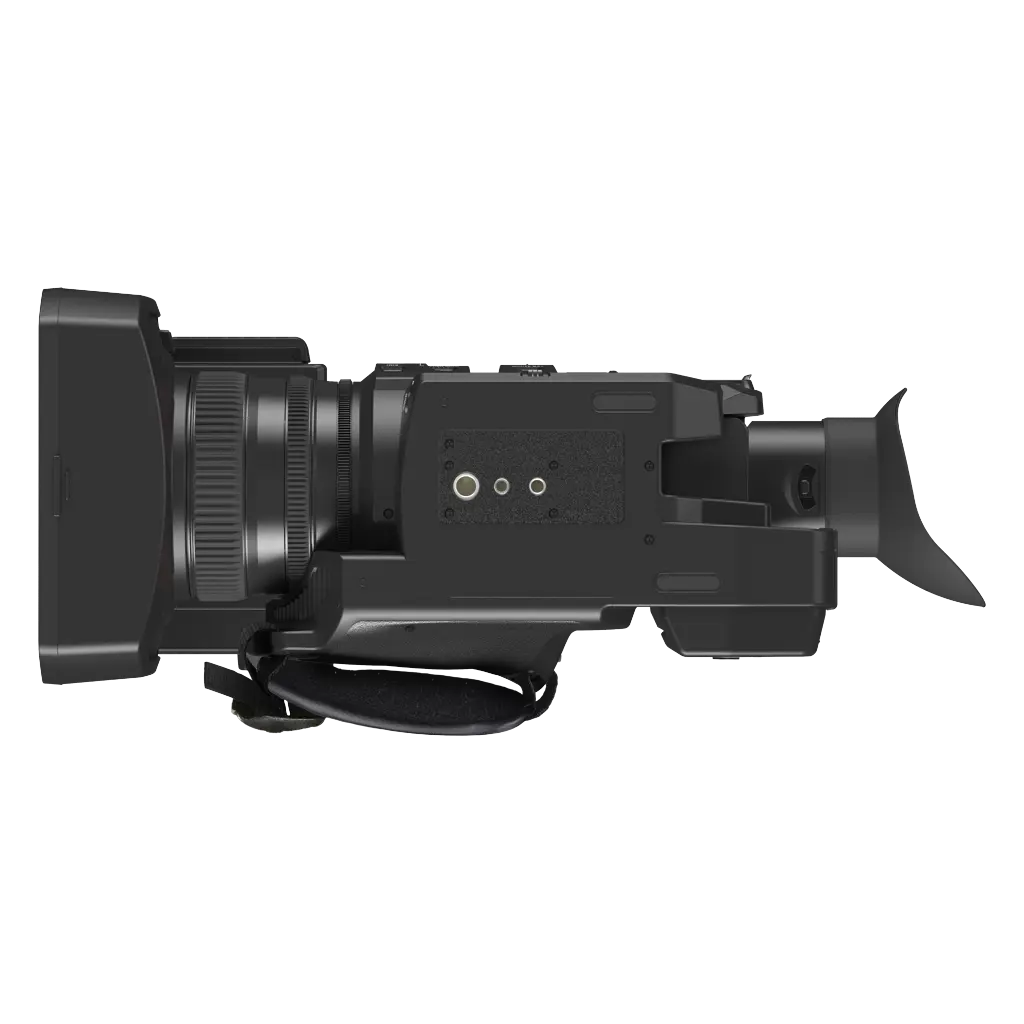

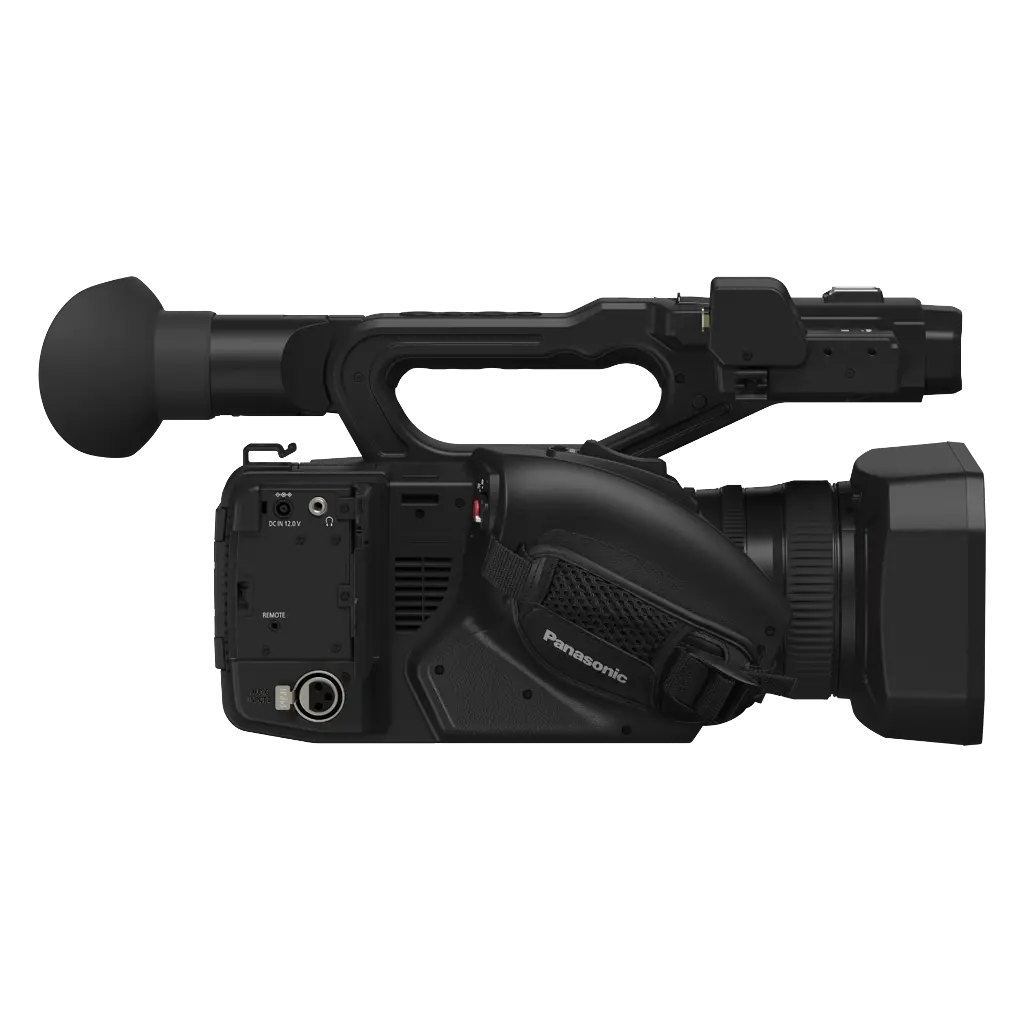

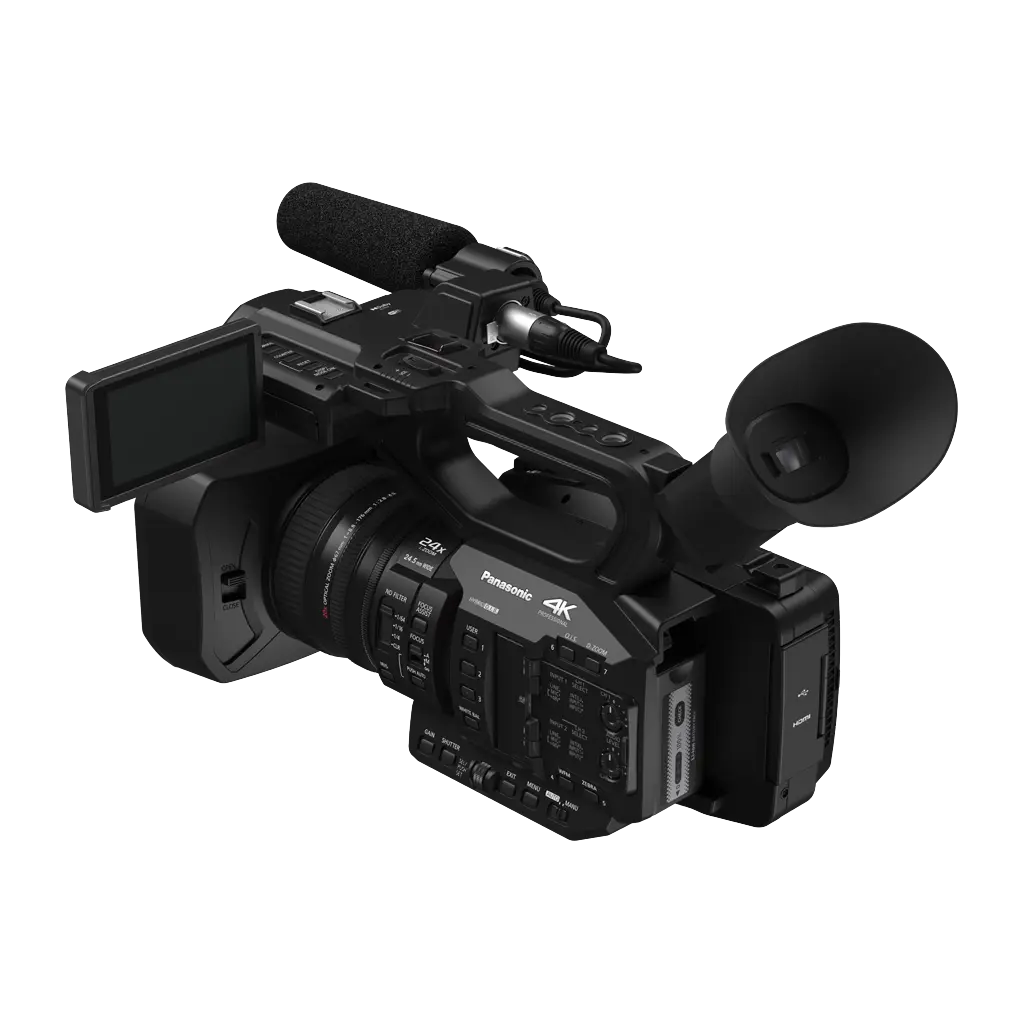

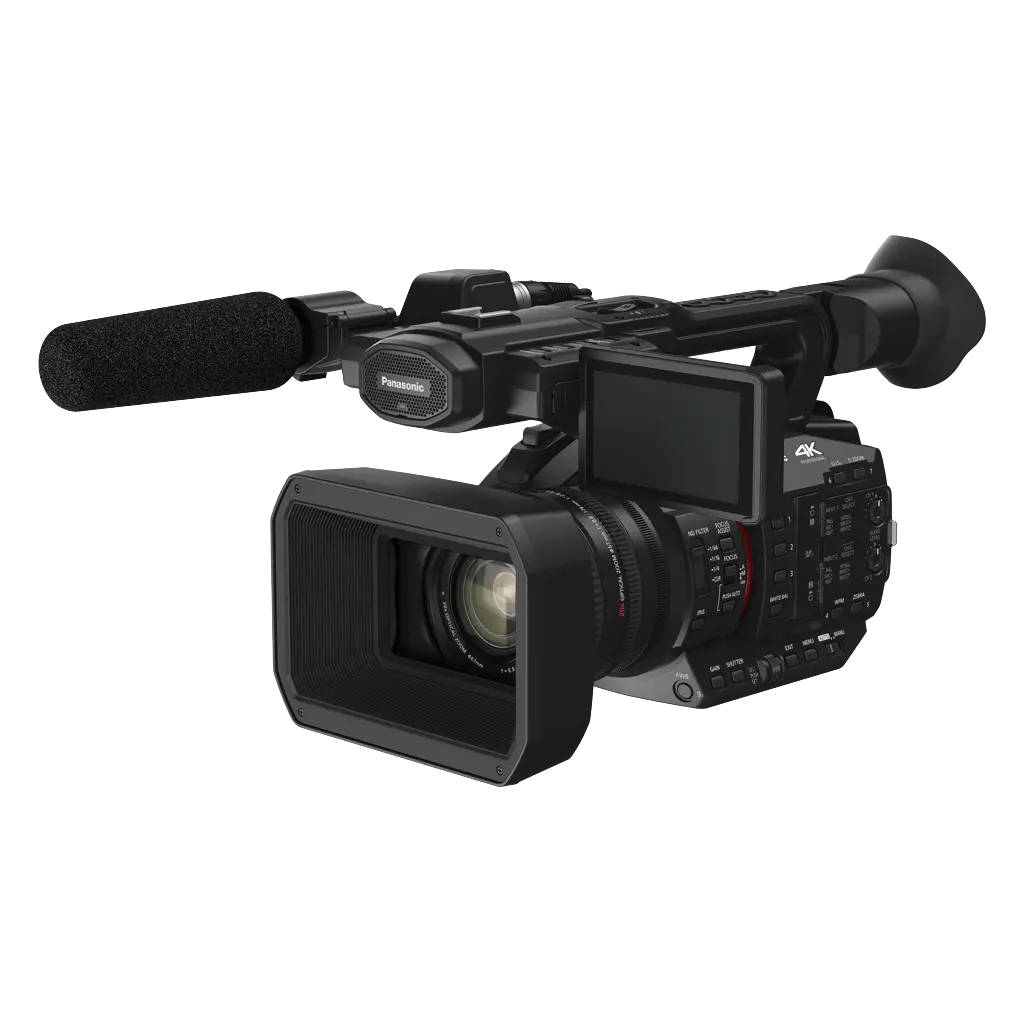

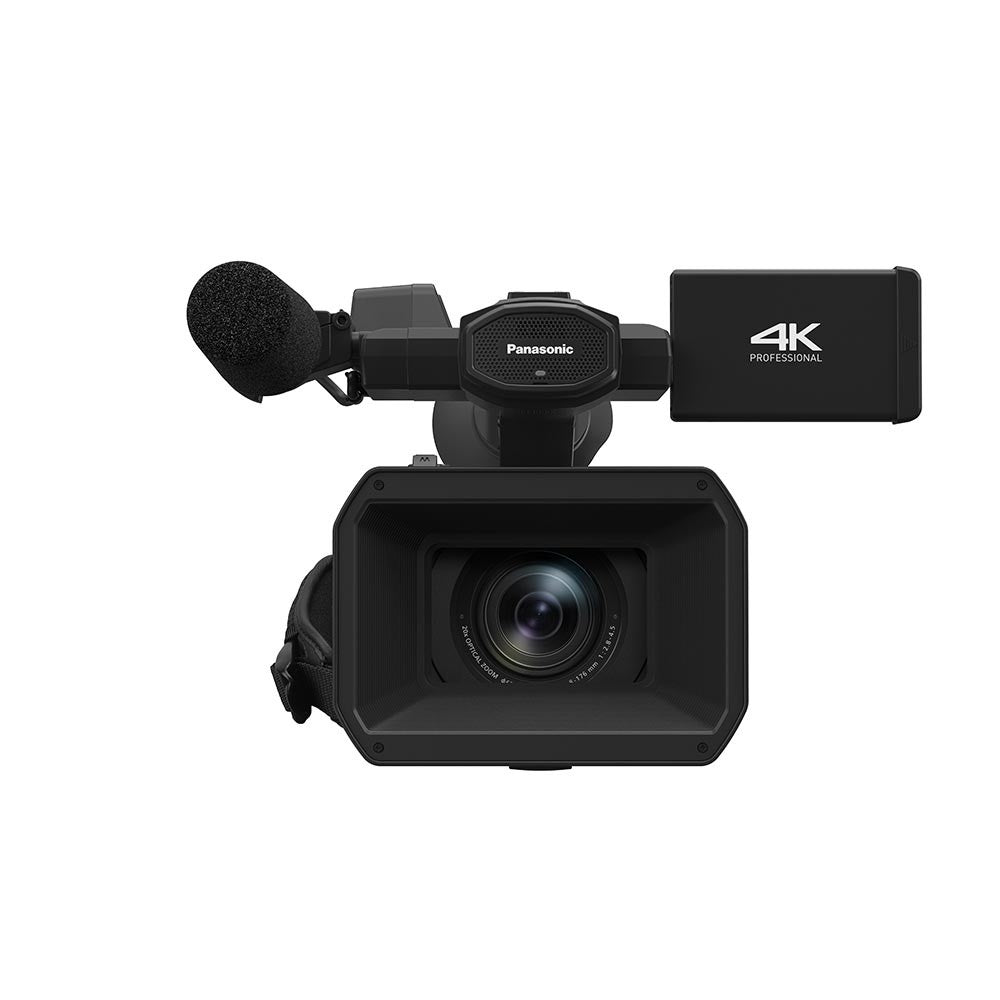

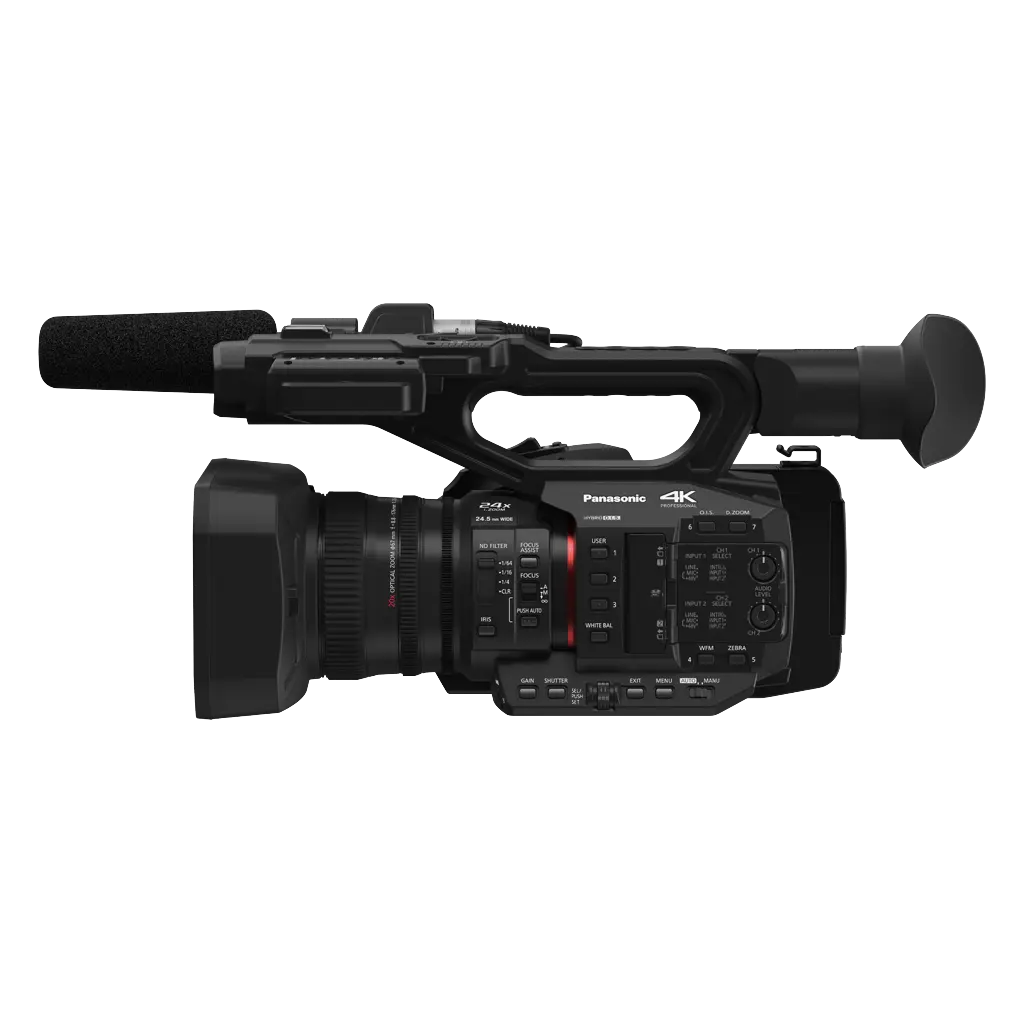

Panasonic HC-X20E 4K Camcorder

Panasonic HC-X20E 4K Professional Camcorder – Black

The Panasonic HC-X20E 4K Professional Camcorder is built for demanding video production environments where performance, reliability and mobility are essential. Featuring a large 1.0-inch sensor, 4K 60p recording, professional audio inputs and integrated live streaming capabilities, the HC-X20E delivers broadcast-quality video in a compact handheld design.

Ideal for documentary filmmakers, event videographers, journalists and content creators, this professional camcorder combines advanced imaging technology with professional controls and connectivity.

Large 1.0-Inch Sensor for Exceptional Image Quality

At the heart of the HC-X20E is an effective 15-megapixel 1.0-type (1-inch) sensor that captures more light than smaller sensors, producing improved dynamic range, richer colour and superior detail.

This larger sensor enables high-quality 4K video recording with cinematic depth, making it suitable for professional productions, interviews and broadcast work.

Wide 24.5mm Lens with 20x Optical Zoom

The integrated lens covers a versatile focal range from 24.5mm wide-angle to 490mm telephoto (35mm equivalent) with a 20x optical zoom.

This allows you to capture expansive wide shots for landscapes or interiors, as well as distant subjects during sports, events or wildlife filming.

Additional digital zoom capabilities include:

• i.ZOOM up to 24x in 4K

• Up to 32x zoom in Full HD

This flexibility makes the HC-X20E suitable for a wide variety of professional shooting scenarios.

Professional 4K 10-Bit Recording

The camcorder supports high-quality 10-bit recording formats, delivering greater colour depth and improved grading flexibility in post-production.

Recording options include:

• 4K 60p / 50p 4:2:0 10-bit recording

• 4K 30p 4:2:2 10-bit internal recording

• High bit-rate recording up to 200 Mbps

This ensures professional-grade image quality suitable for broadcast, streaming and commercial video production.

Super Slow Motion and Variable Frame Rate

The Super Slow Motion and VFR (Variable Frame Rate) features provide creative shooting possibilities for dramatic video effects.

• Full HD slow motion up to 120 fps / 100 fps

• 4K VFR recording from 2 to 60 fps

These options allow you to capture smooth slow-motion sequences or stylised time-based footage.

Advanced Autofocus with Face Detection

The HC-X20E features 4K High-Precision Autofocus with advanced Face Detection and Colour Recognition tracking.

This ensures reliable subject tracking and accurate exposure, even when subjects move across the frame or turn away from the camera.

5-Axis HYBRID O.I.S.+ Image Stabilisation

The camcorder incorporates 5-Axis HYBRID O.I.S.+ stabilisation, combining optical and electronic stabilisation to reduce camera shake during handheld shooting.

The Ball O.I.S. system improves correction for subtle hand movements and reduces wear on the stabilisation mechanism.

This ensures smooth footage when walking, panning or filming at long focal lengths.

Professional Audio with Dual XLR Inputs

The HC-X20E includes two professional XLR audio input terminals with selectable MIC/LINE options and +48V phantom power.

This allows connection of professional microphones for high-quality audio recording.

The camera also supports 24-bit Linear PCM audio recording, delivering clear and accurate sound for interviews, documentaries and broadcast productions.

Built-In Live Streaming and Wireless Control

The camcorder supports Full HD live streaming via RTSP, RTP, RTMP and RTMPS protocols, allowing direct streaming to platforms such as YouTube and Facebook.

A built-in Wi-Fi module enables wireless camera control using the HC ROP mobile app, allowing remote operation from a smartphone or tablet with live preview.

For more stable network connections, the camera also supports wired LAN via a USB-LAN adapter (sold separately).

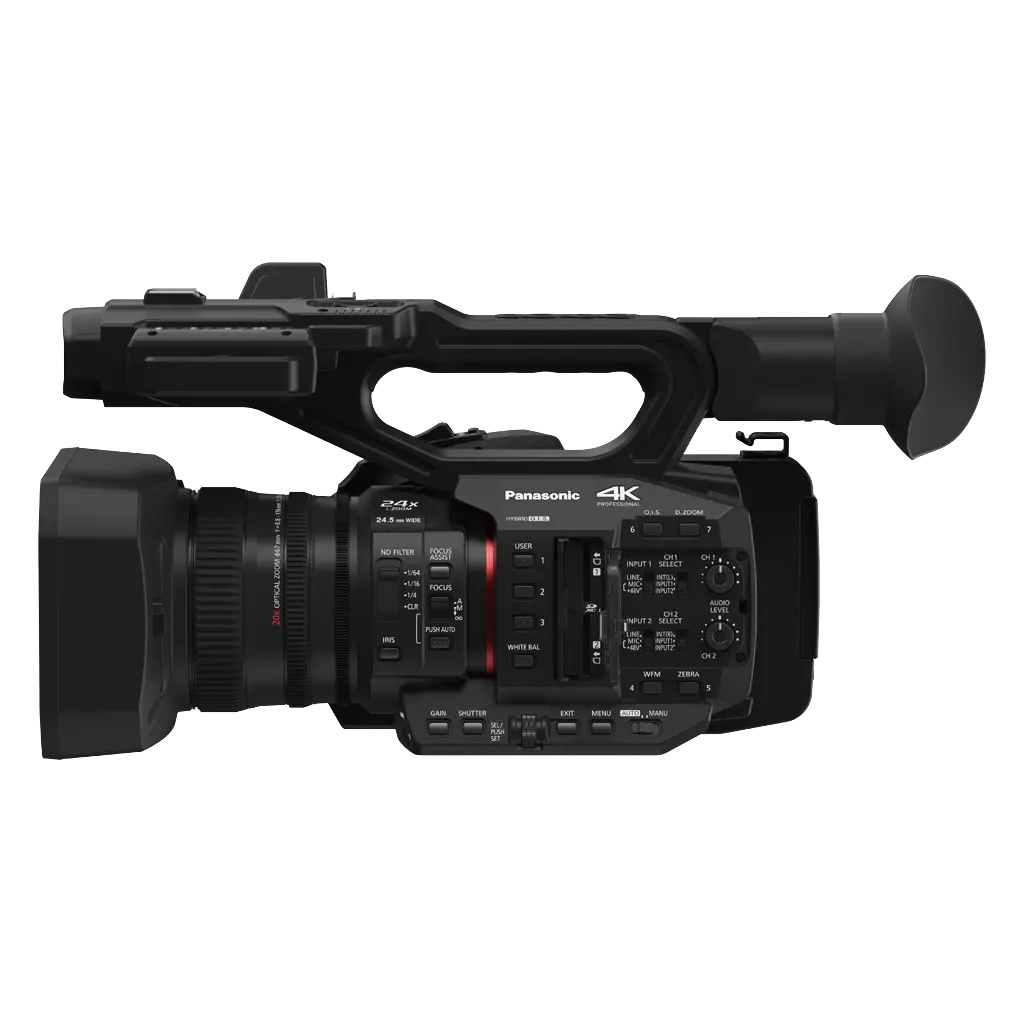

Professional Controls and Workflow

The HC-X20E is designed for fast, intuitive operation during professional filming.

Key operational features include:

• Triple manual rings for focus, zoom and iris control

• Built-in ND filters (Clear, 1/4, 1/16, 1/64) for exposure control

• Dual SD card slots for relay, backup or simultaneous recording

• 14 customisable user buttons with 45 assignable functions

These controls allow videographers to adapt quickly to changing shooting environments.

High-Visibility LCD and Professional Viewfinder

A 3.5-inch high-brightness LCD touchscreen with 2,760k-dot resolution ensures excellent visibility even in bright outdoor conditions.

The camcorder also includes a 2,360k-dot OLED electronic viewfinder with a tiltable design and comfortable eyecup for extended shooting sessions.

Key Features

• 1.0-inch 15MP sensor for professional image quality

• 4K 60p / 50p 10-bit recording

• 4K 30p 4:2:2 10-bit internal recording

• Wide 24.5mm lens with 20x optical zoom

• i.ZOOM up to 24x in 4K and 32x in Full HD

• Super slow motion and VFR (2–60 fps)

• 5-Axis HYBRID O.I.S.+ stabilisation

• High-precision autofocus with face detection

• Dual XLR audio inputs with phantom power

• Full HD live streaming capability

• Built-in Wi-Fi for wireless camera control

• Triple manual lens rings for professional operation

• Dual SD card slots for relay and backup recording

• 3.5-inch high-brightness LCD touchscreen

Technical Specifications

Important Charging Information

As part of Panasonic’s environmental commitment, the HC-X20E uses a universal USB-C charging port.

A USB cable and AC adapter are not included. Users are encouraged to reuse existing compatible accessories or purchase them separately if required.

Professional 4K Performance with Exceptional Mobility

The Panasonic HC-X20E 4K Professional Camcorder delivers powerful imaging performance, professional audio and advanced connectivity in a highly portable form factor. Whether covering live events, streaming broadcasts or producing documentary content, this camcorder provides the tools professionals need to capture high-quality video with confidence.
