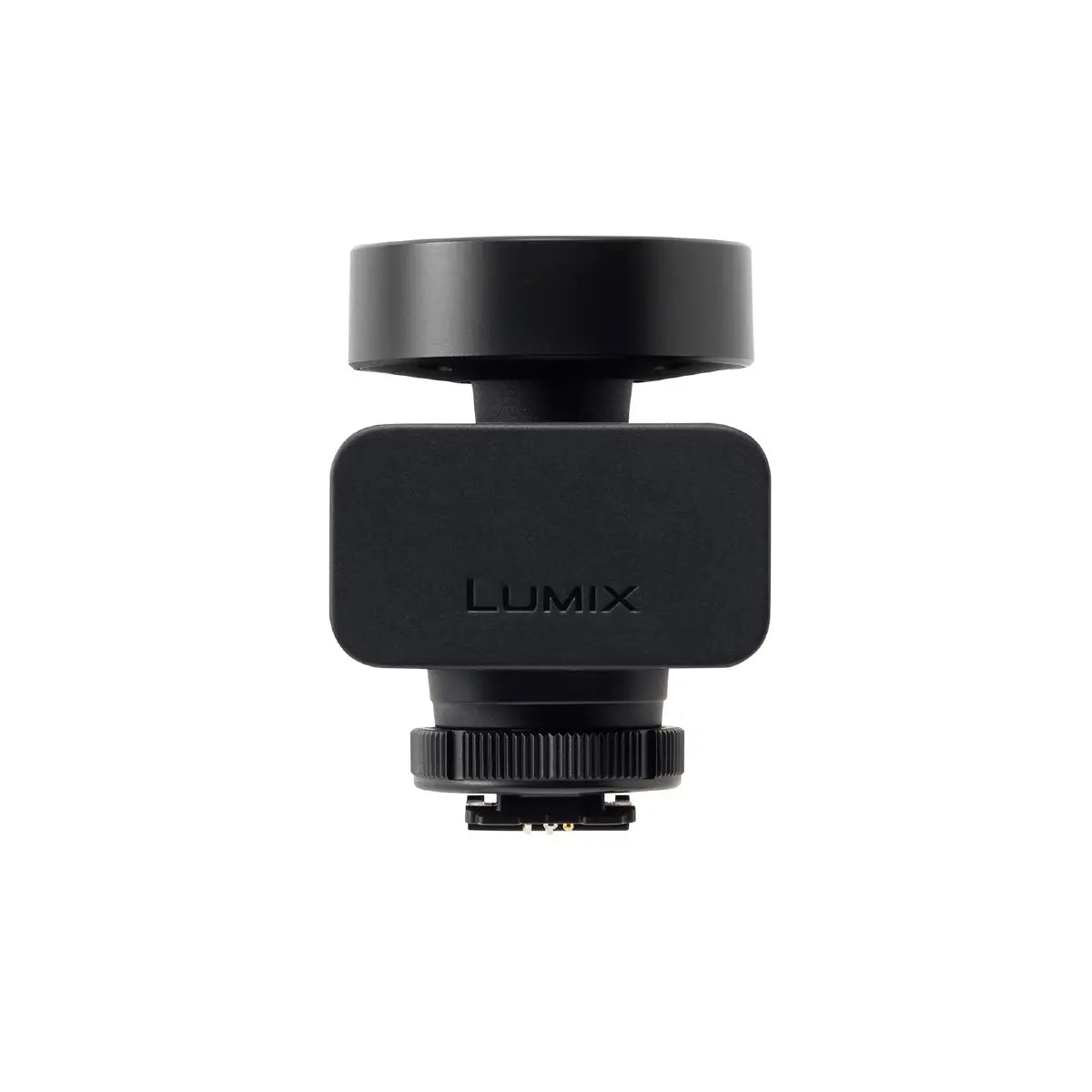

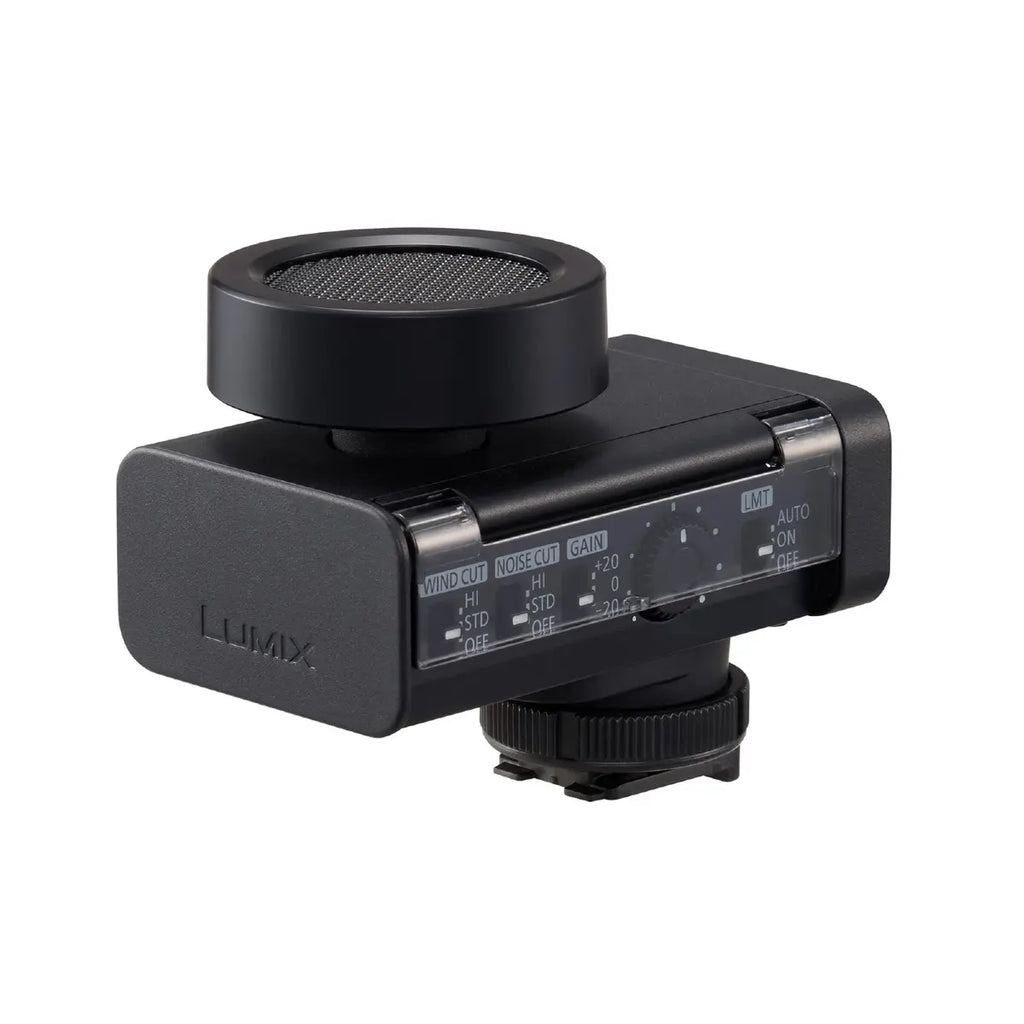

Panasonic Lumix DMW-DMS1E 32-Bit Float Microphone

Panasonic DMW-DMS1E 32-bit Float Digital Microphone

The Panasonic DMW-DMS1E is a versatile 4-channel digital microphone designed to connect directly to compatible LUMIX cameras via the hot shoe. With 32-bit float recording, it captures an exceptionally wide dynamic range without requiring manual gain adjustments, helping preserve detail in both quiet dialogue and sudden loud sounds.

A large 10mm microphone array delivers clear, natural audio reproduction, while the internal shock mount reduces camera vibration and handling noise. With six selectable directional modes, users can quickly switch from focused front pickup to immersive stereo ambience without the need for extra cables or an external recorder.

Compact, lightweight and designed specifically for LUMIX systems, the DMW-DMS1E offers professional-level audio capture for filmmakers, content creators and solo shooters.

Key Features

• 4-channel electret condenser microphone designed for LUMIX cameras

• 32-bit float recording captures an extended dynamic range without manual gain adjustment

• Six selectable directional modes to match different recording situations

• Internal shock mount helps reduce handling and vibration noise

• Wind Cut and Noise Cut controls help minimise outdoor interference

• Backup recording mode records a safety track at –20 dB

• Cable-free hot shoe connection integrates directly with the camera body

• Compact 100g design keeps smaller LUMIX cameras balanced and portable

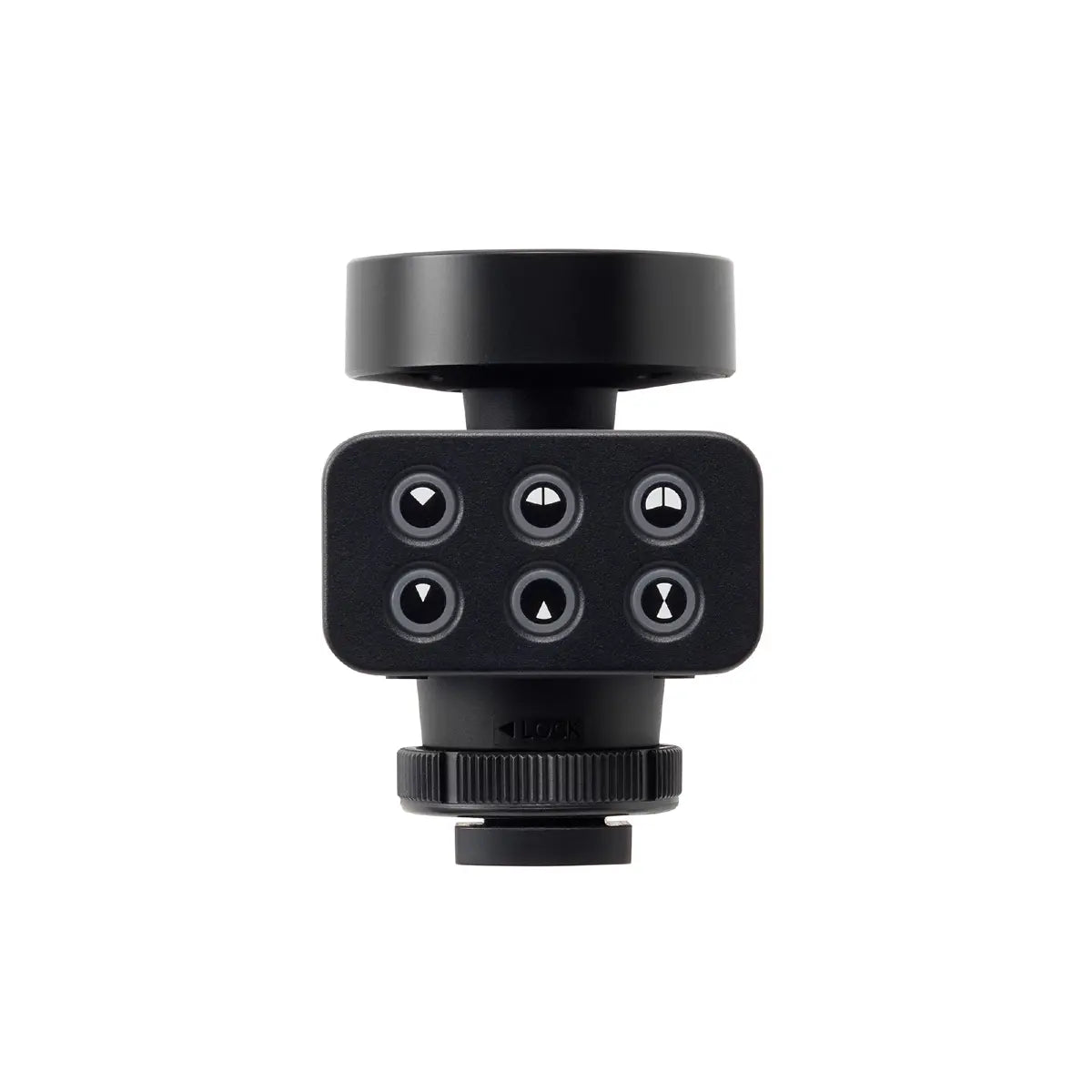

Flexible Directional Recording Modes

The DMW-DMS1E features six pickup patterns, allowing you to adapt quickly to different shooting scenarios:

• Forward Cardioid – focused pickup for subjects directly in front of the camera

• Forward Supercardioid – tighter directional pickup for interviews or dialogue

• Rear Supercardioid – captures sound behind the camera position

• Bidirectional Supercardioid – ideal for two-person conversations

• Stereo 90° – natural stereo recording for general scenes

• Wide Stereo 120° – captures a wider environmental soundscape

Switching between modes is done via physical controls on the microphone, making adjustments quick and tactile during filming.

32-bit Float Recording – Capture Every Detail

When recording in 32-bit float mode, the microphone records an extremely wide dynamic range with a fixed gain level of 0 dB. This significantly reduces the risk of clipping from sudden loud sounds while still allowing quiet dialogue to be lifted cleanly in post-production.

For solo operators or run-and-gun shooting, this means you can focus on framing and storytelling rather than constantly adjusting audio levels.

Wind and Handling Noise Control

The microphone includes an internal shock-mount mechanism that helps isolate the microphone from camera movement and handling vibrations.

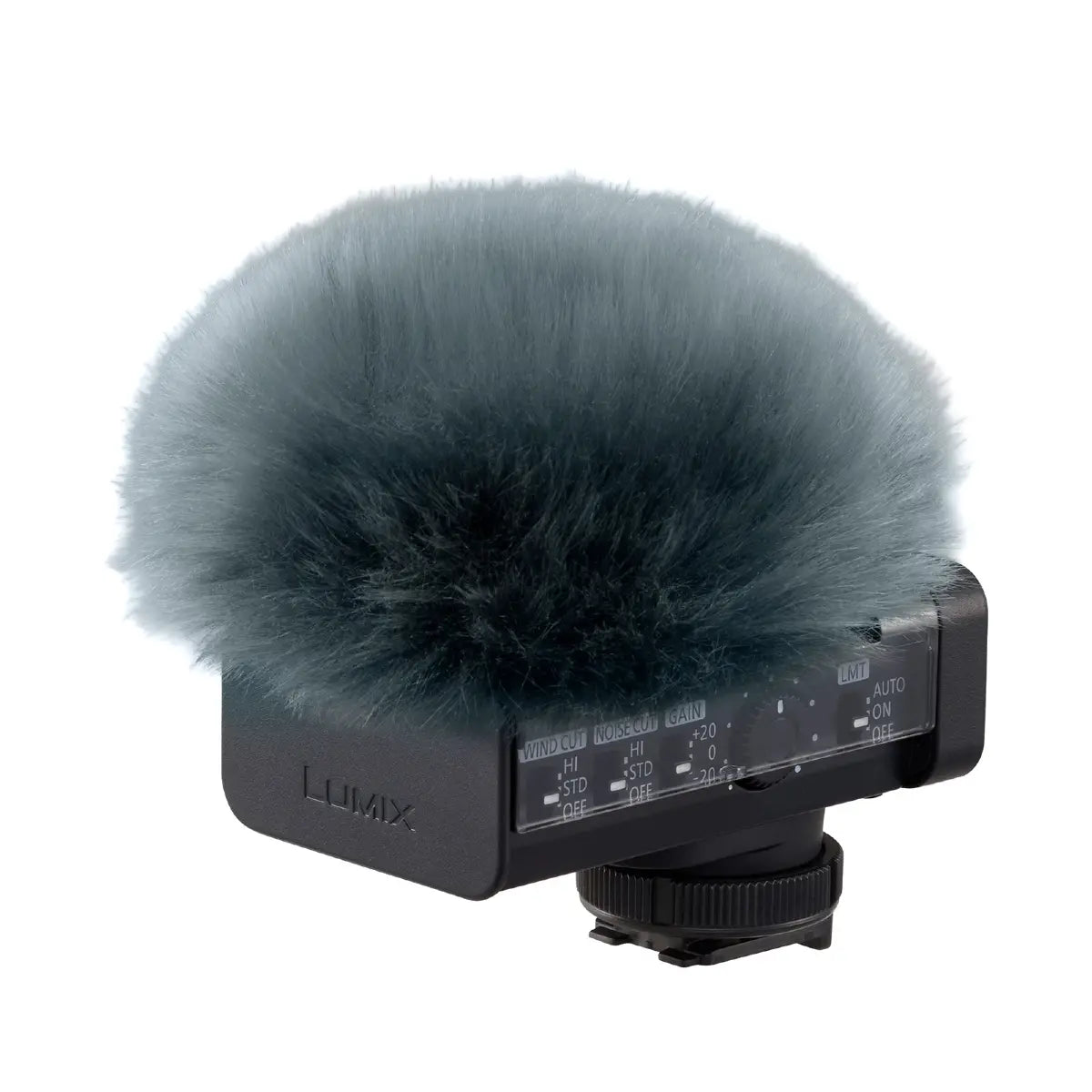

Additional Wind Cut and Noise Cut controls offer OFF, STD and HI settings, allowing you to reduce low-frequency rumble and background noise depending on the environment. A supplied windscreen further improves performance when recording outdoors.

Recording Formats and Performance

The DMW-DMS1E supports both standard linear recording and 32-bit float capture for flexible audio workflows.

• Linear mode:

  • 24-bit recording at 48 kHz or 96 kHz

  • 2-channel or 4-channel recording options

• Floating (32-bit) mode:

  • 48 kHz or 96 kHz recording for 2 channels

  • 48 kHz / 4-channel recording when backup audio is enabled

• Maximum input level: approx. 122 dB SPL or higher

• Dynamic range: 105 dB or greater

This provides sufficient headroom for loud environments, raised voices and unpredictable audio peaks without distortion.

Technical Specifications

• Microphone Type: Electret condenser microphone

• Channels: 4-channel recording capability

• Microphone Array: 10mm microphone capsule array

• Recording Formats: 32-bit float / 24-bit linear PCM

• Sample Rates: 48 kHz and 96 kHz

• Directional Modes: 6 selectable pickup patterns

• Maximum Input Level: approx. 122 dB SPL or higher

• Dynamic Range: approx. 105 dB or greater

• Connection: Direct hot shoe connection to compatible LUMIX cameras

• Shock Mount: Internal vibration-reducing mount

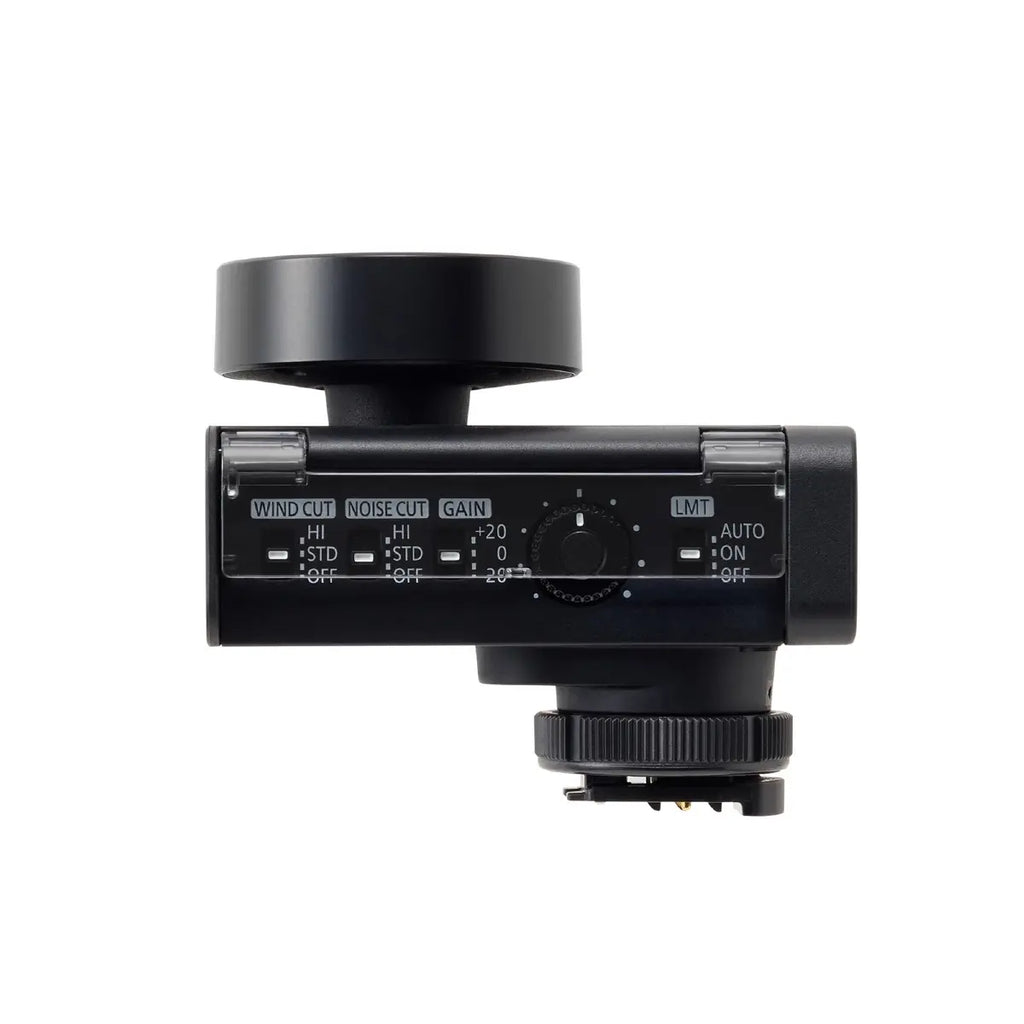

• Noise Control: Wind Cut and Noise Cut (OFF / STD / HI)

• Backup Recording: –20 dB safety track

• Weight: approx. 100g

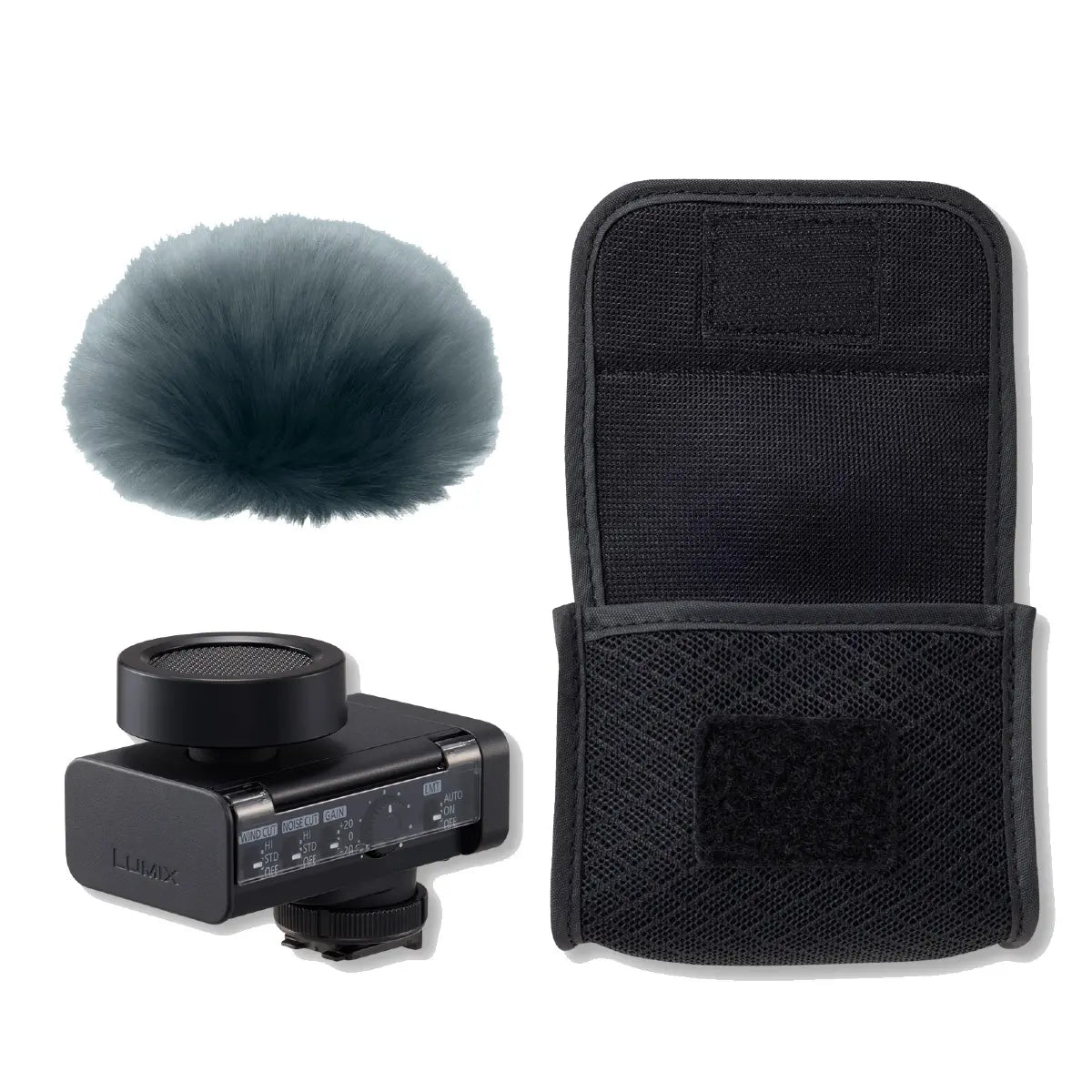

What’s in the Box

• Panasonic DMW-DMS1E 32-bit Float Digital Microphone

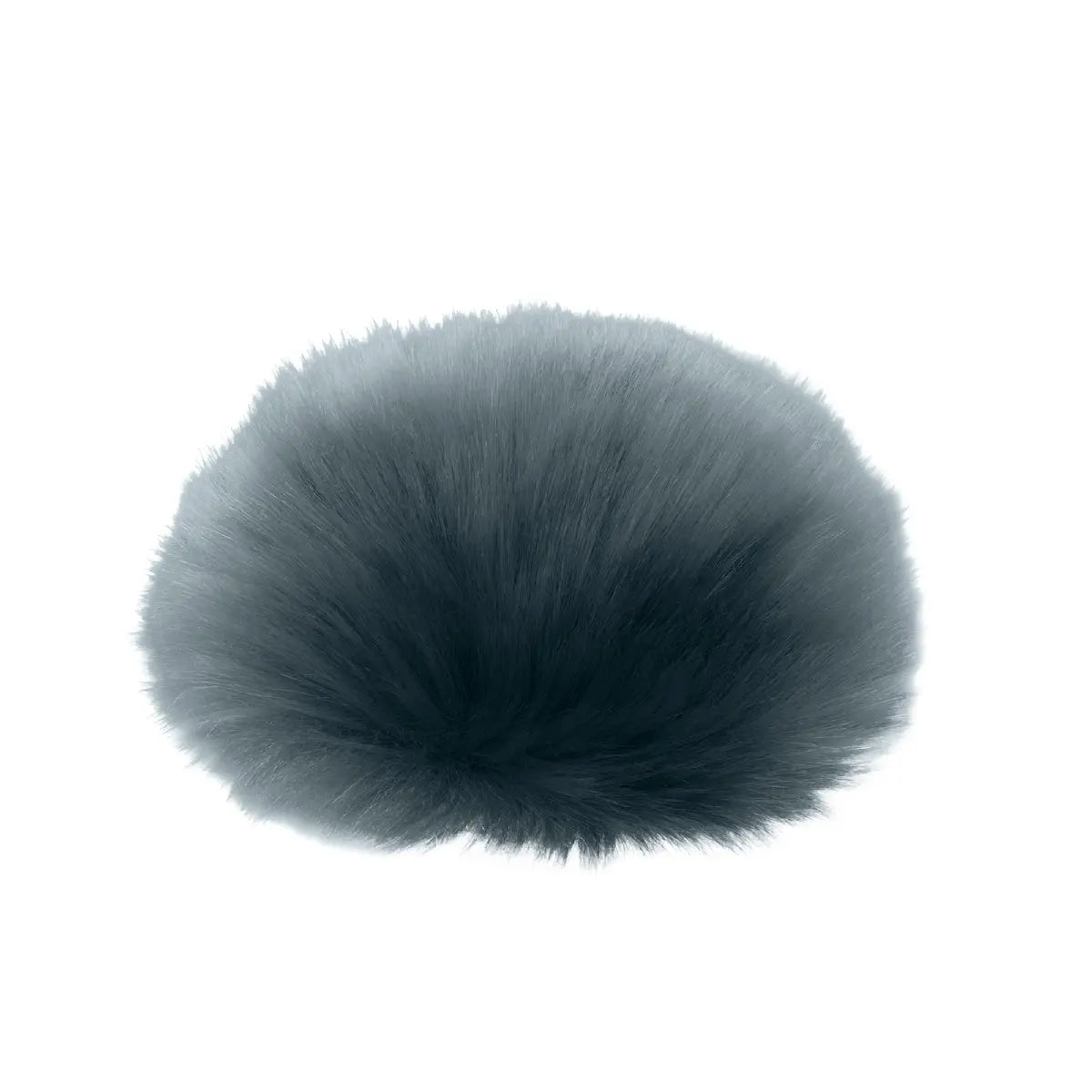

• Windscreen

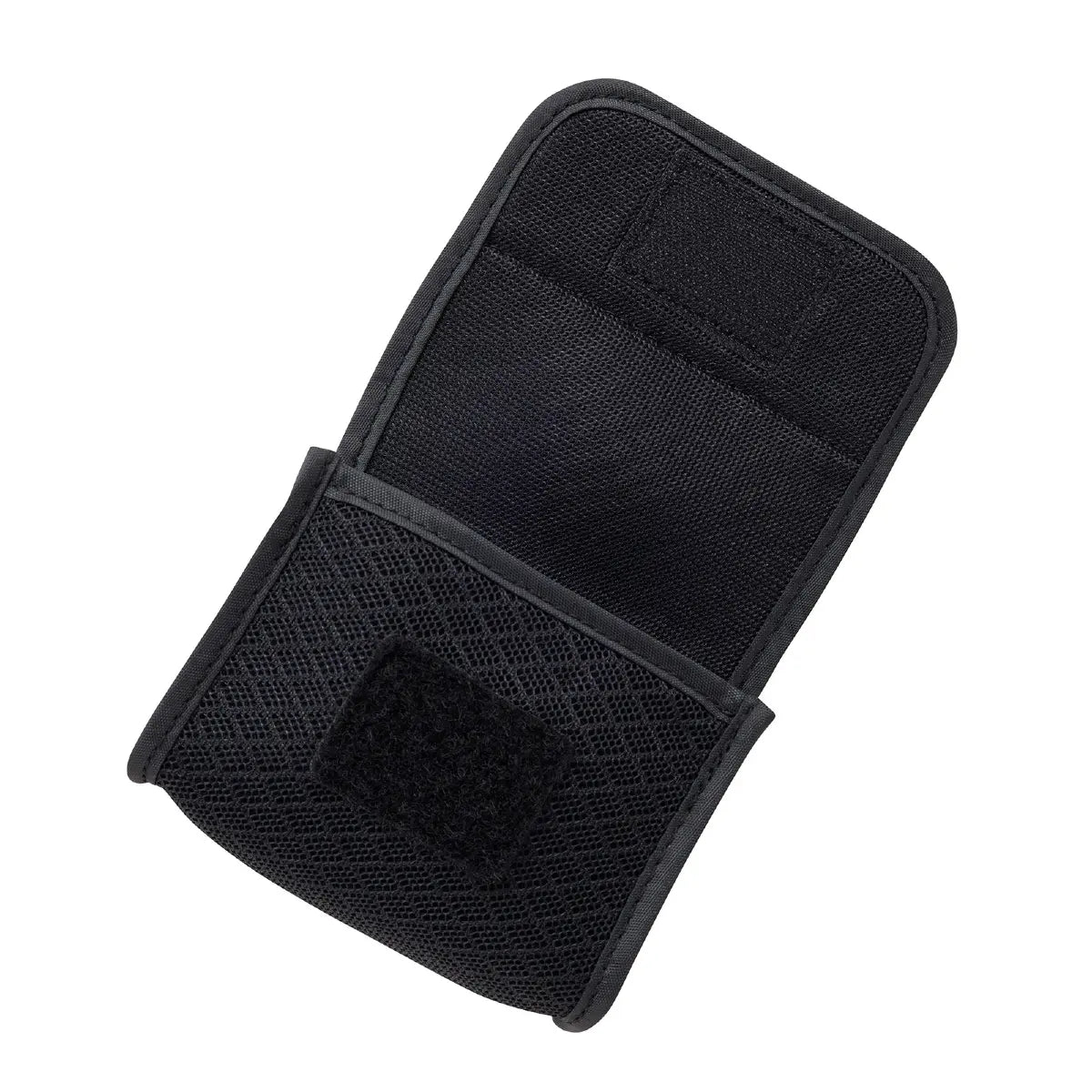

• Protective pouch

Compatibility

32-bit float and backup recording require compatible LUMIX cameras with the latest firmware installed, including models such as:

• DC-S1M2

• S1M2ES

• S1RM2

Always ensure both the camera and microphone firmware are up to date to enable full functionality before critical recording sessions.
