Product Description

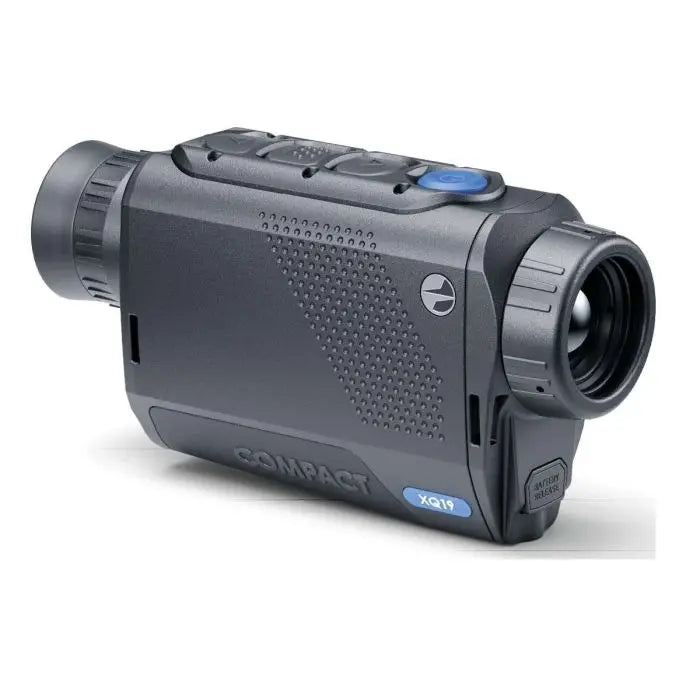

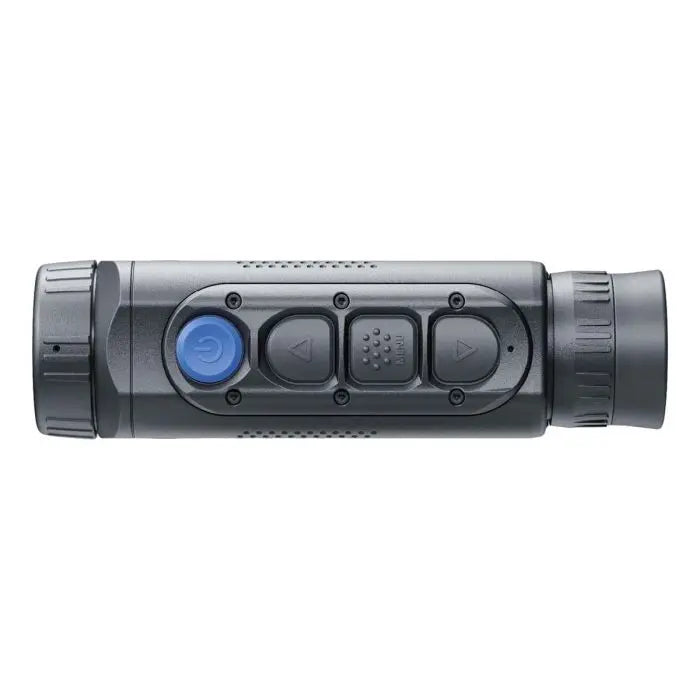

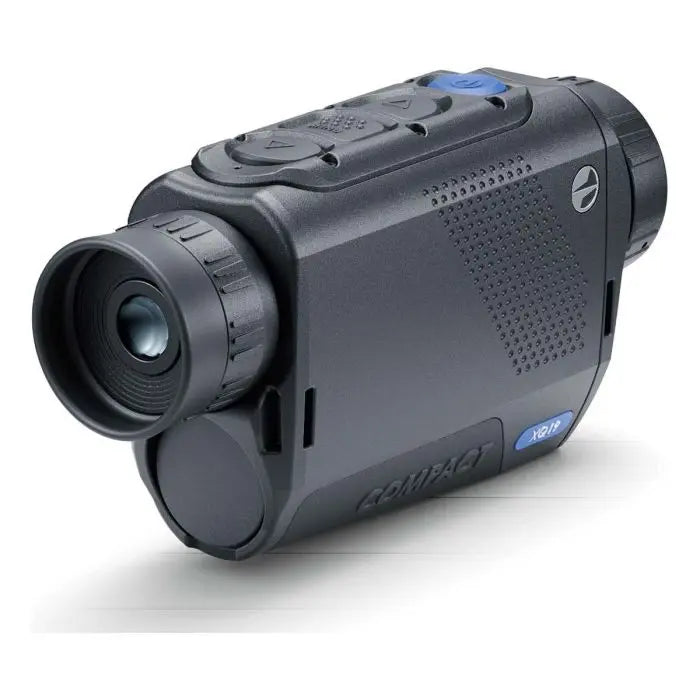

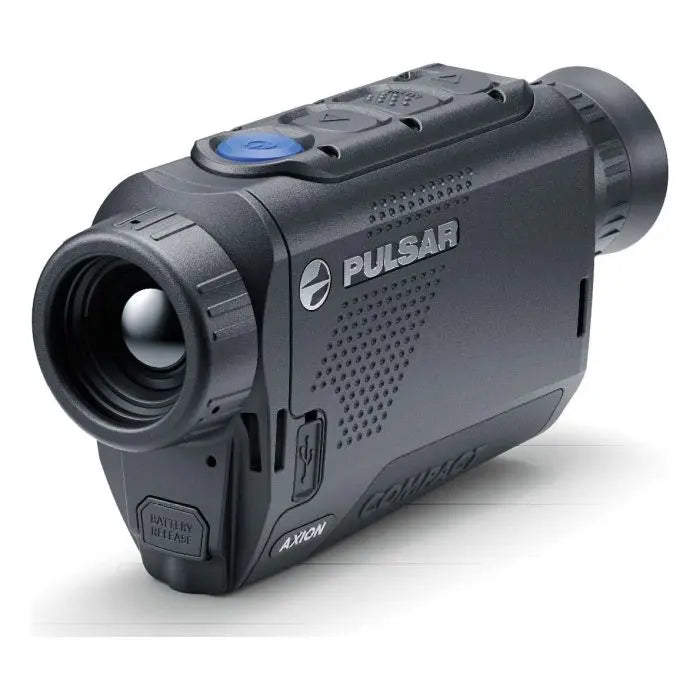

Pulsar Axion Compact XQ19 Thermal Imaging Monocular
Powerful Thermal Vision in a Pocket-Sized Design
The Pulsar Axion Compact XQ19 delivers premium thermal imaging in a lightweight, palm-sized body. Designed to make professional performance more accessible, it features a 384×288, 17µm <18mK NETD sensor and a 19mm f/1.0 lens, detecting heat sources up to 750 metres away — all from a device that fits easily in your hand or pocket.
Exceptional Thermal Performance
The highly sensitive <18mK NETD sensor captures fine temperature differences for clear, high-contrast imaging in fog, rain, or total darkness. Spot wildlife, track heat signatures, or monitor your surroundings with precision — whatever the weather.
Wide Field of View
With a 19° field of view (34.7 m @ 100 m), the Axion XQ19 provides wide-angle visibility for scanning open terrain and tracking moving subjects.
All-Day Power
Enjoy up to 8 hours of operation from the rechargeable APS3 battery. Quick-swap design makes changing batteries simple, even in the dark — perfect for extended field use.
Rugged & Weatherproof
The magnesium alloy body and IPX7 waterproof rating protect against rain, snow, and immersion. A rubberised grip ensures reliable handling in any conditions.
Custom Colour Palettes
Choose from eight viewing modes to enhance detection and reduce eye strain:
-
White Hot / Black Hot / Red Hot – ideal for detection
-
Rainbow / Ultramarine – improve recognition
-
Red Monochrome / Sepia / Violet – comfortable for long use
Built-in Recording & App Connectivity
Capture photos and videos (with audio) directly on the device, then transfer or stream via the Stream Vision 2 app. Control settings remotely, download your footage, and update firmware over the air.
Key Specifications
| Feature | Specification |
|---|---|
| Sensor Resolution | 384×288 px |
| Pixel Pitch | 17 µm |
| Sensitivity | <18 mK NETD |
| Lens | 19 mm f/1.0 |
| Magnification | 1.5–6× |
| Detection Range | 750 m |
| Field of View | 19.5° / 34.7 m @ 100 m |
| Display | 640×400 AMOLED |
| Battery | APS3 (3200 mAh, removable) – up to 8 hours |
| Protection Rating | IPX7 |
| Operating Temp. | −25 °C to +40 °C |
| Weight | 250 g |
Why Choose the Axion Compact XQ19
-
Professional-grade thermal imaging in a compact body
-
Wide field of view and 750 m detection range
-
Long battery life with quick-swap design
-
Rugged, waterproof build for all-weather use
-
Video recording and smartphone control
