Product Description

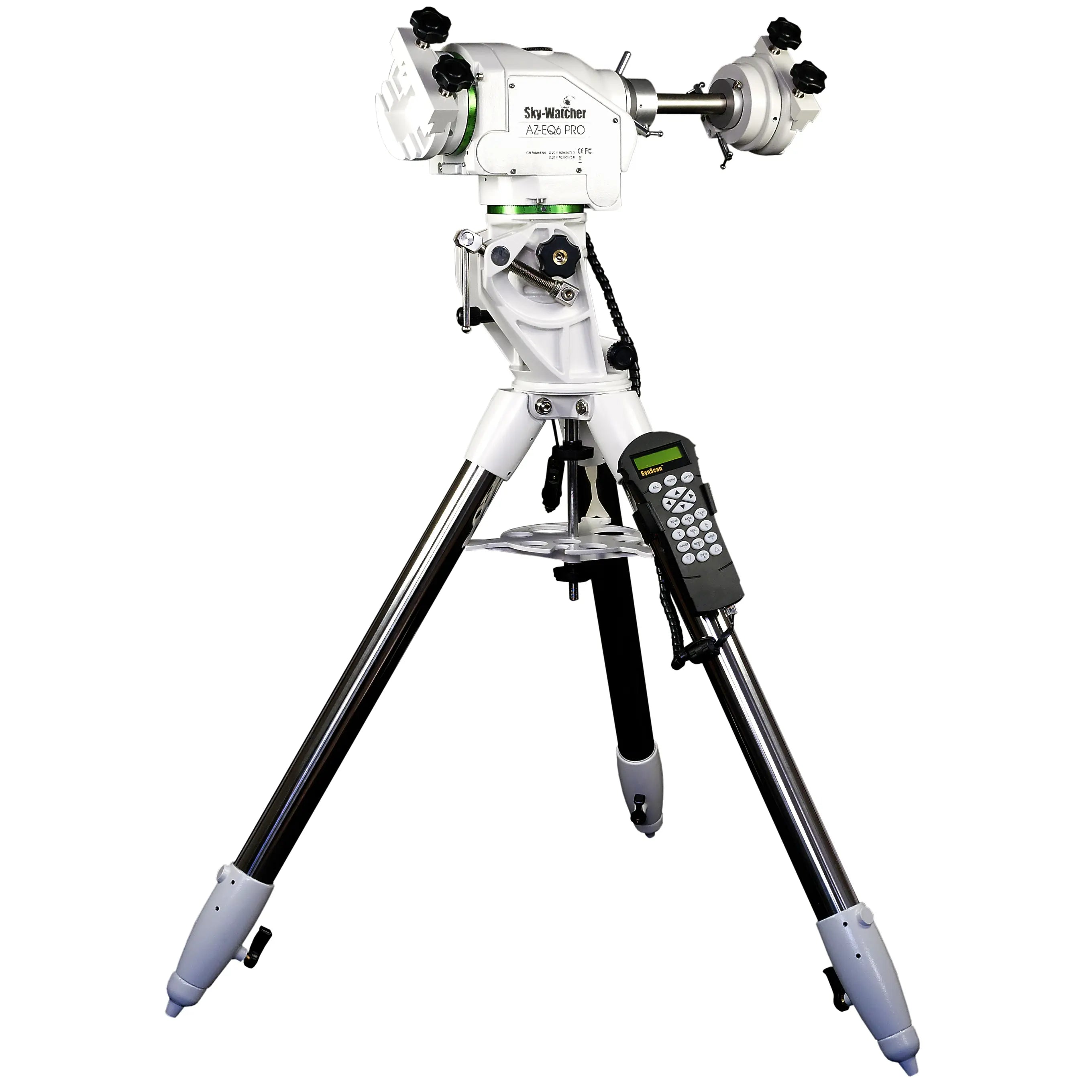

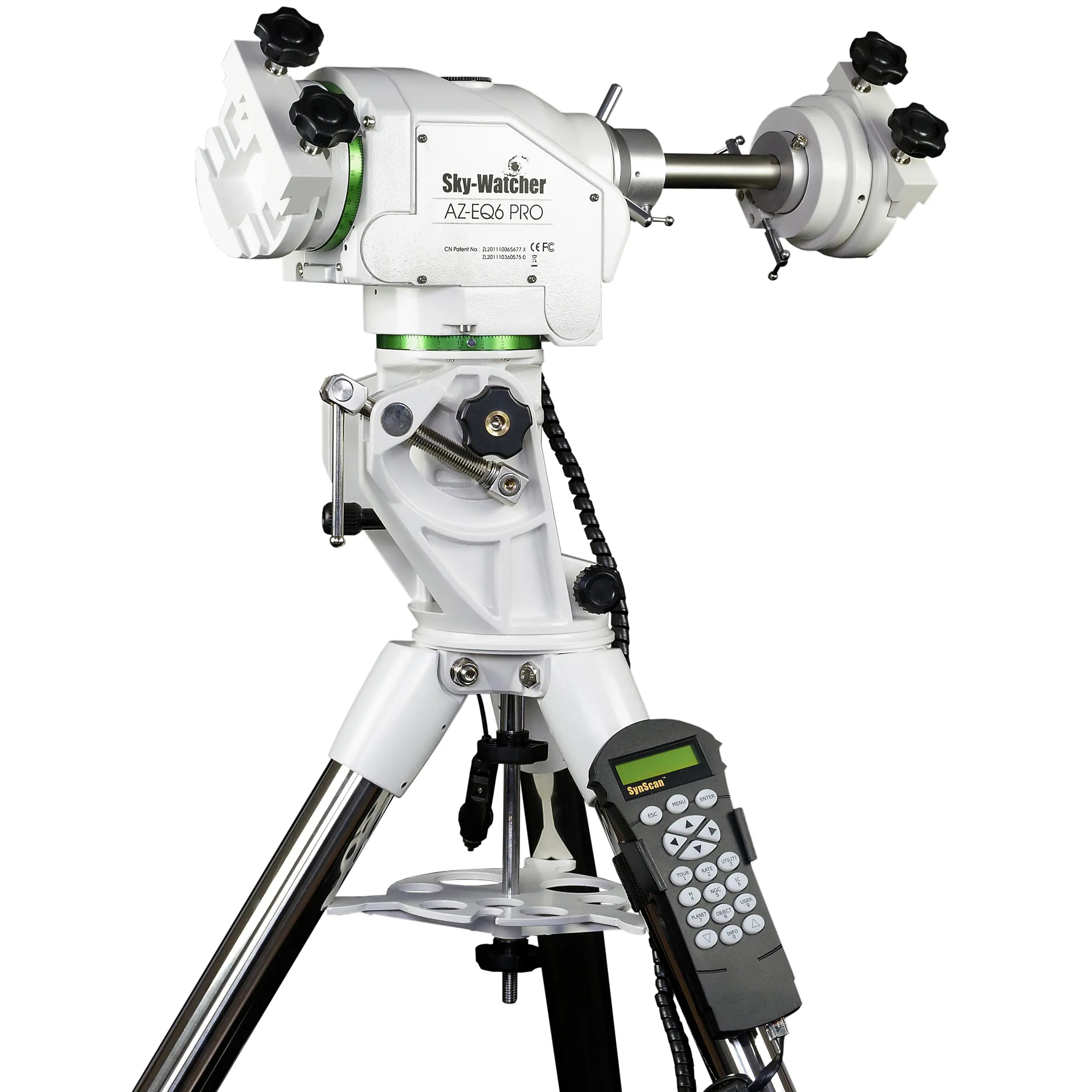

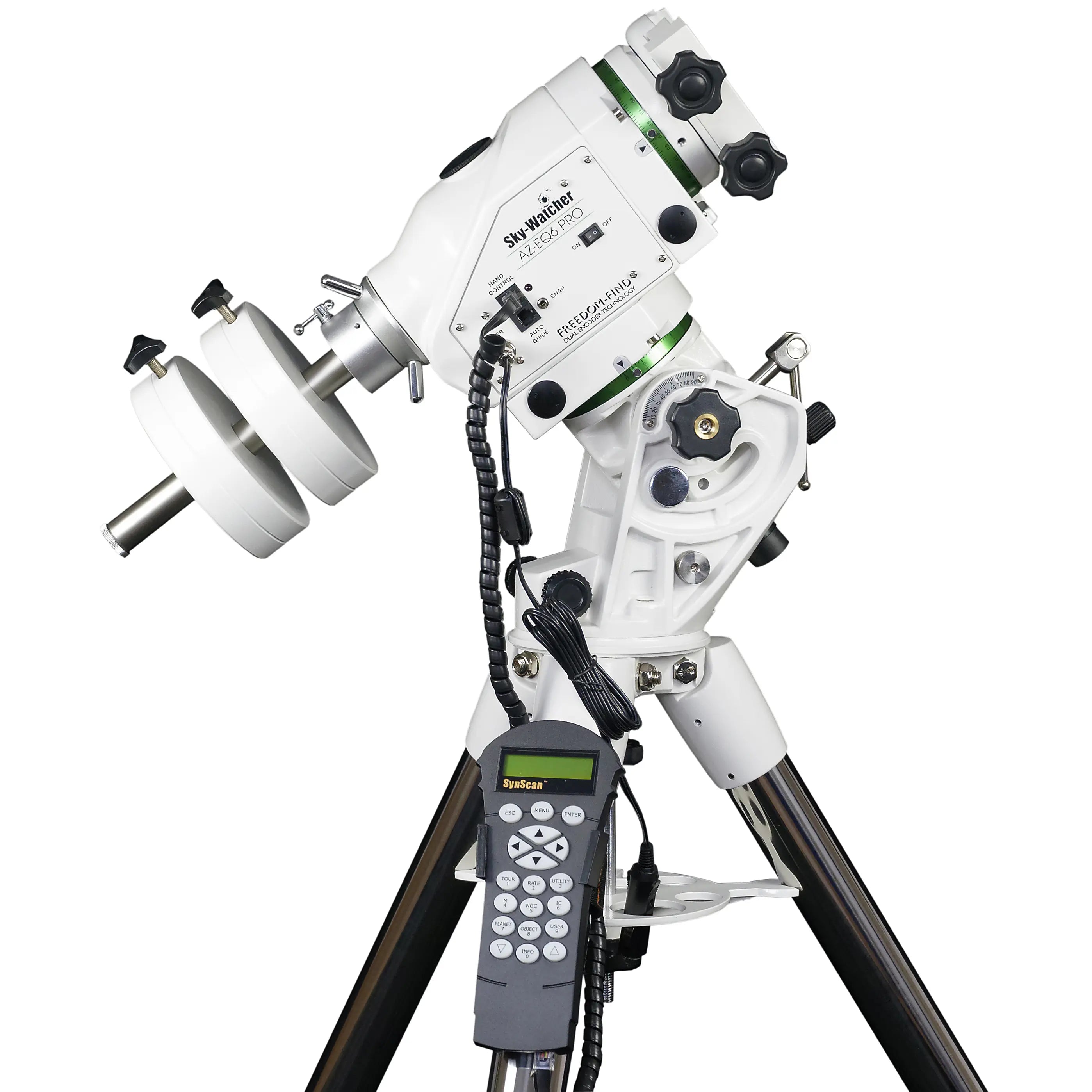

Sky-Watcher AZ-EQ6GT PRO SynScan
Alt-Azimuth / Equatorial Computerised Go-To Mount & Tripod
The Sky-Watcher AZ-EQ6GT is an advanced dual-purpose, fully computerised Go-To and tracking mount, offering both Alt-Azimuth (AZ) and Equatorial (EQ) modes. An evolution of the legendary NEQ6 PRO, this model brings enhanced features and performance, making it a top choice for serious astronomers and astrophotographers.
With precise tracking, a heavy-duty build, and a database of over 42,900 celestial objects, the AZ-EQ6GT is perfect for both deep-sky imaging and visual observations.
Key Features
Dual-Mode Functionality (AZ & EQ)
- Equatorial Mode (EQ): Designed for precision astro-imaging and deep-sky observations.

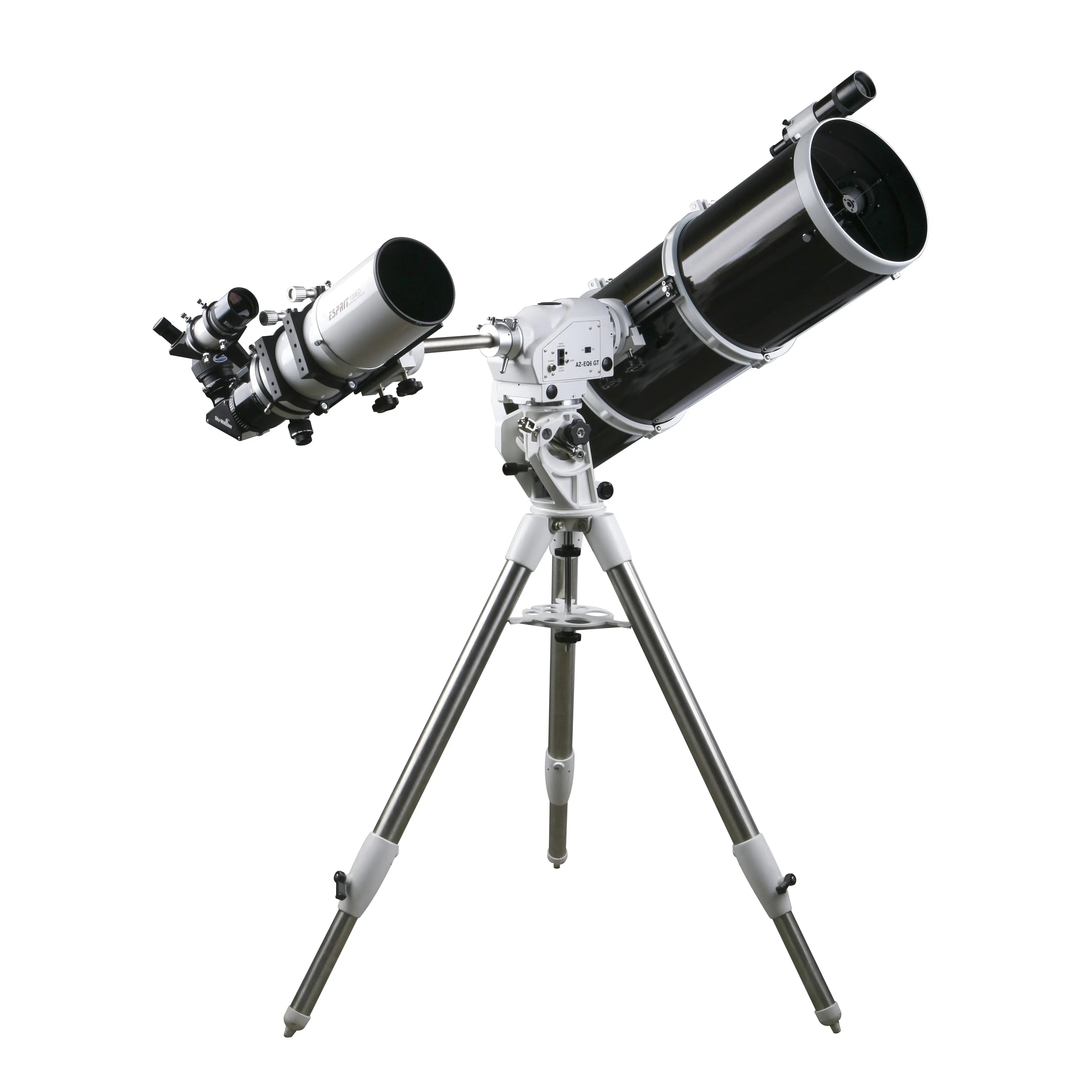

- Alt-Azimuth Mode (AZ): Ideal for visual observing, with the ability to mount two telescopes simultaneously for parallel viewing.
Patented Dual-Encoder Technology
- Move the telescope manually without losing alignment data.
- Offers greater flexibility, freedom, and convenience during observational sessions.
Go-To Capability & SynScan Handset
- Computerised Go-To system locates and tracks over 42,900 celestial objects.
- Easy 1, 2, or 3-star alignment options (EQ Mode) / Brightest Star & 2-Star Alignment (AZ Mode).
Precision Engineering for Tracking & Imaging
- Payload Capacity: 25kg in both EQ & AZ modes – supports heavy telescopes & imaging equipment.
- PEC (Periodic Error Correction) for improved tracking accuracy in EQ mode.
- DC12V stepper motors with precise RA/DEC worm gears for smooth movement.
Astrophotography-Ready
- Built-in Autoguider Port for long-exposure imaging.
- DSLR Electronic Shutter Release Port for remote camera triggering.
- Polar alignment via software control or included polar scope for accurate setup.
Heavy-Duty Construction
- Tripod: 2" stainless steel legs for maximum stability.
- Counterweights: 2 x 5kg weights included (not four as shown in some images).
- Dual-fit saddle plates (accepts 45mm & 75mm dovetail bars).
Versatile Power & Portability
- Mount weight: 15.4kg, Tripod weight: 7.5kg.
- Power Requirement: 12V DC 3A (Sky-Watcher 17Ah Power Tank recommended).
Technical Specifications
| Feature | Details |
|---|---|
| Mount Type | Alt-Azimuth & Equatorial |
| Payload Capacity | 25kg |
| Go-To Database | 42,900+ celestial objects |
| Tracking Accuracy | 0.1436 arc minutes |
| Tracking Speeds | Sidereal, Solar & Lunar |
| PEC Control | Yes (EQ mode) |
| Motors | DC12V Stepper Motors |
| RA/DEC Worm Gears | D=92.5mm, 180 teeth, brass |
| RA/DEC Axes | D=40mm, steel |
| Polar Alignment | Software control / Supplied Polar Scope |
| Alignment Methods | 1, 2, 3-star (EQ) / Brightest Star & 2-star (AZ) |
| Tripod | 2" Stainless Steel |
| Counterweights | 2 x 5kg |
| Counterweight Bar | 25mm Diameter |
| Mount Body Weight | 15.4kg |
| Tripod Weight | 7.5kg |
| Power Requirement | 12V DC 3A |
Package Includes
- Sky-Watcher AZ-EQ6GT Mount
- SynScan Handset (Dual AZ/EQ Firmware)
- 2 x 5kg Counterweights
- 2” Stainless Steel Tripod
- Polar Scope
- Power & Data Cables
- User Manual
The Sky-Watcher AZ-EQ6GT PRO SynScan is a powerful and versatile mount, ideal for serious astronomers and astrophotographers looking for a high-precision, heavy-duty tracking system with the flexibility of both Alt-Azimuth and Equatorial modes.
