    Description

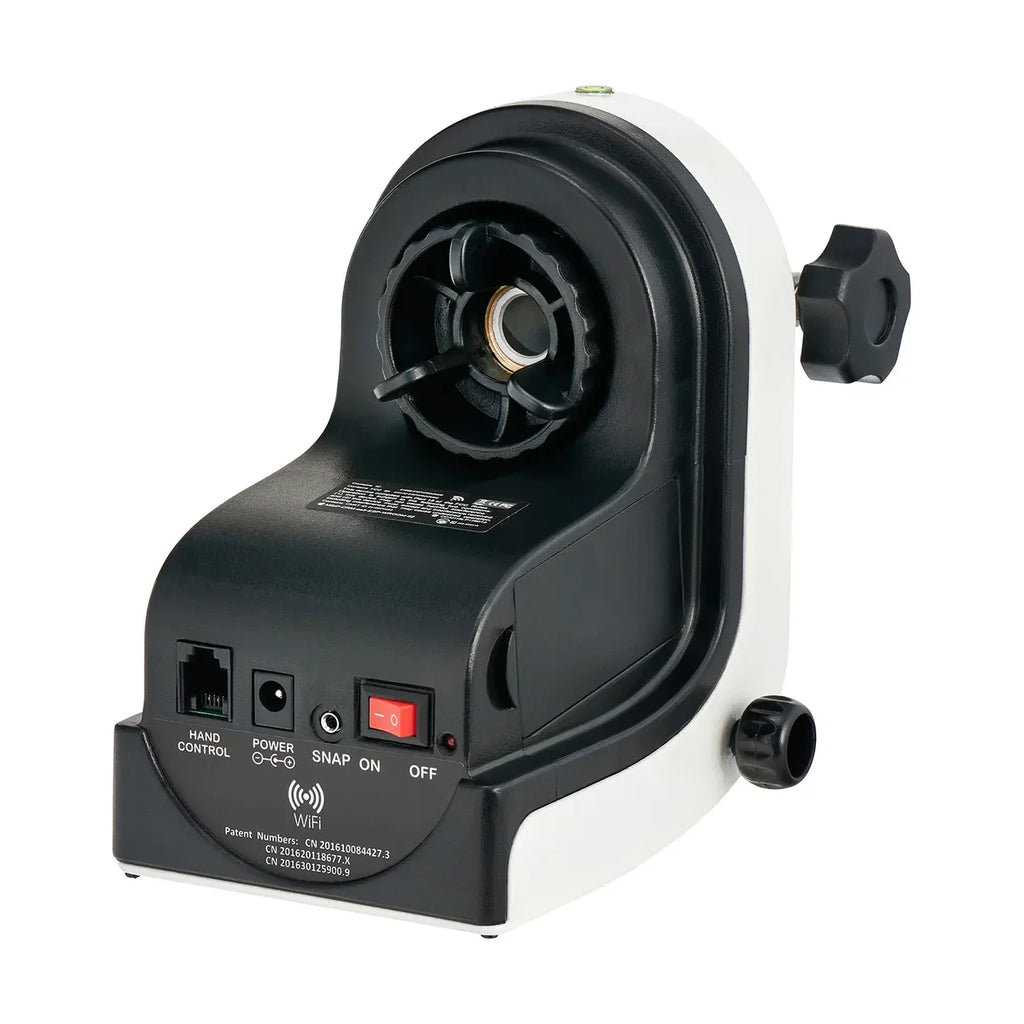

    Weighing only 1.3kg, the AZ-GTi is now available as a mount head only and can be connected to a tripod via its standard 3/8" tripod bush.

    The exciting highly portable Sky-Watcher AZ-GTi Alt-Azimuth Mount, with its built-in WiFi module, has been designed to be controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android.

    The AZ-GTi creates its very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other WiFi networks. After entering your coordinates into the App and following a simple alignment procedure, you are ready to explore the universe using the App’s intuitive touchscreen menu.

    The AZ-GTi and SynScan App provides full computerised GO-TO control, allowing your telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects.

    Incorporates Sky-Watcher’s Freedom-Find™ patented Dual-Encoder Technology, which allows the telescope to be moved manually on either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

    The mount is quiet in operation, has a payload capacity of up to 5kg and accepts telescopes with standard 45mm Dovetail Bars.



    Main Features:

    Controller: Free SynScan App for iOS and Android mobile devices or Synscan Hand Controller (available separately)
    SynScan App Database: Total 10,000+ Objects. Deep Sky Objects: 10759, including Messier, NGC, IC, Caldwell Catalogues, Named DSOs, Named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun, Moon. (Unlimited objects when working with a 3rd party planetarium software).
    SynScan App Alignment Method:  Brightest Star Alignment, North-Level Alignment
    SynScan App's Other Features:  Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over the Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
    Pointing Accuracy: Up to 10 arc-minute (RMS)
    Resolution: 2073600 Counts/Rev., 0.625 arc-second
    Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
    Freedom-Find™ Dual-Encoder Technology
    Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
    Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
    Tracking Mode: Dual Axis Tracking
    Motor: DC Servo Motor, Gear Ratio 6480
    Payload Capacity: 5kg
    45mm Sky-Watcher/Vixen type dovetail saddle
    Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module
    Connectivity:  ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android ( SkySafari Plus/Pro, more are coming).
    Network Protocol: UDP, Port 11880
    3/8" Tripod Bush
    Mount Head Weight: 1.3kg
    Power Requirement: 8 AA Size Batteries (not supplied) or External Power Supply (DC 7.5~14V, 0.75A) Tip Positive.
    Sky-Watcher 7Ah or 17Ah  Power Tank Recommended.

      Sky-Watcher AZ-GTi WIFI GO-TO ALT-Azimuth Mount head 20315

      Product form
      Free pickup in our shop(s)

      Condition: New

      SKU: 6970456091164
      Barcode: 6970456091164

      MPN: 20315

      Warranty:

      1 in stock

      £275.00 Incl. VAT

      Icon for coupon Promotions

      Here is where you will find our current promotions & discount codes

      • FREE Standard Delivery On All Products
      • FREE Next Working Day Delivery Above £300
      • Friendly Expert Advice Via Phone & Chat
      • Shipped today? Order within: Mar 23, 2023 15:00:00 +0000

      Description

      Weighing only 1.3kg, the AZ-GTi is now available as a mount head only and can be connected to a tripod via its standard 3/8" tripod bush.

      The exciting highly portable Sky-Watcher AZ-GTi Alt-Azimuth Mount, with its built-in WiFi module, has been designed to be controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android.

      The AZ-GTi creates its very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other WiFi networks. After entering your coordinates into the App and following a simple alignment procedure, you are ready to explore the universe using the App’s intuitive touchscreen menu.

      The AZ-GTi and SynScan App provides full computerised GO-TO control, allowing your telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects.

      Incorporates Sky-Watcher’s Freedom-Find™ patented Dual-Encoder Technology, which allows the telescope to be moved manually on either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

      The mount is quiet in operation, has a payload capacity of up to 5kg and accepts telescopes with standard 45mm Dovetail Bars.



      Main Features:

      Controller: Free SynScan App for iOS and Android mobile devices or Synscan Hand Controller (available separately)
      SynScan App Database: Total 10,000+ Objects. Deep Sky Objects: 10759, including Messier, NGC, IC, Caldwell Catalogues, Named DSOs, Named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun, Moon. (Unlimited objects when working with a 3rd party planetarium software).
      SynScan App Alignment Method:  Brightest Star Alignment, North-Level Alignment
      SynScan App's Other Features:  Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over the Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
      Pointing Accuracy: Up to 10 arc-minute (RMS)
      Resolution: 2073600 Counts/Rev., 0.625 arc-second
      Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
      Freedom-Find™ Dual-Encoder Technology
      Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
      Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
      Tracking Mode: Dual Axis Tracking
      Motor: DC Servo Motor, Gear Ratio 6480
      Payload Capacity: 5kg
      45mm Sky-Watcher/Vixen type dovetail saddle
      Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module
      Connectivity:  ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android ( SkySafari Plus/Pro, more are coming).
      Network Protocol: UDP, Port 11880
      3/8" Tripod Bush
      Mount Head Weight: 1.3kg
      Power Requirement: 8 AA Size Batteries (not supplied) or External Power Supply (DC 7.5~14V, 0.75A) Tip Positive.
      Sky-Watcher 7Ah or 17Ah  Power Tank Recommended.
