SmallRig Four-Channel Camera Battery Charger for Nikon EN-EL15c Batteries

SmallRig Four-Channel Camera Battery Charger for EN-EL15c 5747

Keep your spare batteries ready for demanding shoots with the SmallRig Four-Channel Camera Battery Charger for EN-EL15c 5747. Designed to charge up to four EN-EL15c batteries simultaneously, this compact USB-C charger combines 45W USB Power Delivery input, intelligent charging management and individual battery-level indicators.

With a suitable 45W PD power adapter, it can fully charge four compatible 2520mAh batteries in approximately three hours. Whether you are preparing for an event, travelling with your equipment or charging batteries between shoots, it provides a convenient alternative to managing several separate chargers.

Charge Four Batteries in Approximately Three Hours

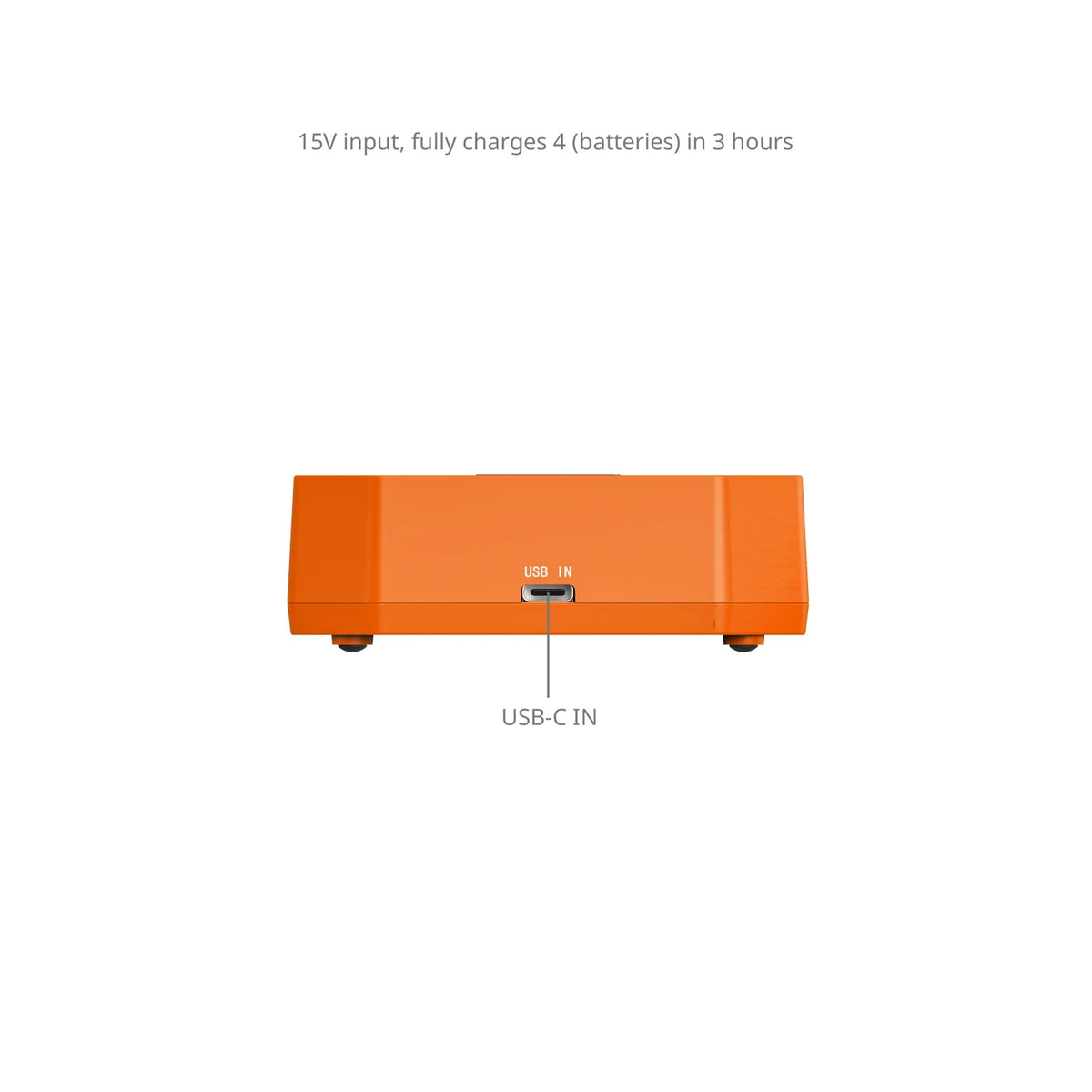

Four dedicated charging slots allow you to replenish multiple batteries from a single USB-C power source. With a compatible adapter delivering 15V/3A, all four channels can operate simultaneously, helping reduce preparation time when you have several batteries to charge.

The quoted three-hour charging time applies to compatible 2520mAh batteries under the specified power conditions. Actual charging time varies with battery capacity, condition, remaining charge and the power supply used.

Intelligent Charging to Match Your Power Supply

The charger supports 5V, 9V, 12V and 15V inputs, automatically adapting the number of active charging channels to the available supply:

• 5V input: One active charging channel.

• 9V input: Two active charging channels.

• 12V input: Three active charging channels.

• 15V input: Four active charging channels.

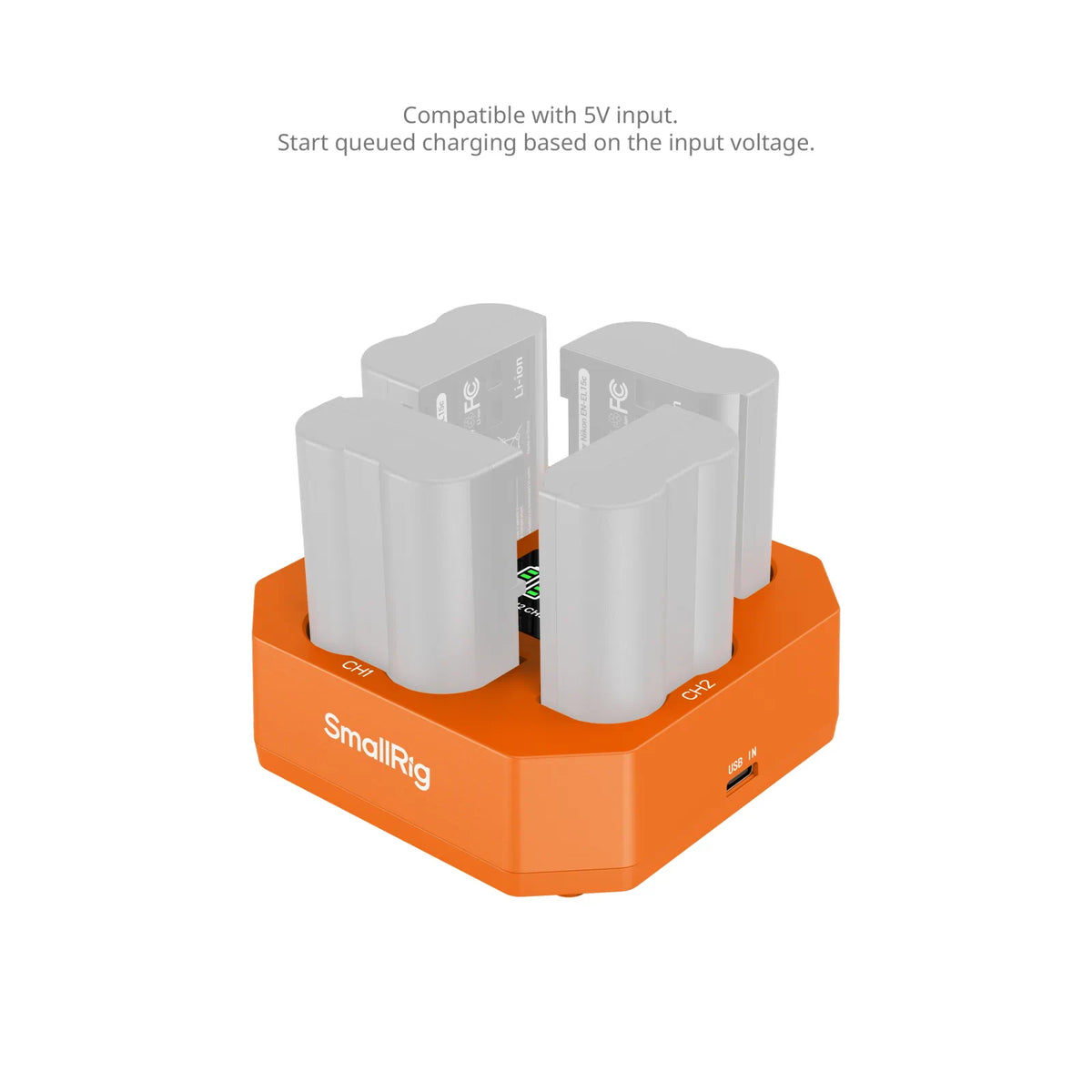

It also supports lower-powered adapters, including 5V/1A supplies, using intelligent queued charging when there is insufficient power to charge every battery at once.

When charging is queued, the charger prioritises the battery with the highest remaining charge, then works through the others in order. This helps get a usable, fully charged battery ready sooner.

Clear Indicators for Every Battery

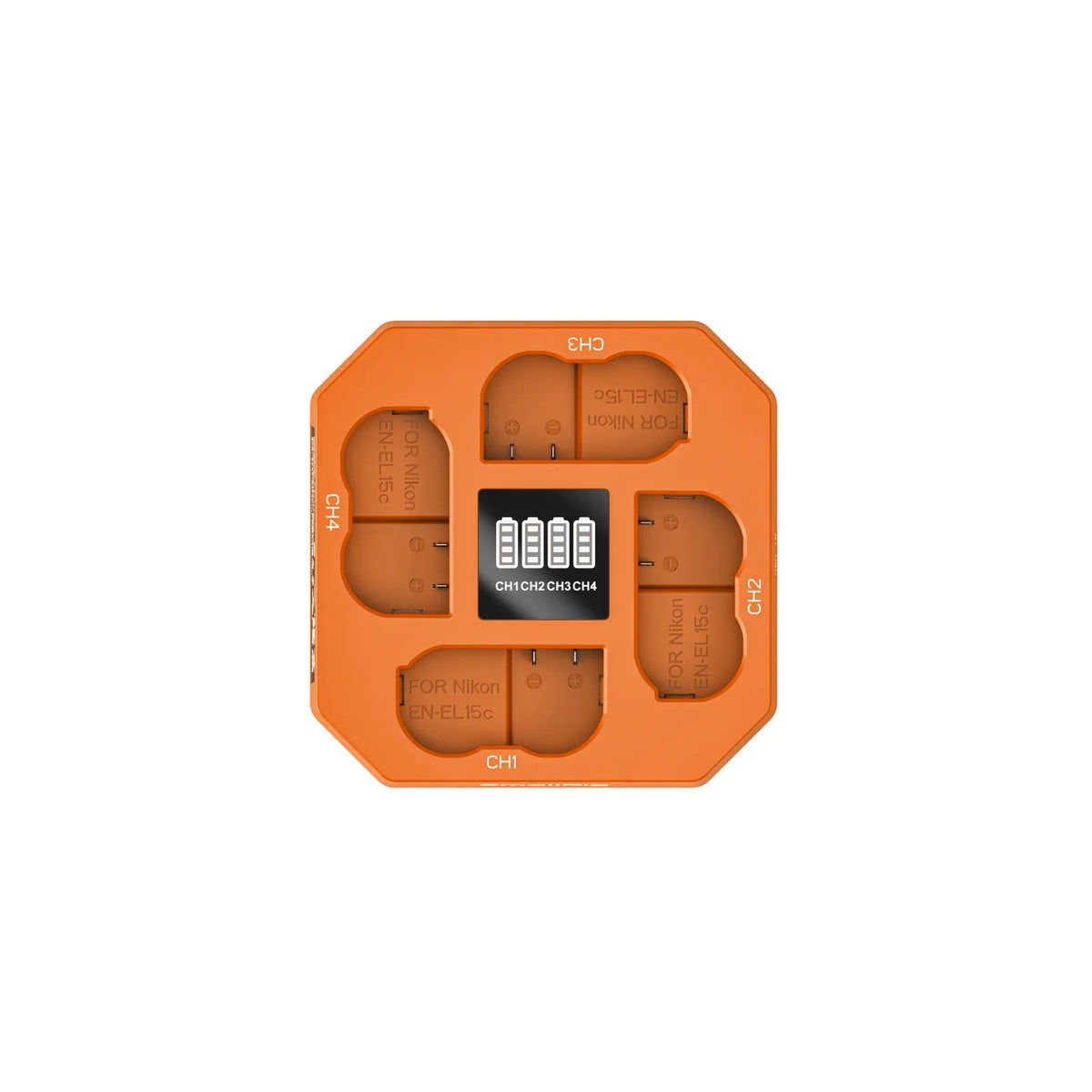

Each charging channel has a four-stage LED indicator, making it easy to check individual battery levels at a glance. The indicators blink during charging and progressively illuminate, with all four lights remaining solid when that battery is fully charged.

You can also check a battery without connecting the charger to power. Insert a battery and its charge level is displayed for five seconds; if the remaining charge is below 25%, the lowest-level indicator blinks.

Built-In Charging Protection

Each output channel incorporates short-circuit and overcurrent protection for dependable charging. An automatic system check runs when the charger is connected to a USB power adapter, while a rapid flashing pattern across all indicators alerts you to an abnormal condition.

Compact Enough for Your Camera Bag

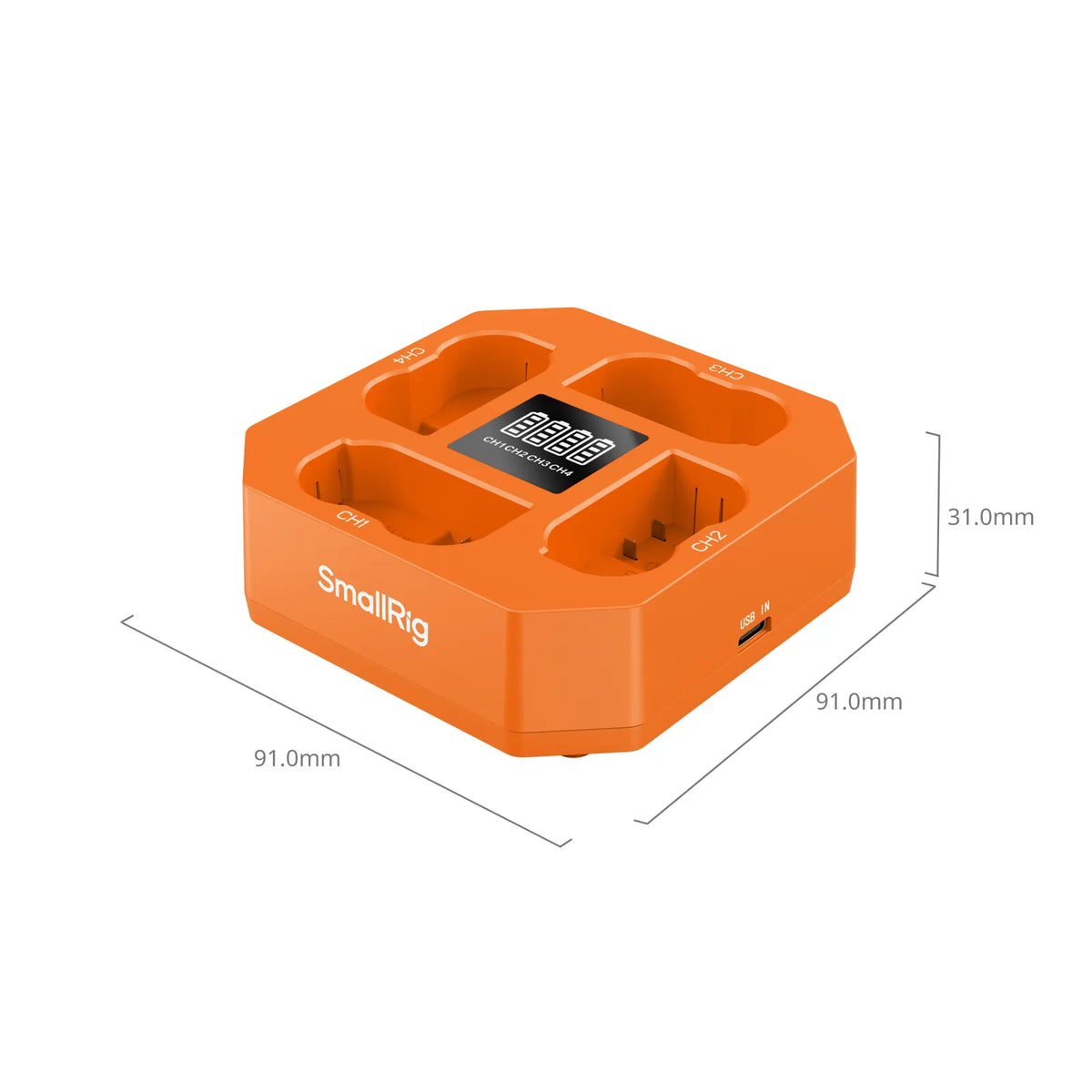

Measuring just 91 × 91 × 31mm and weighing approximately 115g, the charger is easy to pack alongside your camera equipment. Its compact ABS and PC body suits both a permanent charging station at home and a portable setup for location work.

A 65W-rated USB-C to USB-C cable is included. For optimal performance and simultaneous four-battery charging, use a compatible USB-C PD power adapter rated at 45W or higher.

EN-EL15c Battery Compatibility

Designed for EN-EL15c batteries, including those used with Nikon cameras such as the Z8, Z7 II, Z7, Z6 III, Z6 II, Z6, Z5 II, Z5 and Zf, alongside compatible DSLR models including the D850, D810, D810A, D780, D750, D610, D800 and D800E.

Compatibility is determined by the battery type. Check that your batteries are EN-EL15c before use.

Key Features & Specifications

• Battery compatibility: EN-EL15c.

• Charging slots: Four, with simultaneous charging when suitably powered.

• Charging time: Approximately three hours for four compatible 2520mAh batteries using a suitable 45W PD supply.

• USB-C input: 5V/2A, 9V/2A, 12V/2A or 15V/3A; maximum 45W.

• Lower-power support: Compatible with 5V/1A adapters through queued charging.

• Output per channel: 8.4V/1A.

• Indicators: Individual four-stage LED battery-level displays.

• Protection: Short-circuit and overcurrent protection on each channel.

• Materials: ABS and PC.

• Operating temperature: 0–45°C.

• Dimensions: 91 × 91 × 31mm.

• Weight: Approximately 115g.

Batteries and USB-C power adapter are not included.

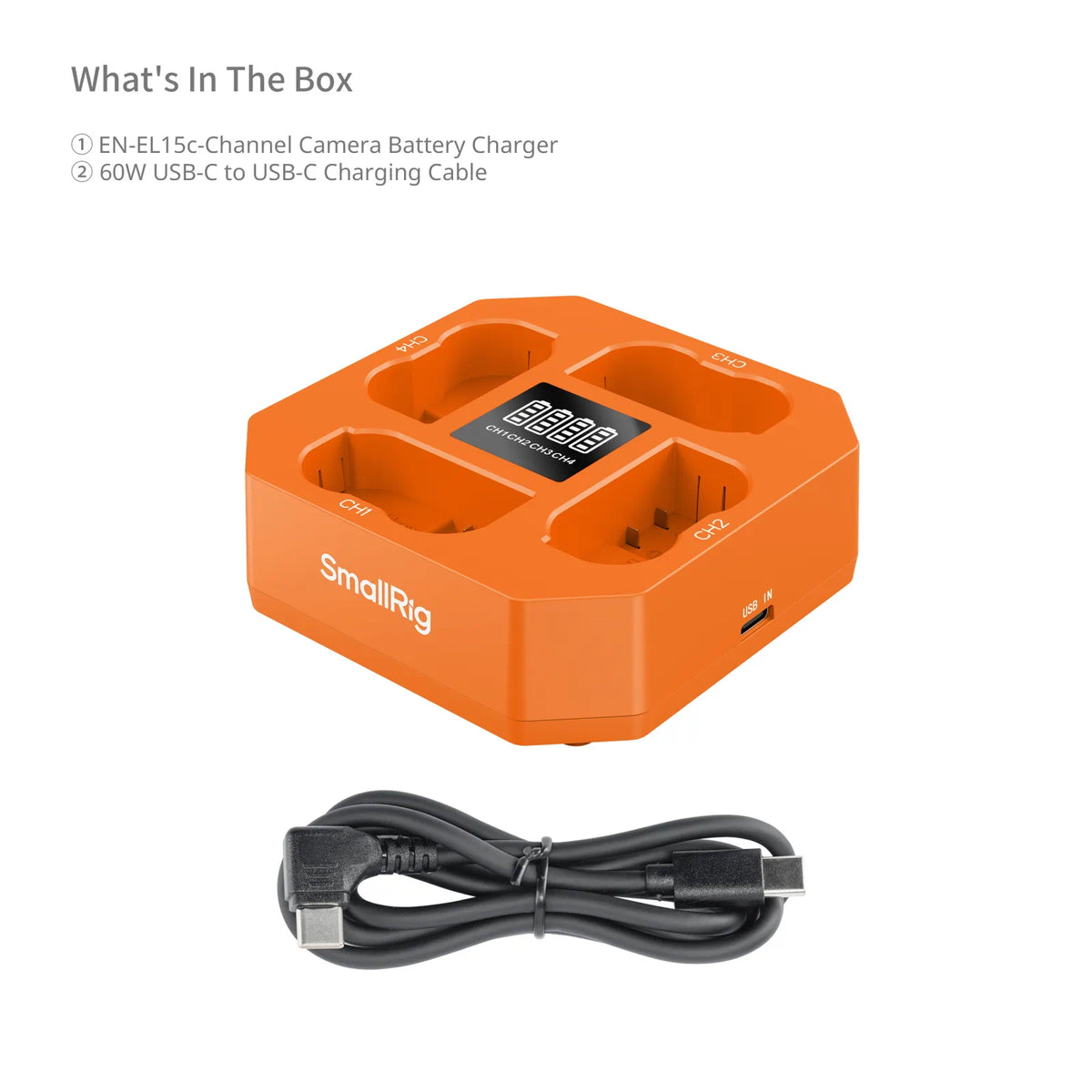

What’s in the Box

• SmallRig Four-Channel Camera Battery Charger for EN-EL15c 5747

• 65W-rated USB-C to USB-C charging cable

• User manual

• Guarantee card
