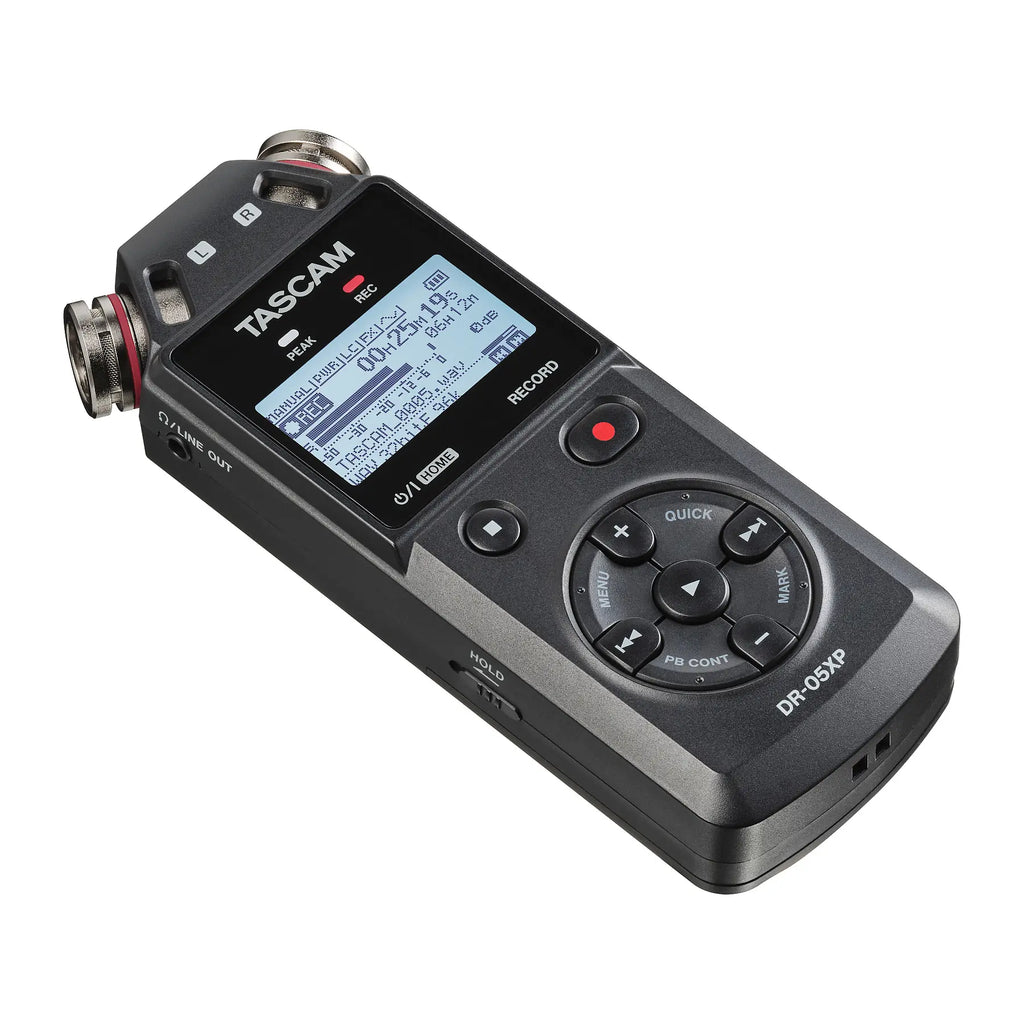

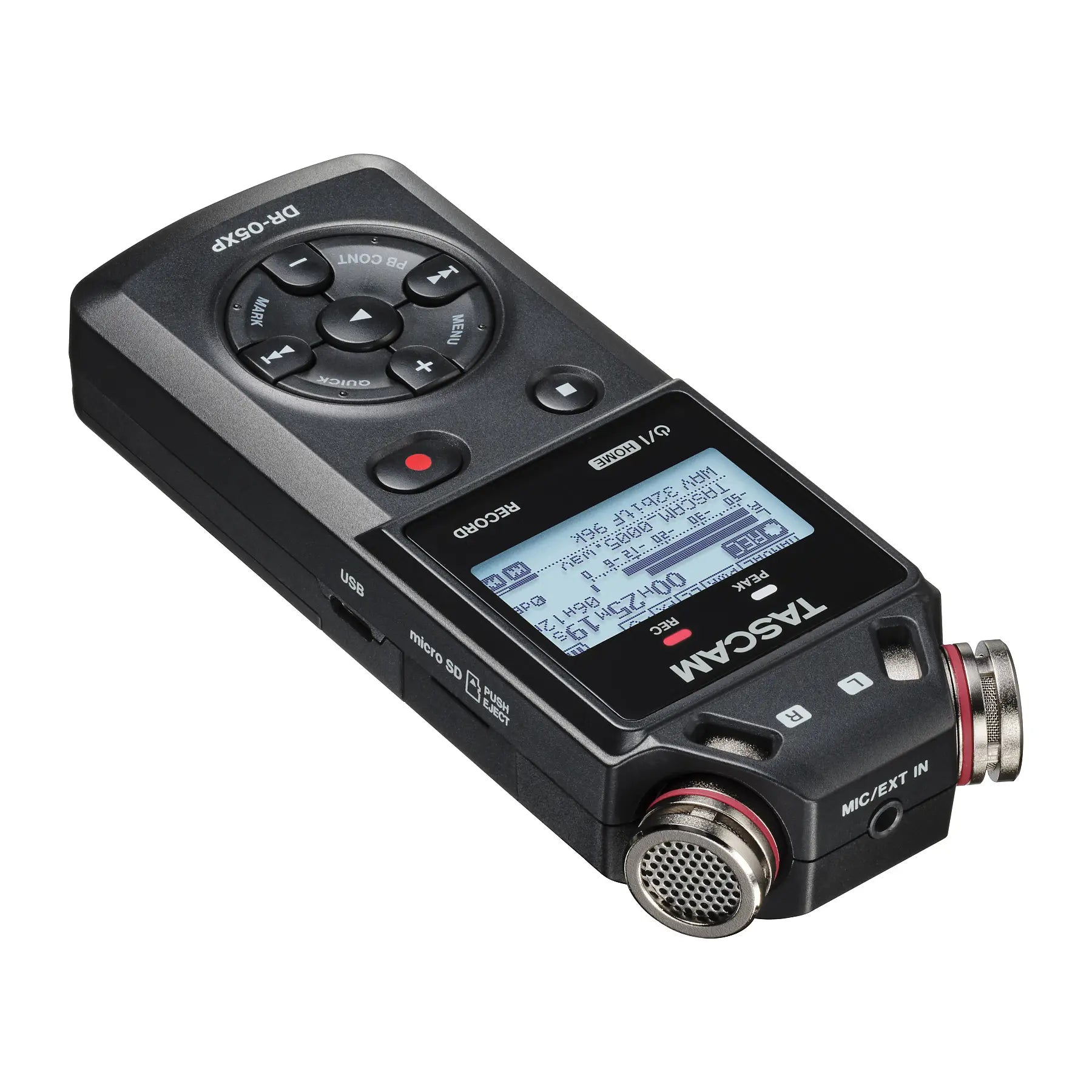

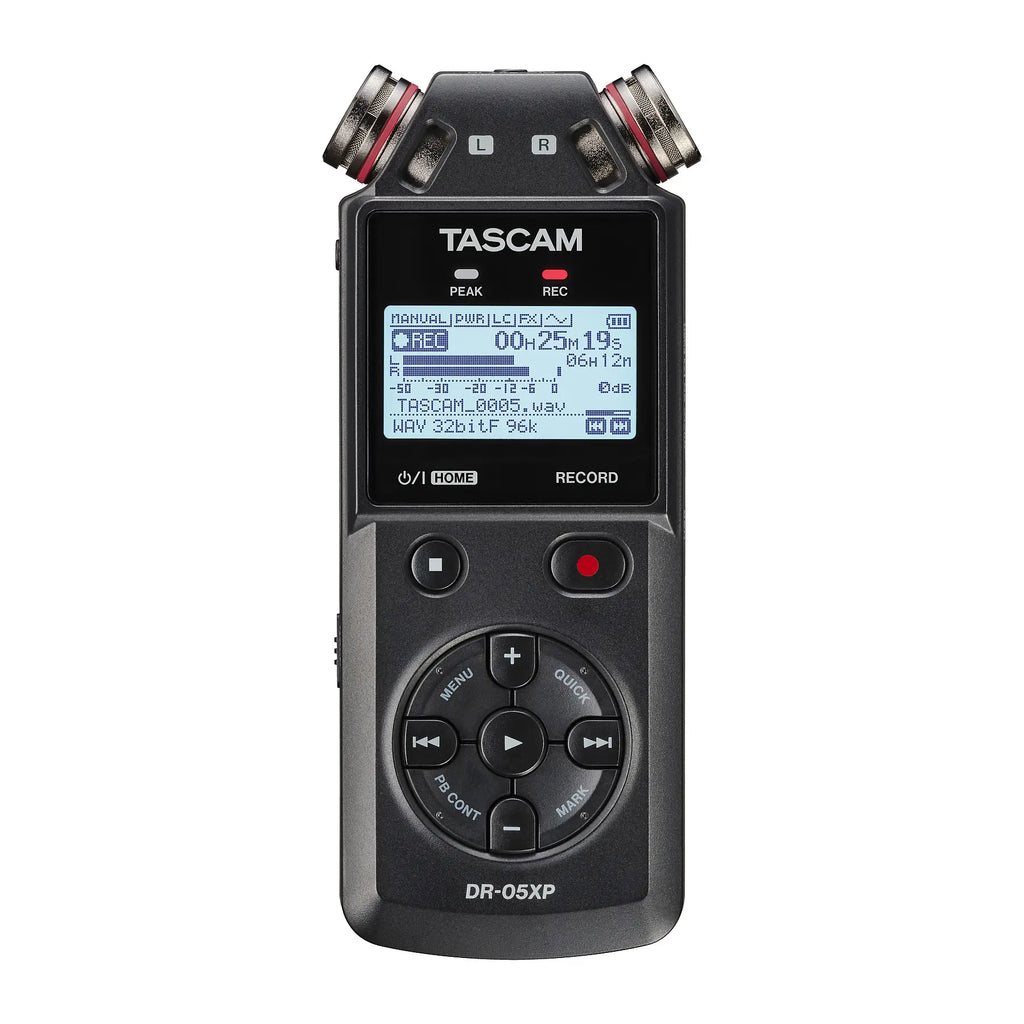

Tascam DR-05XP - Stereo Handheld Audio Recorder and USB Audio Interface

Tascam DR-05XP Stereo Handheld Audio Recorder & USB Audio Interface

Create professional-quality audio anywhere with the Tascam DR-05XP, a compact, one-handed handheld recorder built for musicians, videographers, podcasters, journalists, and field recordists. Featuring 32-bit float recording, built-in stereo condenser microphones, and USB-C audio interface functionality, the DR-05XP delivers clean, distortion-free recordings without the need to set levels—so you can focus on capturing the moment.

Designed by Tascam, the DR-05XP combines simplicity, reliability, and advanced audio technology in a truly portable form.

32-Bit Float Recording – Never Miss a Take

With 32-bit float recording, the DR-05XP virtually eliminates clipping and distortion, even when recording unpredictable or very loud sound sources. There’s no need to adjust gain levels—recordings retain full dynamic range and can be easily normalised in post-production.

Supported formats

• WAV/BWF: 32-bit float, 24-bit, 16-bit (44.1 / 48 / 96 kHz)

• MP3: 32–320 kbps (44.1 / 48 kHz)

Built-In Stereo Condenser Microphones

The integrated omnidirectional condenser microphones are always ready to capture high-quality stereo audio. With support for sound pressure levels up to 125 dB SPL, the DR-05XP handles loud environments such as concerts, rehearsals, and street recording without distortion.

Pocket-Sized Simplicity

• One-handed operation for fast recording

• Clear, backlit LCD display for easy navigation day or night

• Dedicated QUICK menu for instant access to key functions

From meetings and dictation to music and sound design, recording is fast and intuitive.

Portable Recorder & USB-C Audio Interface

The DR-05XP doubles as a 2-in / 2-out USB-C audio interface, allowing you to record directly into your favourite audio software on Windows or macOS. It can also function as a USB microphone, making it ideal for streaming, podcasting, and voice recording.

Ideal for Musicians & Creators

Packed with creative tools, the DR-05XP is perfect for songwriting, rehearsal capture, and practice:

• Built-in chromatic tuner

• Reverb effects (6 presets)

• Overdub and punch-in recording

• Dictation mode optimised for voice

Built for Field & Video Work

• Four selectable low-cut filters (40 / 80 / 120 / 220 Hz)

• Auto Recording mode starts recording when sound is detected

• Pre-record buffer (2 seconds) ensures nothing is missed

• Auto Tone output for easier audio-to-video syncing

• ¼" thread for tripods and microphone stands

Long Battery Life & Large Storage

• Up to 17.5 hours of operation using 2× AA batteries

• Supports microSD / microSDHC / microSDXC cards up to 512GB

• USB bus power or optional AC adapter supported

Key Features at a Glance

• Two-channel portable handheld audio recorder

• 32-bit float recording for distortion-free audio

• Built-in stereo condenser microphones (up to 125 dB SPL)

• 2-in / 2-out USB-C audio interface

• Over 17 hours battery life with AA batteries

• External mic/line input with plug-in power

• Auto recording, overdub, reverb, tuner, and dictation modes

• Compact, lightweight, and tripod-mountable

Technical Specifications

Recording & Playback

• Media: microSD / microSDHC / microSDXC (up to 512GB)

• Channels: 2 (stereo)

• File formats: WAV (16 / 24 / 32-bit float), MP3

Audio Inputs & Outputs

• Mic/Line In: 3.5mm stereo mini-jack (plug-in power supported)

• Headphone/Line Out: 3.5mm stereo mini-jack

• Built-in mono speaker (0.3W)

USB Audio

• USB-C (USB 2.0 High Speed)

• 2-in / 2-out interface, 24-bit / 44.1–48 kHz

Performance

• Frequency response: up to 40 kHz at 96 kHz sampling

• THD+N: ≤0.01%

Power & Physical

• Power: 2× AA batteries, USB bus power, or optional AC adapter

• Dimensions: 61 × 142 × 27 mm

• Weight: 174 g with batteries / 126 g without

• Operating temperature: 0–40°C

Why Choose the Tascam DR-05XP?

If you want reliable, professional-quality audio without complexity, the DR-05XP is a standout choice. With 32-bit float recording, excellent built-in microphones, and USB audio interface capability, it’s a powerful all-in-one solution for recording anything, anywhere.
